KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication

KQS-BG-M Wall-Mounted Multi-Parameter Sensor with IP65 Protection High Accuracy and RS485/RS232 Communication

สถานที่กำเนิด:

จีน

ชื่อแบรนด์:

KACISE

ได้รับการรับรอง:

CE

หมายเลขรุ่น:

KQS-BG-M

ติดต่อเรา
ขอคําอ้างอิง
รายละเอียดสินค้า
พารามิเตอร์ที่วัดได้:
ความสว่าง, อุณหภูมิ, ความชื้น, ความเข้มข้นของ CO2
ช่วงอุณหภูมิ:
-20 ถึง 50°C (อนาล็อก) / -40 ถึง 100°C (ดิจิตอล)
ช่วงความชื้น:
0-100% RH
ช่วง CO2:
0-5000 ppm
ระดับการป้องกัน:
IP65
ความแม่นยำ:
อุณหภูมิ: ±0.3°C; ความชื้น: ± 5% RH; คาร์บอนไดออกไซด์: ±(50 ppm+5%); แสง: ±4%
เงื่อนไขการชําระเงินและการจัดส่ง
จำนวนสั่งซื้อขั้นต่ำ
1 ชิ้น
รายละเอียดการบรรจุ
แต่ละหน่วยมีกล่องแยก กล่องทั้งหมดบรรจุในแพ็คเกจมาตรฐานหรือตามคำขอของลูกค้า
เวลาการส่งมอบ
5-8 วันทำการ
เงื่อนไขการชำระเงิน
L/C,D/A,D/P,T/T,Western Union,MoneyGram
สามารถในการผลิต
1,000 ชิ้น / ชิ้นต่อสัปดาห์ต่อรองได้
คําอธิบายสินค้า

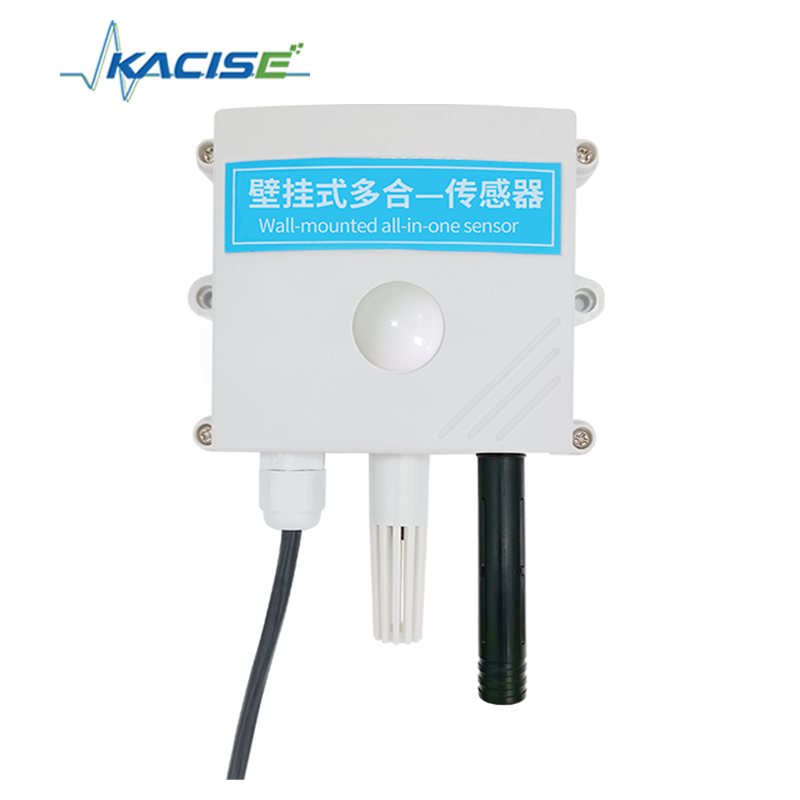

KQS-BG-M Wall-Mounted Multi-Parameter Sensor
The KQS-BG-M wall-mounted multi-parameter sensor is an integrated device designed for measuring environmental parameters such as illuminance, temperature, humidity, and CO2 concentration. It features a high-protection housing with an IP65 rating, offering resistance to rain and snow while maintaining good breathability.
The product adopts an industrial-grade microprocessor chip imported from the United States and a high-precision temperature and humidity sensing chip imported from Switzerland, ensuring excellent reliability, high accuracy, and strong interchangeability. The sensor supports RS485/RS232 communication interfaces and standard Modbus protocol, making it easy to connect with other data acquisition systems. It can also output up to 4 channels of analog signals (current and voltage outputs). Digital outputs support Modbus or ASCII protocols, enabling secondary development with stable performance and easy installation.
Product Features
  • Factory dual calibration ensures high measurement accuracy
  • Secondary linear calibration provides stable and reliable data output
Technical Parameters
Item Specification
Range Temperature: -20-50°C (analog output) -40-100°C (digital output)
Humidity: 0-100% RH
CO₂: 0-5000 ppm
Light: 0-200,000 Lux (indoor) 0-65,535 Lux (outdoor)
Accuracy Temperature: ±0.3°C
Humidity: ±5% RH
CO₂: ±(50 ppm + 5%)
Light: ±4%
Resolution Temperature: 0.1°C
Humidity: 0.1% RH
CO₂: 1 ppm
Light: 1 Lux
Power supply 5 V or 9-30 V wide-voltage optional
Signal output Current: □ 4-20 mA □ 0-20 mA
Voltage: □ 0-2.5 V □ 0-5 V □ 1-5 V
Serial: □ RS485 / RS232 optional
Dimensions
KQS-BG-M Wall-Mounted Multi-Parameter Sensor dimensions and installation diagram
