ชื่อแบรนด์:
SIEMENS
หมายเลขรุ่น:

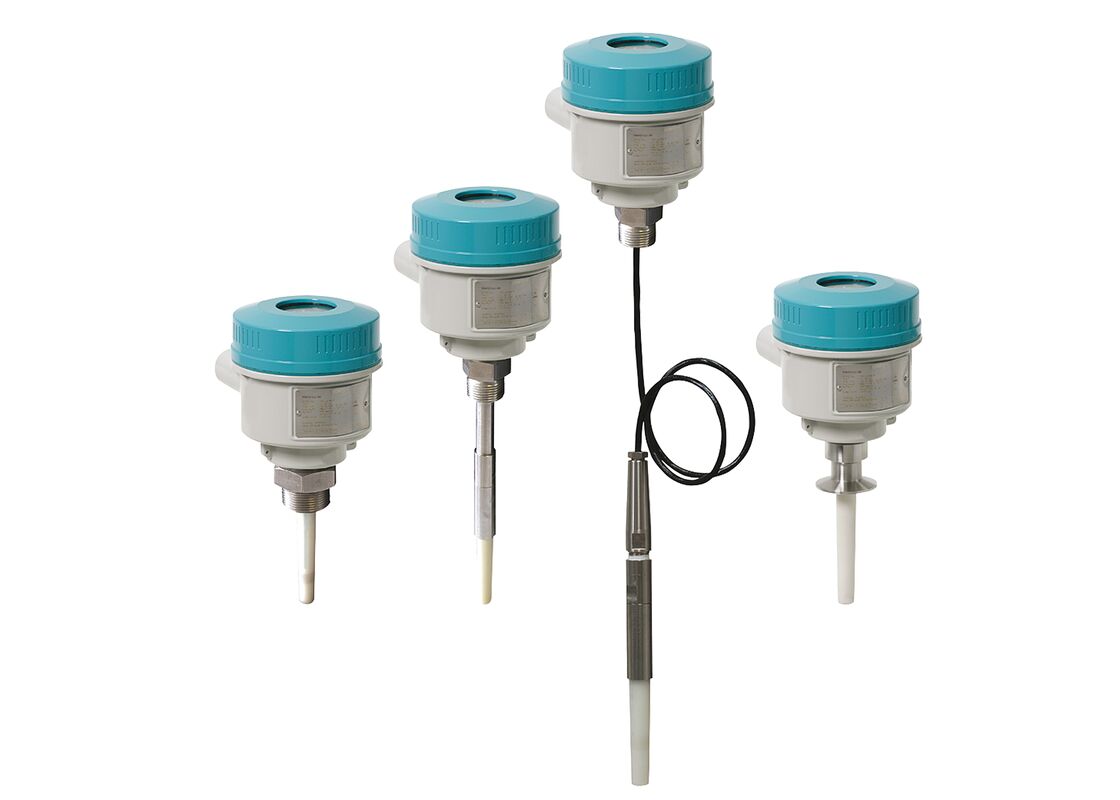

CLS200 - ดิจิตอล
| Measuring Principle | Inverse frequency shift capacitive level detection |
| Measured Variable | Change in picoFarad (pF) |
| Output Signal | Solid-state output, galvanically isolated |
| Max. Switching Voltage | 30 V DC / 30 V peak AC |
| Max. Load Current | 82 mA |
| Ambient Temperature | -40 to +85°C (-40 to +185°F) |
| Process Temperature | -40 to +85°C without thermal isolator -40 to +125°C with thermal isolator |
| Process Pressure (Rod) | -1 to +25 bar g (-14.6 to +365 psi g) |
| Process Pressure (Cable) | -1 to +10 bar g (-14.6 to +150 psi g) |
| Dielectric Constant | Minimum 1.5 |
| Degree of Protection | IP65/Type 4/NEMA 4 (optional IP68) |
| Power Supply | 12-30 V DC (Standard), 12-24 V DC (Intrinsically Safe) |
| Communication | PROFIBUS PA (IEC 61158 CPF3 CP3/2) |
| Certifications | CSA, FM, CE, UKCA, RCM, ATEX, and various explosion-proof ratings |
| Part Number | Description |
|---|---|
| 7ML1830-1JB | Cable Gland, 1/2" NPT, explosion proof |
| 7ML1830-1JC | M20 x 1.5 cable gland (general use and dust explosion protection) |
| 7ML1830-1JD | Cable Gland, M20 x 1.5 HF, (EP) |
| 7ML1830-1JE | Test Magnet |
| 7ML1830-1JF | Amplifier / Power Supply Digital Version |
| 7ML1830-1JK | LCD Display for CLS 200, Digital |
| A5E01163672 | Spare Synprene gasket, enclosure version, for IP65 versions |
| A5E01163673 | Spare Silicone gasket, enclosure version, for IP68 version |
| A5E01163674 | CLS200/CLS300/LC300 Spare aluminum blind lid, for standard versions |
| A5E01163676 | CLS200/300 Spare aluminum lid with window |
| A5E01163677 | Kit, sensor for cable units, PPS, standard, Viton |
| A5E01163678 | Kit, sensor for cable units, PPS, digital, Viton |
| A5E01163679 | Kit, sensor for cable units, PPS, standard, FFKM |
| A5E01163680 | Kit, Sensor for cable units, PPS, Digital, FFKM |
| A5E01163681 | Kit, Sensor for cable units, PVDF, Standard, FKM |
| A5E01163682 | Kit, sensor for cable unit, PVDF, Digital, FKM |
| A5E01163683 | Kit, sensor for cable unit, PVDF, Standard, FFKM |
| A5E01163684 | Kit, sensor for cable unit, PVDF, Digital, FFKM |
| A5E01163685 | Spare, 316L stainless steel mounting bracket |
| A5E01163686 | Spare, PROFIBUS connector, IP65 versions only |
| A5E03251681 | Kit, CLS200 standard, transmitter |
