ชื่อแบรนด์:
Honeywell
ได้รับการรับรอง:
ce
หมายเลขรุ่น:
434, 435, 437

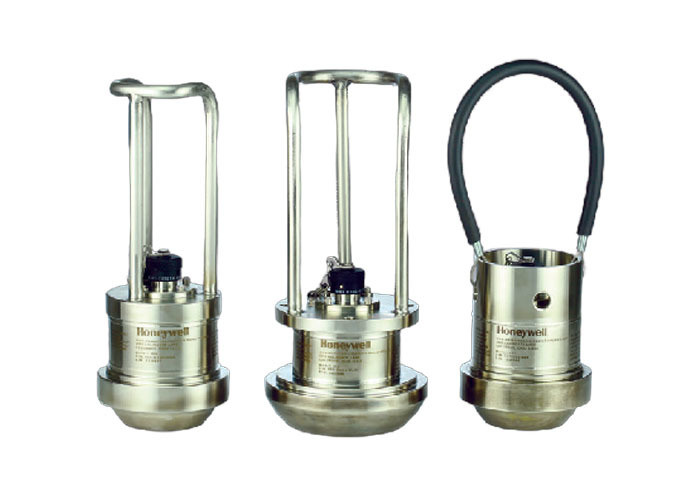

Models 434/435/437 Wing Union/Hammer Union Pressure Sensors are engineered for demanding oil and gas applications including stimulation and circulation systems. Featuring an all-welded stainless steel construction with integrated sensor diaphragm and wing union fitting, these transducers provide superior hermetic integrity and minimize media leakage compared to multi-piece designs.
Acidizing, choke manifold, fracturing and cementing, measurement while drilling (MWD), mud pumps/mud logging, new well development and extraction, oil and gas drilling, service and cement trucks, standpipe, stimulation, well head measurement.
| Characteristic | Parameter |
|---|---|
| Pressure ranges (Models 435/437) | 0-20,000 psi; 0-1,350 bar (working pressure limited to 15,000 psi/1,000 bar) |
| Pressure ranges (Model 434) | 0-20,000 psi; 0-1,350 bar |
| Accuracy | High accuracy: ±0.1% FSS (Model 435); Standard accuracy: ±0.2% FSS |
| Calibration | Standard 5-point calibration; 10/20 point options available |
| Output | 4-20 mA, two-wire |
| Resolution | Infinite |
| Characteristic | Parameter |
|---|---|
| Temperature, operating | -40°C to 125°C [-40°F to 257°F] |
| Temperature, compensating | -40°C to 85°C [-40°F to 185°F] |
| Temperature effect, zero | <±0.018% FSS/°C [0.01% FSS/°F] |
| Temperature effect, span | <±0.018% reading/°C [0.01% reading/°F] |
| Temperature effect, sealing | IP68 / NEMA 6P |
| Characteristic | Parameter |
|---|---|
| Media | Corrosive and abrasive service, Inconel® X-750 or NACE-compliant Inconel® 718 |
| Overload, safe | 150% rated full scale pressure or limit of Weco® 1502 fitting |
| Overload, burst | 250% rated full scale pressure or limit of Weco® 1502 fitting |
| Pressure port | Weco® 1502, 2002, and 2202 wing union, 51 mm [2 in] pipe, male sub end |
| Weight (approx.) | 4.85 lb [2.2 kg] |
