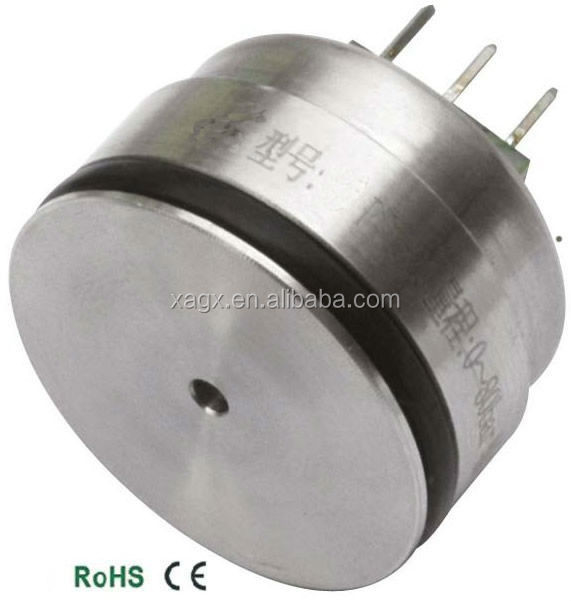

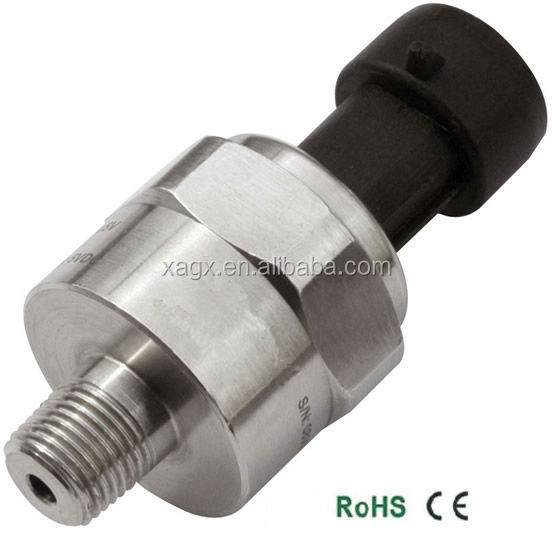

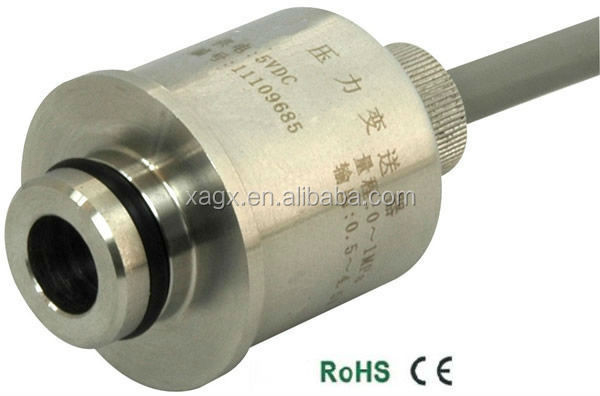

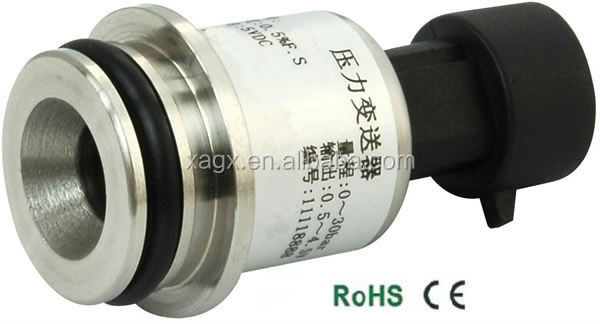

Thermostable heat resistant gas liquid auto pressure sensor
1. Parameter
|
Spec. |
Value |
||||
|
Pressure range |
0~2bar.......600bar |
||||
|
Load pressure |
2 times nominal value pressure (1.5X) |
||||
|
Rupture pressure |
3 times nominal value pressure (3X) |
||||
|
Accuracy |
±1,2,2.5%F.S |
||||
|
Stability |
Typical value 1%F.S/year, Max. 2% F.S |
||||
|
Operating temperature |
-40°C~125°C |
||||
|
Compensation temperature |
-10°C~80°C |
||||
|
Medium compatibility |
All Caustic Medium Compatible with 1Cr18Ni9Ti |
||||
|
Electrical performance |
3wire system |
||||
|
Output signal |
10~24V dc |
0.5~4.5V |
1~3V |
||
|
Power supply |
0~5V |
10~24V dc |
5Vdc |
8~30Vdc |
|
|
Load pressure |
(U-10)/0.02(Ω) |
> 1000kΩ |
|||
|
Insulation |
> 100M Ω@50V |
||||
|
Electric strength |
500V@60 second |
||||
|
Vibration/Impact |
10g/5~2000Hz, axes X/Y/Z20g sine 11ms |
||||
|
Pressure durable |
2×106pressure circle @25°C |
||||
|
Electrical connection |
Packard ,DJ7032-2.3,waterproof |
||||
|
Pressure port |
M14×1.5, M12×1,G1/2 |
||||
|
Pressure type |
G |
Response time: 10ms |
|||
|
EMI/EMC |
EMI: EN50081-1/-2; EMC: EN50082-2 |
||||
|
Certification |
CE,ROHS | ||||
2. Electronic interface and signals definition
|
|
|||||
|
Electric connection |
|||||
|
2 wire |
3 wire |
4 wire |
Cable |
Hirsmann |
Air plug |
|
Power |
Power |
Power+ |
Red |
1 |
1 |
|
Output |
Output |
Output+ |
Blue |
2 |
2 |
|
|
Power ground |
Power - |
Black |
3 |
3 |
|
|
|
Output- |
Green |
|
|
|
Shielded |
shielded |
Shielded |
Yellow |
4 |
|
3. Application
1). Construction machinery
2). Automotive engine
3). High pressure common rail engine
4). High temperature and cold environment
5). Sham Tseng oil pressure measurement
6). Boiler pressure testing
7). Natural gas storage device
8). Hydraulic lubrication
4. Feature
1). 0.1, 0.25, 0.5%F.S
2). Sputtering film core
3). Resistant to high temperature of 150°C
4). Fully welded, no “O”-ring
5). A variety of connector and pressure port
6). Non polarity two wire current output
7). DC and AC output
8). Intrinsically safe, explosion proof, CE certificate
9). RoHS compliant
