GXPS series water tank level controller system with accuracy ±0.25%

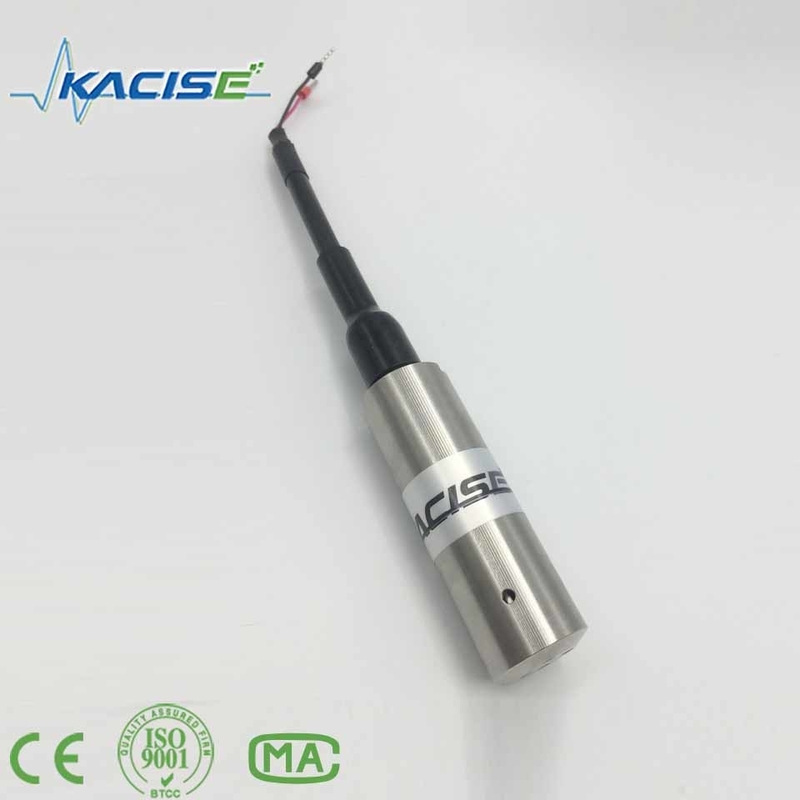

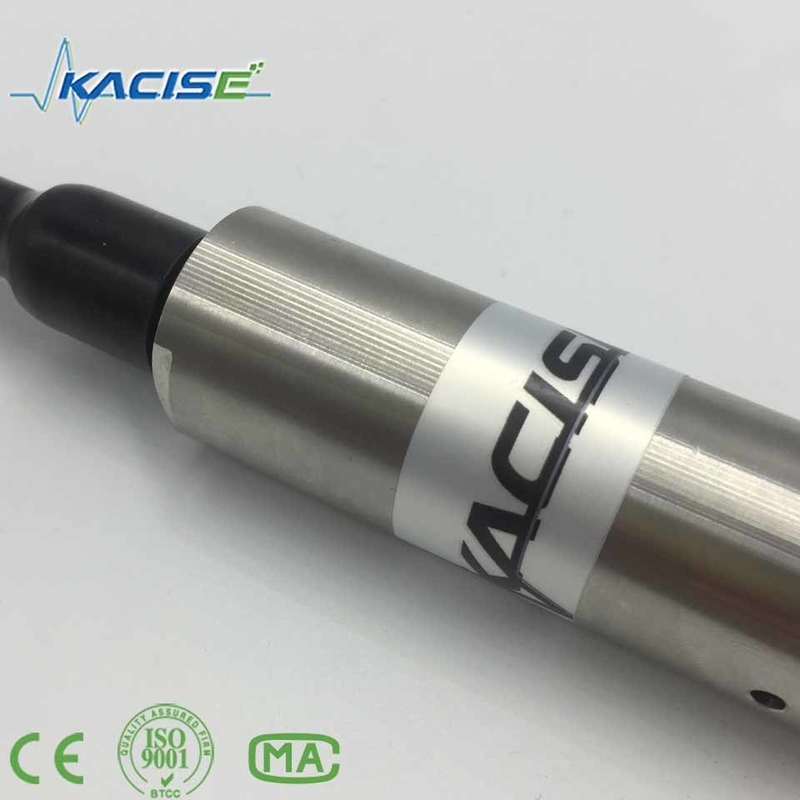

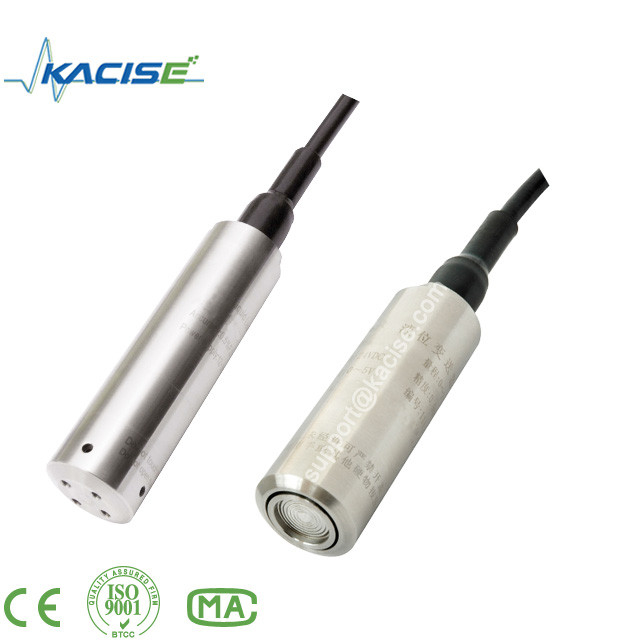

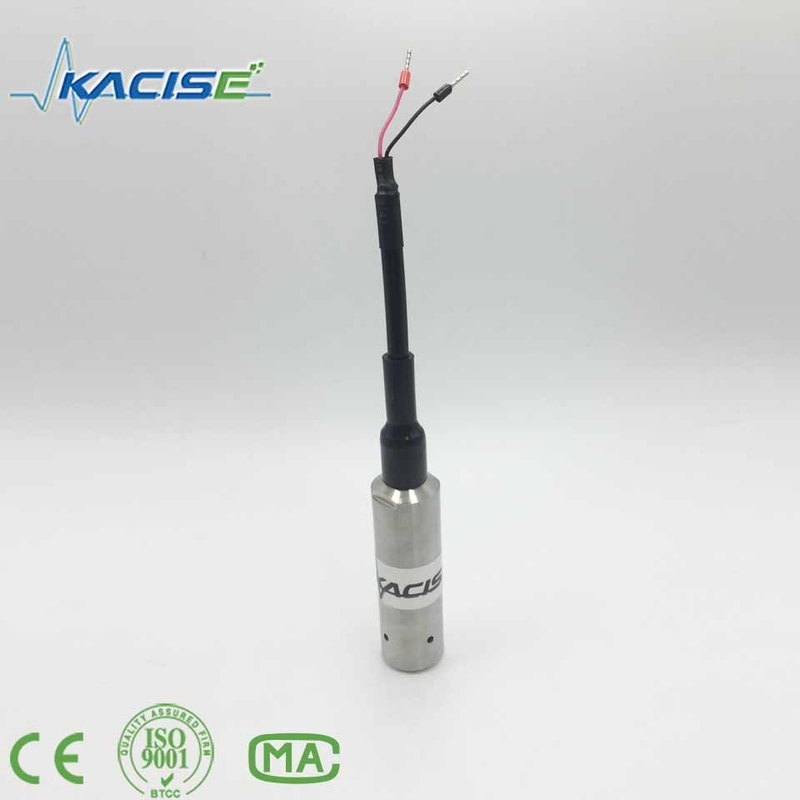

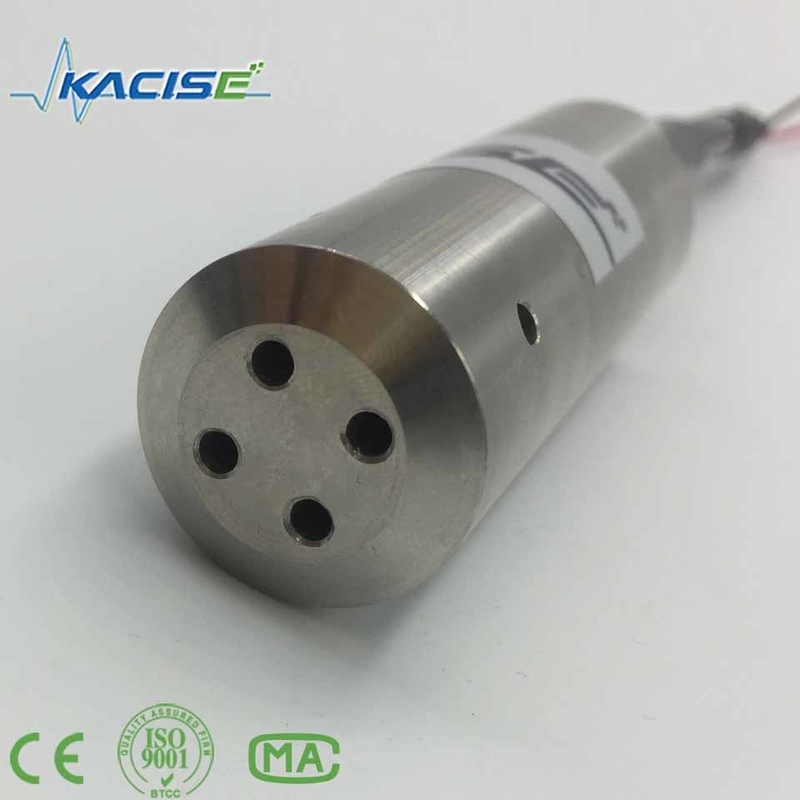

GXPS series water tank level controller system

Feature

Diffused-Silicon oil filled core

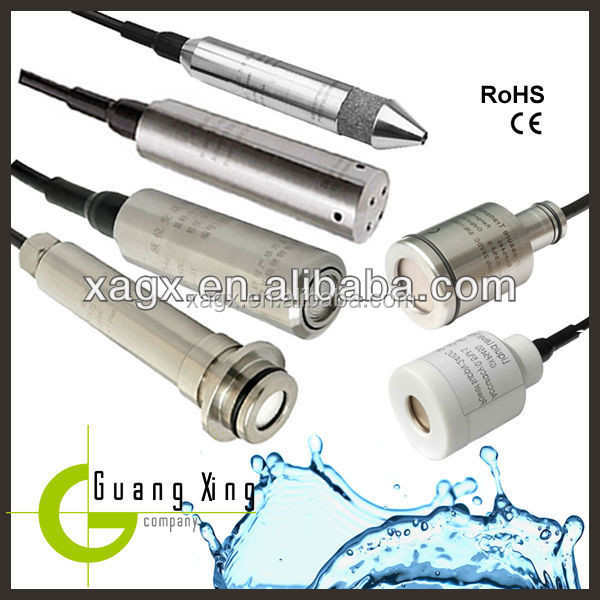

Seven kinds of structure to satisfy different users

Easy to use with submersible measuring

Multiple pressure range(1mH2O-500mH2O)

3 kinds Signal output(4-20mA, 0-5V, 0-10V)

2 wire and 3 wire connection selectable

Non-polar 2 wire system current output

lightning rating class A

Intrinsically safe explosion proof, Isolation explosion proof,

CE

Application field

Deep well level measuring

Hydrologic measurement for river, lake, sea

Sewage treatment

Muddy level measuring

Fluid reservoir level measuring

Water-saving irrigation

Circulating liquid consumption monitoring

Diversion works

Introduction

GXPS series liquid water tank level sensor normal level transmitter is a special structure and use of products, high precision, small size, good stability, which with abrasion, oil, acid and alkali resistant, high-intensity air conductivity cable to meet a variety of special-purpose level measurement site.Widely use sewage river water processing, ditch large rivers reservoir lakes coast geology hydrological monitoring

Passed the intrinsically safe mold, explosion proof certificate, and CE

Measuring various fluid for the user choice.

Electronic interface and signals definition

Parameter of GXPS series liquid water tank level sensor

Ordering information of GXPS series liquid water tank level sensor

GXType-Range-Output-Accuracy-Power-Structure-Cable length-Package-Others

1. Type: PS400 normal level transmitter
2. Range: 1m.500m= the upper limitation of the range
3. Output: A=4~20mA, V0=0~5Vdc. V1=0~10Vdc
4. Accuracy: 0.25=±0.25%F.S, 0.5=±0.5%F.S, 1.0=±1.0%F.S
5. Power: 24VDC,
6. Structure:S1 =universal type, S2=thread mounted, S3=Submersible & thread type, S4=Sediment prevention, S5=minor diameter, S6=antifouling, S7 =High density
7. Cable length: XXm=XX meter 1-150m
8. Package: Bb, Foam
9. Others: C=common grade(-40°C~85°C) , A=advanced grade(-40 °C~125 °C)

In order to choose the suitable products for you, please send us below information with the feedback.

1. pressure range
2. accuracy
3. output signal
4. power supply voltage
5. pressure port
6. elec. connection
7. medium
8. temperature range

9.cable length
