low price high accuracy liquid level transmitter

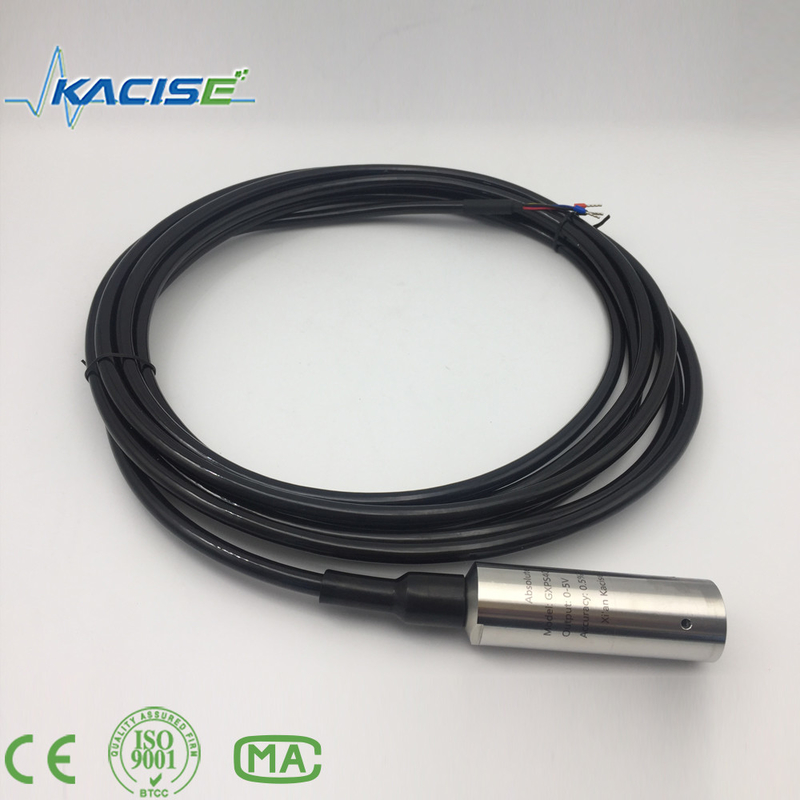

GXPS series submersible fuel level transmitter

Main parameters

pressure range: 0~0.5......50H2O
output signal: 4~20mA, 0/1~5V, 0~10V
accuracy: ±0.25, ±0.5, ±1.0%F.S
powew supply: 10~30Vdc 6~24V 11~30Vdc
Application

Hydrological monitoring
Highly corrosive liquid level measurement
Explosion site
Water level measurement

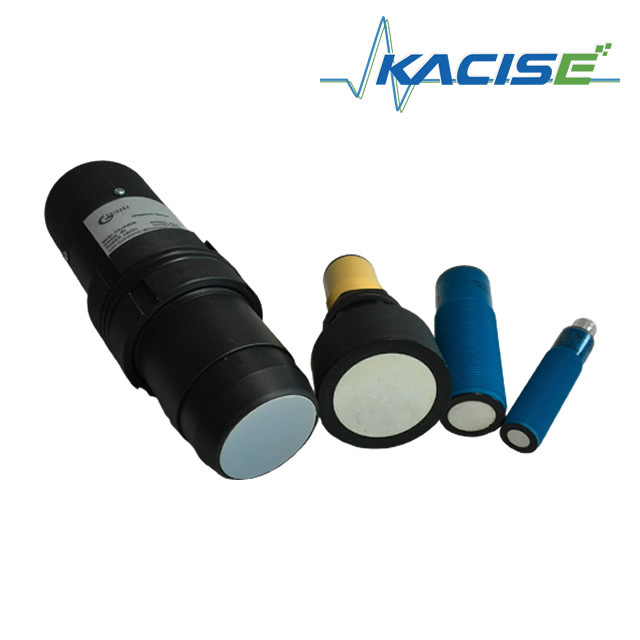

High quality long distance ultrasonic short blind zone GXUM series intelligent liquid level transmitter

main parameters
measure range: 5m,10m,15m,20m,30m,40m,50m,60m
Measurement accuracy: 0.25%-0.5%
Analog output: 4wires4~20mA/750Ω load
2wires4~20mA/250Ω load
Power supply: Standard configuration 24VDC
optional 220V AC+15% 50Hz
optional 12VDC or customerized power supply
communication: Optional 485,232communication(Manufacturer agreement)
Protection grade: Display instrument IP65,transducer IP68

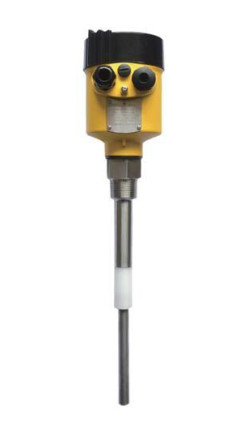

Guided wave radar level transmitter

Main parameters

Measuring range: 10 meters
Process pressure: -0.1 ~ 0.3Mpa
Accuracy: ± 5mm
Protection class: IP67
Frequency Range: 26GHz
Explosion levels: Exib Ⅱ CT6 Gb
Signal output: 4~20mA/HART (two wire / four-wire), RS485/Mod bus optional

Application

temperature, pressure, slightly corrosive liquids

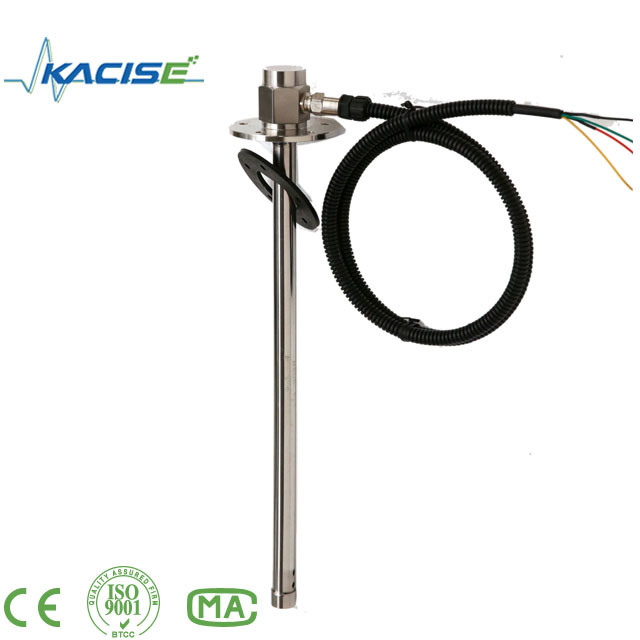

 2015 new stainles steel Economical magnetostrictive fuel liquid level transmitter OEM

Main parameters
Power supply: 24V DC
Measure range: 80~5000mm (Null point can re-mark by USB encoder)
Output: 0~5V or 0~10V 0~20mA or 4~20mA RS485Modbus
Operating Temp: -40°C~+85°C
Temp. coefficient: ≤0.007%F.S/°C

GXRS fuel level sensor for truck
Main parameters
Material: 304 stainless steel
Length range: 100mm~2000mmm
Rated Power: 125mW
Rated Current for alarm switch: 500mA
Precision Range: 10-40mm
Operating Temperature: -40℃~+85 ℃
Protection Grade: IP67

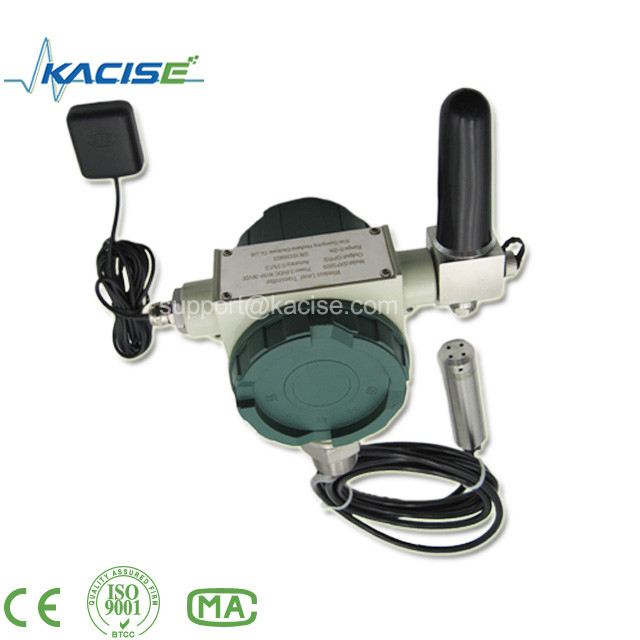

 High quality Remote Wireless Pressure Transmitter

Main parameters

measure range: 0~3m diesel

measure precision: 0.5%F.S

power supply: 3.6VDC battery or 10VDC~35VDC external power supply

Defend Grade: IP65

Interface Type: NPT1
