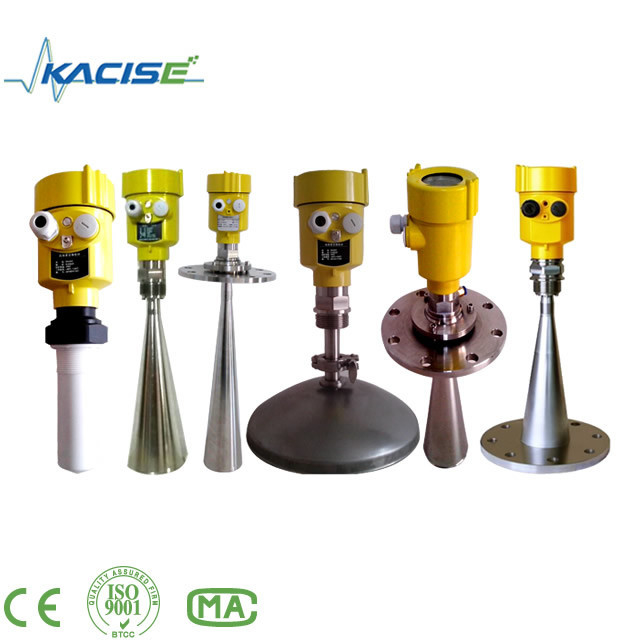

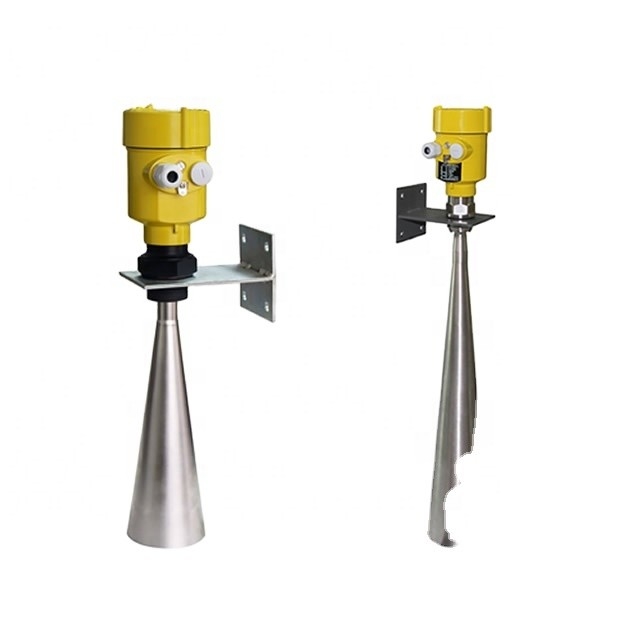

KLD Series HART Radar Liquid Level Meter with signal output 4 - 20mA and frequency range 26GHz

1. Technical Features


The KLD series liquid level meter adopts 26GHz transmission frequency and thus has the following features:

• Small beam angle, concentrated energy, strong anti-interference ability, higher measurement accuracy and reliability;
• Small antenna size, easy for installation and addition of antenna protection equipments like dust-proof cover;
• Light in weight, easy for installation;
• The measurement range can be up to 70 meters, can measure the water level of large reservior, etc.;
• Adopts multiple output port to work with signal collection system;
• Adopts pulse working method. The transmmission power of the level meter is very low, almost no harm to both human and environment.

2. Technical Specifications

	KLD-2608 Application: river, lake, shoal, reservoir Measuring range: 30 meters Process connection: threaded G1½ʺ A/bracket/flange Process temperature: -40 ~ 100℃ Process pressure: normal pressure Precision: ±3mm Frequency range: 26GHz Protection level: IP67 / IP65 Power supply: DC (6-24V)/four-wire Signal output: RS485/Modbus protocol Onsite display: Optional Outer shell: aluminum/plastic
	KLD-2609 Application: river, lake, shoal, reservoir Measuring range: 70 meters Process connection: threaded G1½ʺ A/bracket/flange Process temperature: -40 ~ 100℃ Process pressure: normal pressure Precision: ±3mm Frequency range: 26GHz Protection level: IP67 / IP65 Power supply: DC (6-24V)/four-wire Signal output: RS485/Modbus protocol Onsite display: Optional Outer shell: aluminum/plastic


Cases


Product Flow

All our products are produced by experienced workers, and tested at least 3 times before shipping out to make sure the quality.


Packaging & Shipping

Each unit has individual box and the boxes are packed into one big carton, upmostely making sure that the goods are still in nice conditions when arriving at our esteemed customers.



Certificates



Our Sevices

• Quality is the most important issues;
• We provide one-stop service for electronic goods;
• We offer cost effective and competitive price to help save cost and bring big benefit on our esteemed customer side;
• Quick and accurate delivery and flexible logistics support;
• Support customization, can do the OEM/ODM according to the exact requirements from our extinguished customers.
