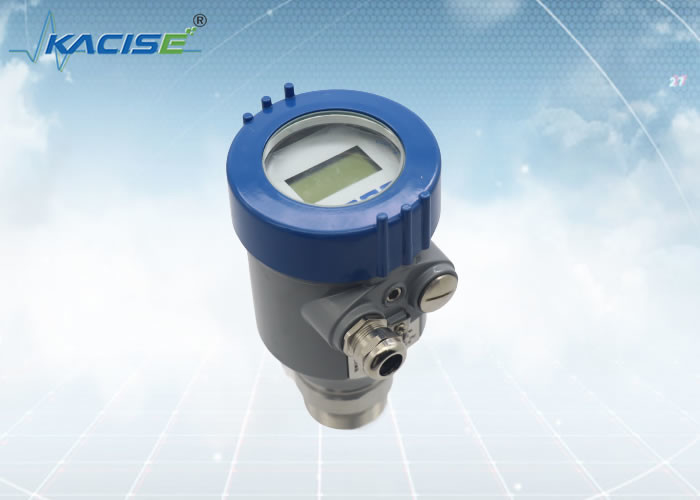

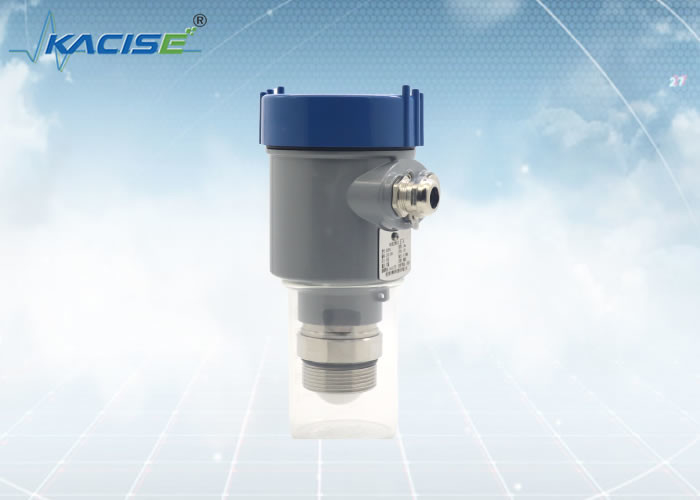

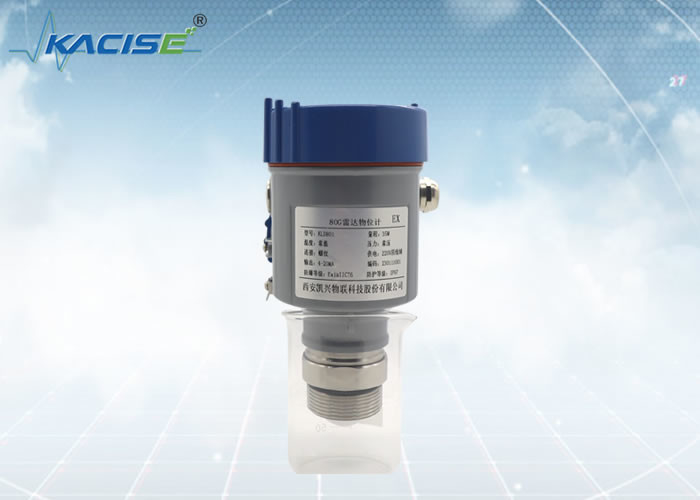

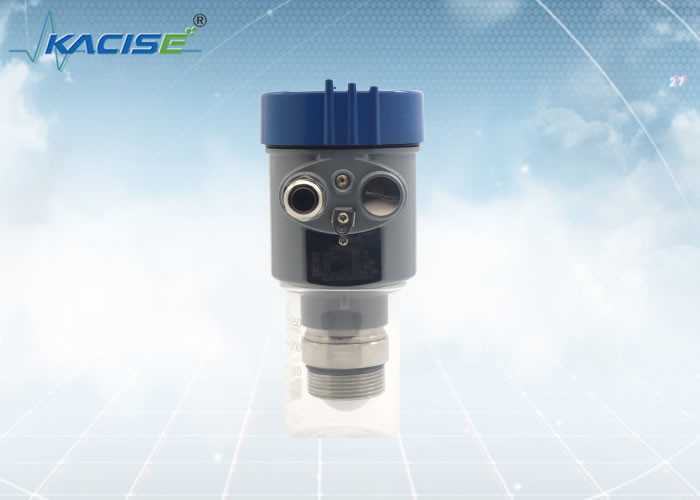

KLD801 80G FM Radar Level Sensor
Introduction
KLD801 series 80G FM radar level sensor supports four-wire and two-wire applications. Multiple models, the maximum range of the product can reach 100m, and the blind zone can reach 5cm.
Due to its higher operating frequency and shorter wavelength, it is suitable for non-corrosive liquid applications, and the working method of transmitting and receiving electromagnetic waves through the lens has unique advantages in normal temperature and pressure environments. The instrument adopts screw fixing method, which makes the installation convenient and simple.
Feature
|
KLD801
|
Medium: liquid, non-corrosive Measuring range: 0.05m～10/20/30/60/100m Process connection: G1½A / 1½NPT thread Process temperature: -40～80℃ Process pressure: -0.1～0.3 MPa Antenna size: 32mm lens antenna Antenna material: PTFE Accuracy: ±1mm Protection class: IP67 Center frequency: 80GHz Launch angle: 3° Power supply: Two-wire /DC24V Four-wire system/DC12~24V Four-wire system/AC220V Casing: aluminum/plastic/stainless steel Signal output: two-wire /4...20mA/HART protocol Four-wire system: 4...20mA/ RS485 Modbus |
Standard thread dimensions table chart
Product Dimension
Unit in mm:
Installation Method
Thread installation
