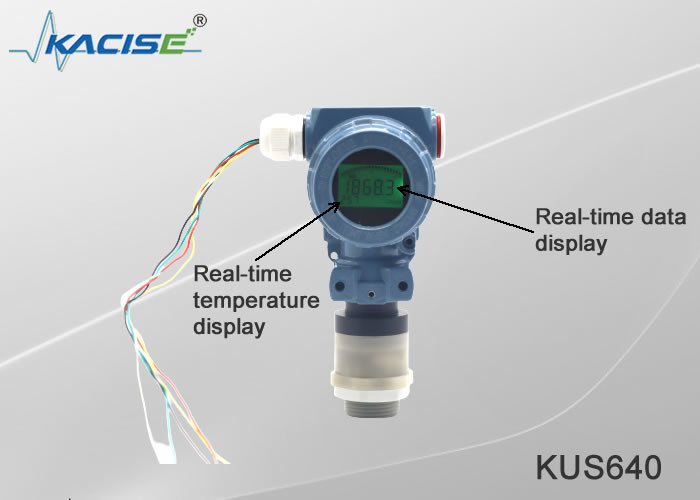

KUS640 Ultrasonic Level Sensor With Display fire water system electrical connections management platform
Product overview
KUS640 series intelligent ultrasonic level gauge/level sensor is a level gauge product with on-site display and 4-20mA remote transmission 485 remote transmission launched by our company.
Product Features
Application
KUS640 series is used to indicate and monitor the changes of water pressure/water level value at the installation site, and upload the real-time data to the centralized management platform through the built-in wireless transmission module, which is convenient for users to manage intelligently and centralizedly. It is mainly used in the following industries:
• Fire water system • City water supply
• Sewage treatment • Long-distance heating
• Food industry • Chemical, energy
Technical parameter
| Enter | |
| Measured variable | liquid level, material level |
| Measuring range |
150mm-1000mm(Can be customized according to demand) |
| Output | |
| Comprehensive accuracy | RS485/4-20mA,±1%FS/ 0.15℃ |
| Temperature compensation | -10℃～70℃ |
| Vibration effects | < ± 0.05％/g,500Hz in all directions (according to IEC 68-2-64) |
| Rated conditions Environmental conditions | |
| ambient temperature | -25～+85℃ |
| Storage temperature | -40～+85℃ |
| Protection class | IP65 ,Complies with EN 60529 |
| Electromagnetic Compatibility | EN 61326/A2 Appendix A (2001 ) |
| Display and control | |

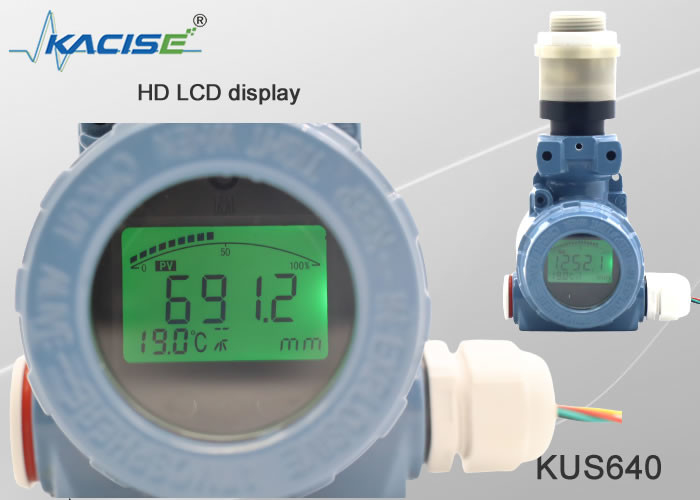

| show | SFTN liquid crystal, green backlight, 5-digit display. |
| limit value | Free settings |
| Parameter settings | Use 3 buttons |
| Unit | mm,The default unit is m. |
| Weight | About 1.35kg |
| Materials of non-wetted parts | |
| Joint | 1NPT,Stainless steel, length 20mm (material and joint specifications can be customized according to customer requirements). |
| Electrical connections | Make waterproof connectors, air vent cable entries according to EN 175301-803A |
| Measurement period | ≤default 200ms, user set |
Selection Tips: For special requirements, please contact our company and indicate it in the order.
Precautions:
1. If you need to calibrate the instrument, please contact our company. Non-professionals are not allowed to calibrate the instrument.
2. When calibrating the watch, please turn on the watch first, and then calibrate after 1 hour of constant temperature.
Order information
| KUS | Model | Output | Range | Describe | |
| 640B | Product series model | ||||
| Custom made | |||||
| --- | Independent display header without remote transmission | ||||
| 4-20mA | 4-20mA remote transmission | ||||
| RS485 | RS485 remote transmission (default) | ||||
| XXX mm | XXX mmIt means the maximum measurement distance is 1m-50m can be customized | ||||
| YYYmm | YYY is the length of the split order cable, the default is 1.2 meters | ||||
| KUS | 650 | 4-20mA | 3000mm | ||
