GXPS100

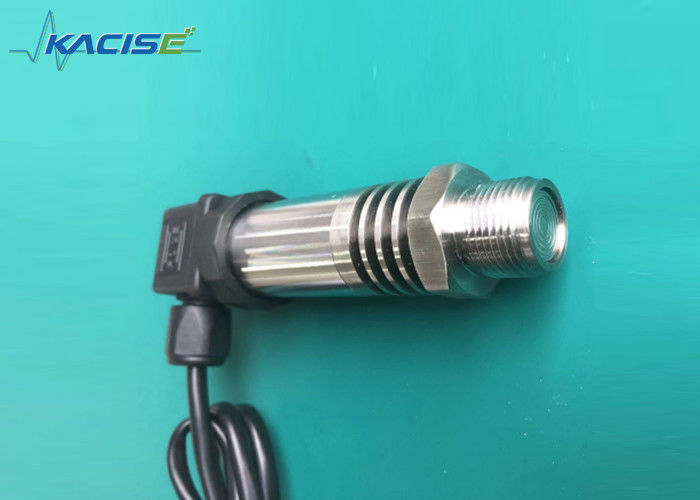

Hirschman connector water pipe pressure sensor water tank pressure transmitter MEMS diaphragm 4-20mA output 24V input
DC&AC output
Accuracy: 0.5%F.S
Import high quality core
Non-polarity 2 line current output
Various connector and pressure port
Multiple pressure range and output signal
CE certificate, intrinsically safe prevent explode
Application
Petrochemical
Vessel pressure
Pipeline pressure
Gas storage facility
Refrigerating machine
Hydraulic and lubrication
Industrial Process Control
Constant pressure water supply
Introduction
The working principle of the pressure sensor is that the pressure of the measured water pressure directly acts on the diaphragm of the sensor, so that the diaphragm produces a micro displacement proportional to the water pressure, so that the resistance value of the sensor changes, and the electronic circuit detects the change, and converts a standard measurement signal corresponding to the pressure.
GXPS100 Series pressure transmitter is a high-volume, civil and industrial use, cost-effective products. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive liquids and gases.
The product uses 1Cr18Ni9Ti stainless steel structure, import the internationally famous brand of diffusion of oil-filled pressure core body, dedicated sensor instrumentation amplifier circuit which can facilitate to calibrate its zero and full scale.
Dimensions in mm
Parameter
| Spec. | Value | |||||
| Pressure range |
0~0.2MPa...60MPa 2bar…600bar 29psi…8700psi 20000MmH20…6118000mmH2O 1.97atm…592atm |
|||||
| Load pressure | 1.5 times nominal value pressure (1.5X) | |||||
| Rupture pressure | 3 times nominal value pressure (3X) | |||||
| Accuracy | ±0.5%F.S(PT 300 or MARS for higher accuracy are available) | |||||
| Stability | Typical value 0.25%F.S, Max. value: 0.4%F.S | |||||
| Operating temperature | -40°C~120°C | |||||
| Compensation temperature | -10°C~70°C | |||||
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |||||
| Electrical performance | 2 wire system | 3 wire system | ||||
| Output signal | 4~20mA | 0~5V | 1~5V | 0.5~4.5V | 0~10V | |
| Power supply | 10~30Vdc | 8~30Vdc | 5V(ratio) | 11~30Vdc | ||
| Load pressure | (U-10)/0.02(Ω) | >100kΩ | ||||
| Insulation | >100M Ω@50V | |||||
| Electric strength | 500V@60 second | |||||
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |||||
| Pressure durable | 2×106pressure circle @25°C | |||||
| Display range | -999~1999@(PT110&PT111) | |||||
| Contact capacity | (24V, 1A)@PT111 | |||||
| Electrical connection | Hirsmann , air plugs, fixed cable, water proof cable | |||||
| Pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 | |||||
| Pressure type | G, S | Response time: 10ms | ||||
| Certificate | Intrinsically safe mode E, CE | |||||
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |||||
GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package
e.g. GXPS100-3MPa- A-0.5-DC24-P-Foam
PS100, test range is 0-3MPa, accuracy is 0.5%, 24Vdc power supply 4-20mA output, pressure port with M20X1.5, foam packaged.
