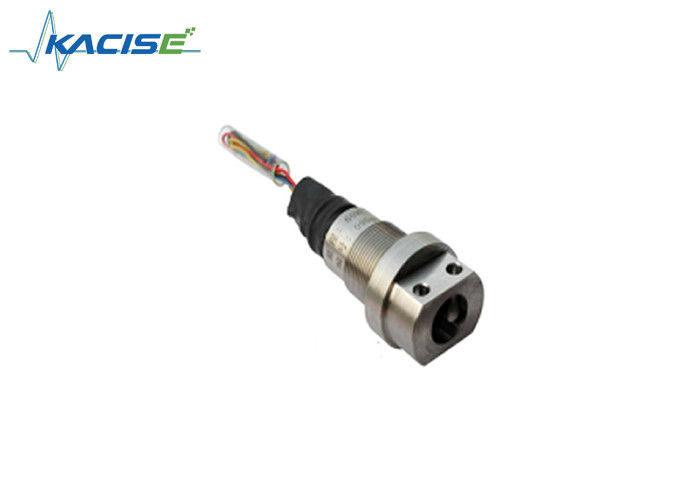

GXPS360 Operation Temoratureof  -40°C~85°CTriclamp Sanitary Connection Pressure Transmitter with Diffusion Cilicon Core Body

Application

• Mine hydraulic column
• Refrigerating machine
• Hydraulic control
• Petrochemical Technology
• Pressure instrument
• Automatic detection system
• Energy and water treatment
• Well real-time management

Feature

• Accuracy: 0.25,0.5%F.S
• 0~5Vdc Output
• Diffusion silicon core body
• Micropower integrated circuit
• Various pressure range and output signal
• Various connector and pressure port
• Non-polarity two wire current output
• DC & AC in two voltage output
• Intrinsically safe mode, isolation explosion, CE

Introduction

GX-PS360 pressure transmitter is a series designed specifically for the detection of the mine tunnel hydraulic support, stability, high reliability, high accuracy, ingenious structure for quick disassembly.

The product uses 1Cr18Ni9Ti stainless steel structure, The pressure core selection of well-known international brands, dedicated circuit design flameproof, can facilitate their zero and full scale calibration, certified intrinsically safe, explosion-proof certification and CE certification

Operating power is 8Vdc/ac (AC and DC).

The system composed of a set of every three constitute a test from the station, the slave three test pressure signal is converted into a digital signal transmission to the terminus.

Electronic interface and signals definition

Parameter
