Place of Origin:
China
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
Intrinsically safe certificate, CE certificate
Model Number:
GXPS340
Application
Feature
Introduction

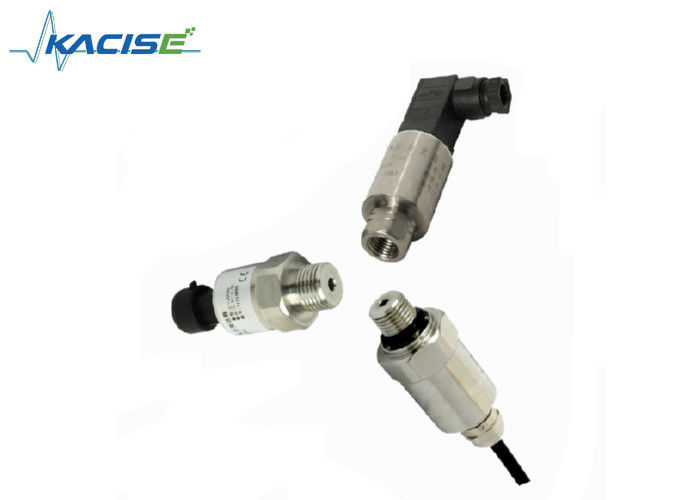

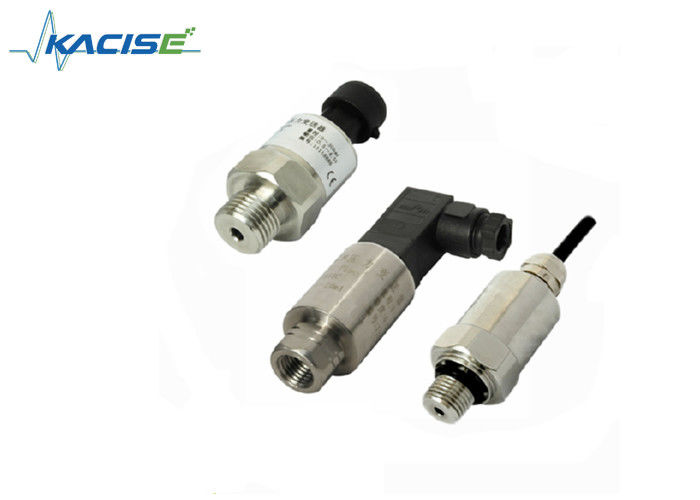

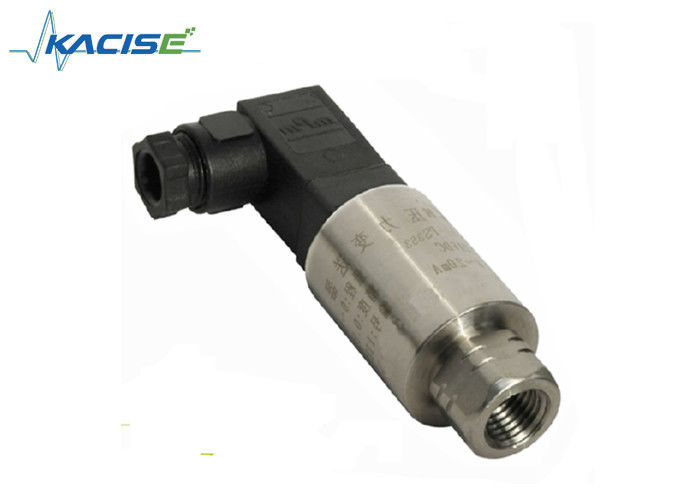

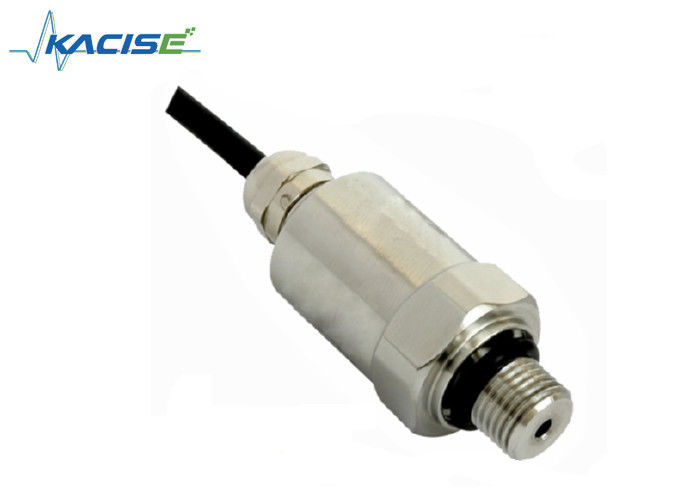

GXPS340 series pressure transmitter is a high-volume, civil and industrial use, cost-effective products. Widely used in gas, liquid pressure detection, such as water, oil, mild corrosive liquids and gases.
The product uses the 1Cr18Ni9Ti stainless steel structure, precise calibration of the pressure core selection of well-known international brand, the sensor dedicated instrumentation amplifier circuit can facilitate their zero and full scale for accurate calibration.
Electronic interface and signals definition
Parameter
| Spec. | Value | |||||
| Pressure range | 0~0.5MPa......60MPa | |||||
| Load pressure | 1.5times nominal value pressure (1.5X) | |||||
| Rupture pressure | 3times nominal value pressure (3X) | |||||
| Accuracy | ±0.5%F.S(PS300 or PS900 for higher accuracy are available) | |||||
| Stability | Typical value 0.25%F.S, Max. value: 0.4%F.S | |||||
| Operating temperature | -40°C~125°C | |||||
| Compensation temperature | -10°C~70°C | |||||
| Storage temp. | -40~120℃ | |||||
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |||||
| Electrical performance | 2 wire system | 3 wire system | ||||
| Output signal | 4~20mA | 0~5V | 1~5V | 0.5~4.5V | 0~10V | |
| Power supply | 10~30Vdc | 8~30Vdc | 5V(ratio) | 12~30Vdc | ||
| Load pressure | (U-10)/0.02(Ω) | >20kΩ | ||||
| Insulation | >100M Ω@50V | |||||
| Electric strength | 500V@60 second | |||||
| Vibration/Impact | 10g/5~2000Hz, axes X/Y/Z20g sine 11ms | |||||
| Pressure durable | 2×106pressure circle @25 °C | |||||
| Display range | -999~1999 | |||||
| Electrical connection | Hirsmann , air plugs, fixed cable, water proof cable | |||||
| Pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 | |||||
| Pressure type | G, S | Response time: 10ms | ||||
| Certificate | Intrinsically safe mode E, CE | |||||
| EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | |||||
