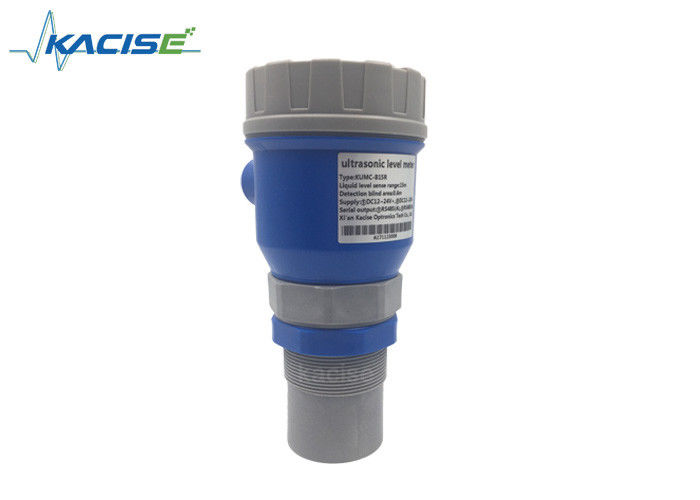

Digital 4-20ma Ultrasonic Level Meter 5-15m Ultrasonic Level Transmitter
Product Description
KUMA series ultrasonic level meter realizes high digital, communication between machine and human. The CPU applies import industry monolithic integrated circuit, digital temperature compensation and wide voltage input. You can select analog, switch or RS485 serial signal output. Owning the advantage that there is no need to contact the measured medium; it could supply more precise and longer work life.
Applications
Features
Parameters
| Range | 5m, 8m, 10m, 12m, 15m |
| Blind Zone | ≤ 0.4~0.6m |
| Max measure error | 0.3%×full scale |
| Power supply | 12-24VDC |
| Power consumption | <1.5W |
| Output signal | 4~20mA (default, other outputs are optional) 1～5V / 1～10V RS485 2 NPN 2 relays (AC: 5A 250V, DC: 10A 24V) |
| Max load impedance | 700Ω |

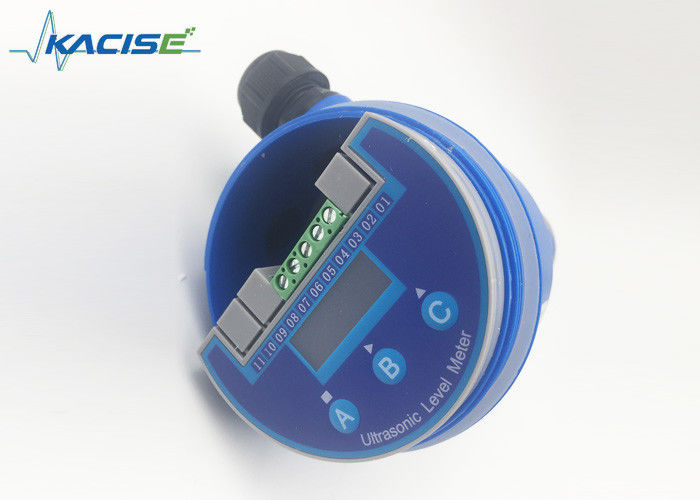

| Display | OLED |
| Display resolution | 1mm |
| Material | ABS, PP |
| Installation | M60X2 or￠61MM |
| Protection degree | IP65 (customizable) |
| Humidity | 0 to 95% |
| Ambient temperature | -10℃~60℃ |
| Ambient pressure | normal condition |
Wiring diagrams
(This picture Reference only, for more details see wiring definitions)
Wiring definitions
Definition of lead | pin／color | |
| ⑤DC12~24V+ | ■Yes／□No |
| ⑥DC12~24V- | ■Yes／□No |
Current output | ⑨4~20mA | □Yes／□No |
Voltage output | □Yes／□No | |
Serial output | ③RS485(A) |
■Yes／□No |
| ④RS485(B) | ||
Output controlⅠ | J1_COM ① |
□Yes／□No |
Level meter Secondary instrument
C. Serial output connecting with PC
Power Level meter RS-485 PC
Conventional relay TTL output
