สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
KACISE
ได้รับการรับรอง:
CE
Model Number:
KUM
วิดีโอ
วิดีโอ

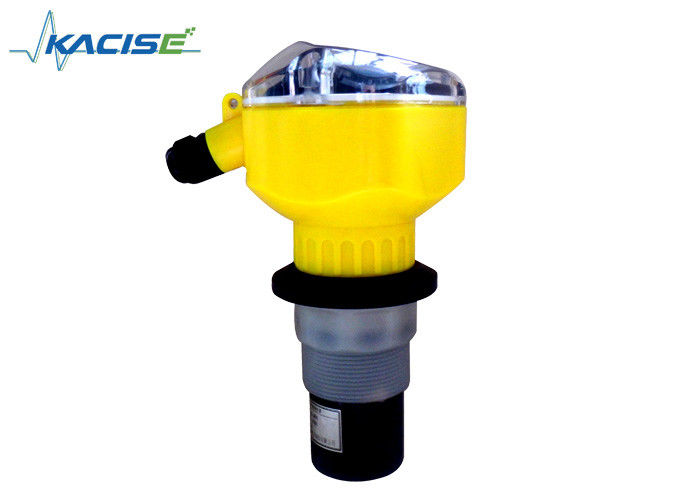

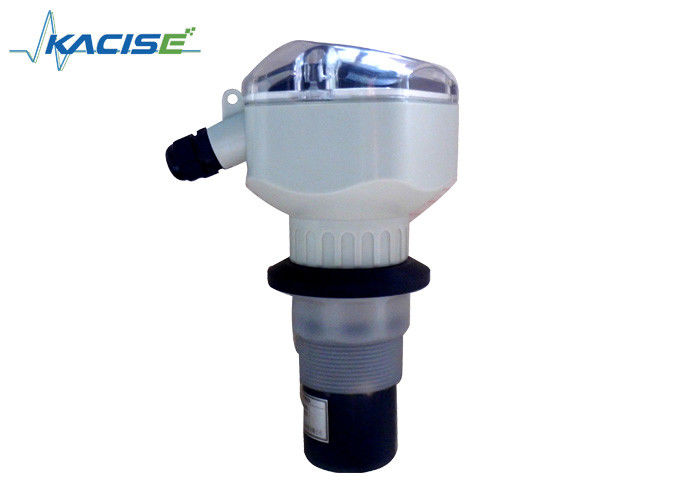

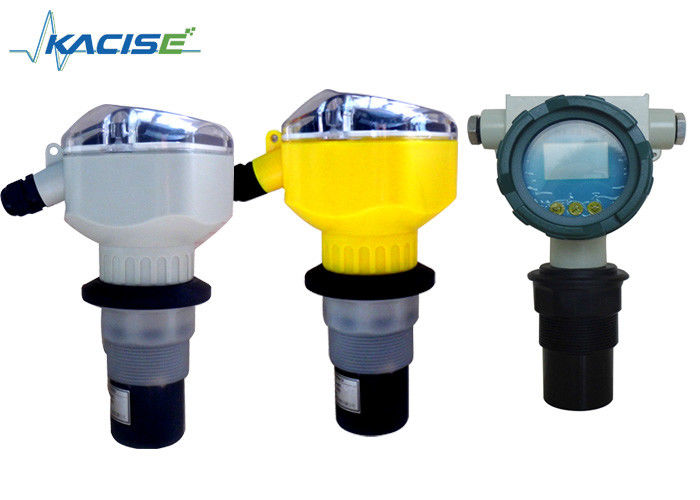

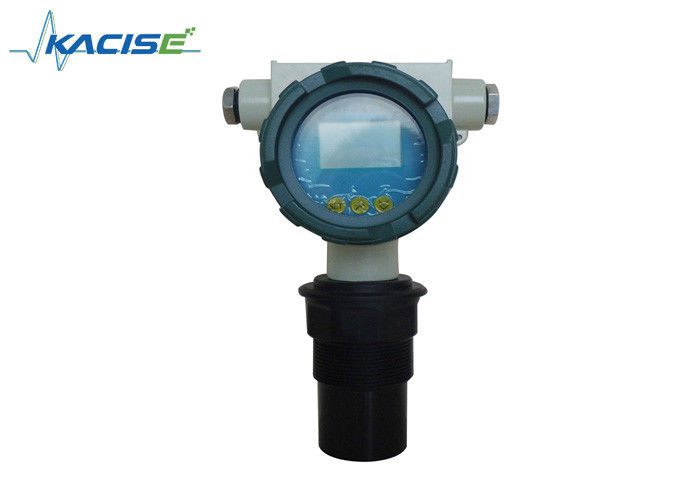

Integrated type ultrasonic level meter is a low cost equipment for industry field liquid, slurry and solid level measurement. It is widely used in water treatment, municipal project, chemical, metallurgical and machinery manufacturing industry.
Features
1. easy to install and maintain.
2. big range and small blind area.
3. high accuracy
4. English and Chinese Language Display
5. Non-contact measurment
6. Support remote monitoring
Application
1) Distance measurement
2) Depth mesurement
Parameters
| Function | Integrated Type |
| Range | 5m, 10m, 15m, 20m, 30m, 40m, 50m, 60m |
| Accuracy | 0.5%-1% |
| Resolution | 3mm or 0.1%(which is bigger) |
| Display | English LED Display |
| Analog Output | Two wire 4~20mA/250Ω load, Four wire 4~20mA/510Ωload |
| Digital Output | RS485, RS232 (optional) |
| Relay Output | 2 way AC 250V/ 5A or DC 30V/ 5A (optional) |
| Power Supply | Default: 24VDC, Optional: 220V AC+15% 50Hz |
| Environment Temperature | LED: -20～+60℃, Probe : -20～+80℃ |
| Protection Grade | LED: IP65, Probe: IP68 |
| Cable Probe | No |
| Installation | Thread or Flange |
Solid measurement
Installation flange
The installation method is the same as liquid measurement. It can install on the flange which joint the connected tube of container. The axis must aim to container outlet or perpendicular to the media surface, the probe should be able to come out of the connected-tube.
Opening container
As opening container, we can use the bracket to install (pay attention to the bracket’s bearing capacity), and maintain some distance between sensor and container wall. If the container wall is flat, then the distance from sensor to the container wall is in the following table:
| Max range | Distance | Max range | Distance | Max range | Distance |
| 5m | 0.5m | 10m | 1m | 15m | 1.5m |
| Max range | Distance | Max range | Distance | Max range | Distance |
| 20m | 2m | 30m | 3m | 40m | 4m |
Due to open containers have no focus effect, you can install the sensor in the middle of the container.
Shipping & Payment
Payment terms:
1. Samples: TT, 100% payment in advance.
2. Bulk order: TT, 30% deposit and balance 70% settled before shipment.
3. Western Union
4. L/C is available.
Trade term: FOB, CIF & EXW are available
Packaging:
Base on incasement request for the products or as customer's special requirements.
Time:
1. Samples: 2-7 working days after payment.
2. Bulk order: 20-35 working days after payment.
Methods:
1. By Express: DHL, UPS, FEDEX, EMS, a fast and safe way for shipping.
2. By Air: In some area, the shipping cost by air is more favorable than by Express.
3. By Sea: the most economic shipping method, but cost longer shipping time; large quantity, heavy and not urgent goods can choose this way.
4. Your shipping agent or forwarder.
Ordering information
Type-range –relay out-Power module –communication port-cable length-probe type
