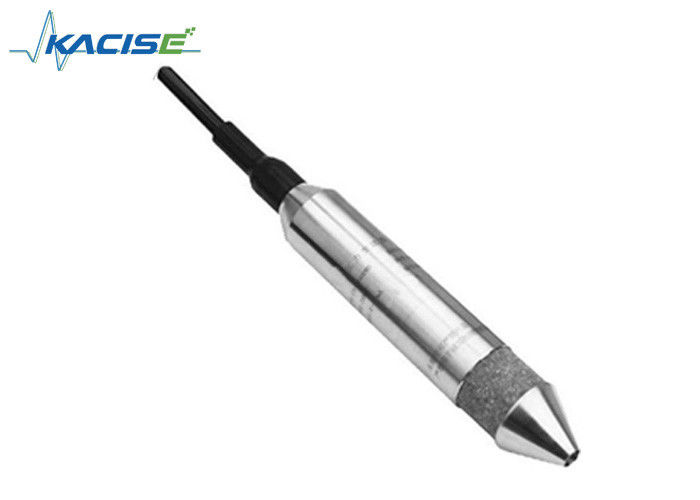

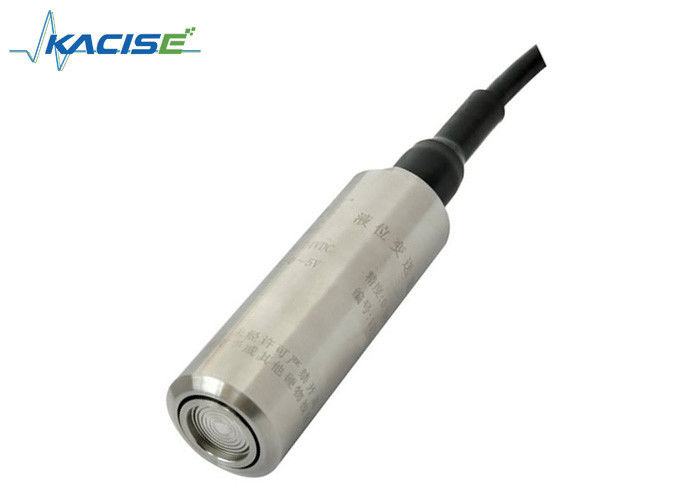

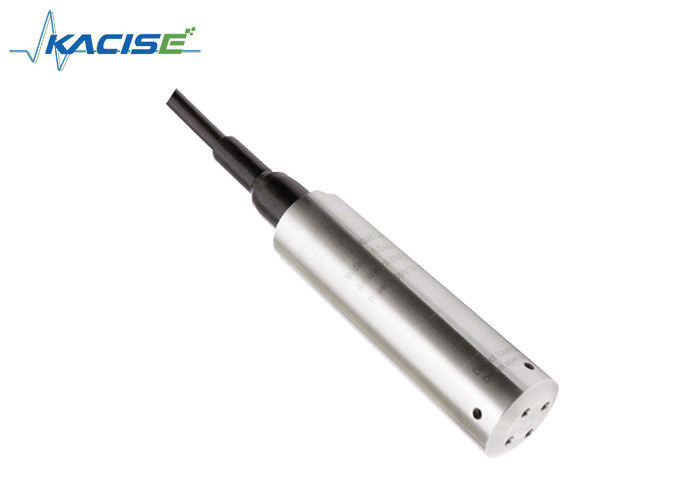

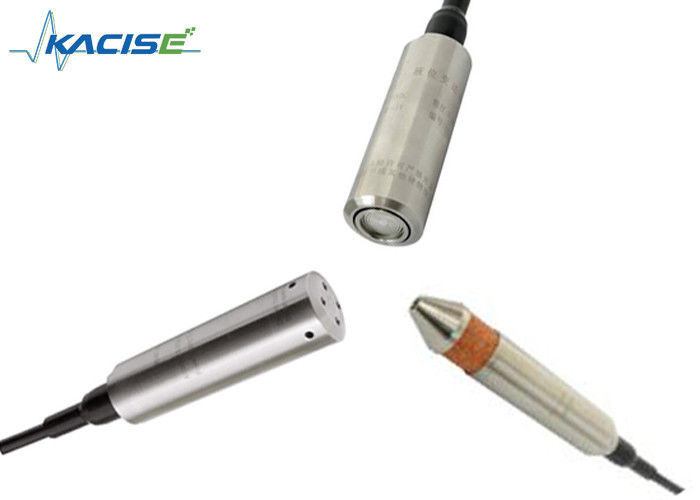

Submersible Diffused-Silicon oil filled core Level Pressure Sensor
1. Product Description
GXPS400 series level transmitter is a special structure and use of products, high precision, small size and
good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered
according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof
certificates. Customized solutions for various fluids can be supplied.
2. Parameter
| Spec. | Numerical value | ||
| Pressure range |
0~1……500mH2O 9.8KPa…4900KPa 0.09bar…49bar 0.09atm…48atm 1.4psi… 711psi 2.8inchHg…1400inchHg |
||
| Overload pressure | 1.5times Rated pressure | ||
| Secondary containment | 3 times rated pressure | ||
| Accuracy | ±0.25%F.S, ±0.5%F.S, ±1.0%F.S | ||
| Stability | Typical value: 0.1%F.S Max.: 0.2% F.S/year | ||
| Operating Temperature | -40°C~85°C or -40 °C ~125 °C | ||
| Compensation temperature | -10°C~70°C | ||
| Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L | ||
| Electrical properties | 2 line | 3 line | |
| Output signal | 4~20mA | 0~5V | 0~10V |
| Power supplies | 10~30Vdc | 80~30Vdc/ac | 11~30Vdc/ac |
| Load resistance | (U-10)/0.02(Ω) | 〉100kΩ | |
| Insulation | 〉100MΩ@50V | ||
| Electrical Connections | waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68 | ||
| Pressure interface | G1/4,input type | ||
| Response time | 10ms | ||
| Electric strength | 500Vac@1 second | ||
| Graduate Certificate Programs | certificate of explosion-proof, CE | ||
| Electromagnetic compatibility | electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2 | ||
| Lightning protection | air conduction resistance 8000V,case, cable conduction | ||
