สถานที่กำเนิด:
สวิตเซอร์แลนด์
ชื่อแบรนด์:
Endress+Hauser
ได้รับการรับรอง:
CE
หมายเลขรุ่น:

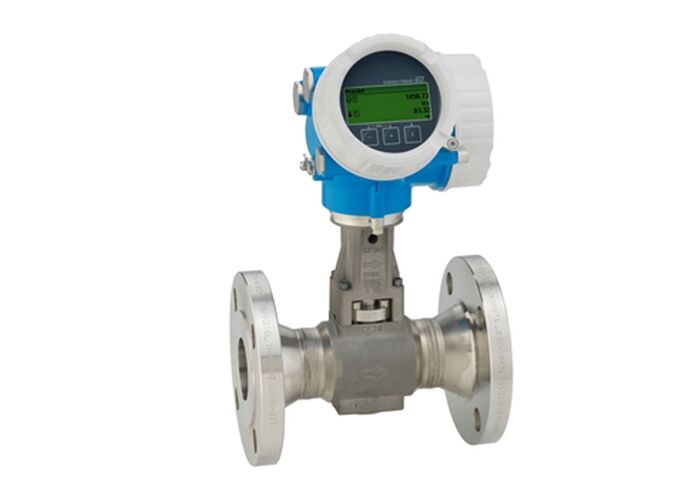

Proline Prowirl F 200
| Volume flow (liquid) | ±0.75% |
| Volume flow (optional) | ±0.65% |
| Volume flow (steam, gas) | ±1.00% |
| Mass flow (saturated steam) | ±1.7% (temperature compensated); ±1.5% (temperature/pressure compensated) |
| Mass flow (superheated steam, gas) | ±1.5% (temperature/pressure compensated); ±1.7% (temperature compensated + external pressure compensation) |
| Mass flow (liquid) | ±0.85% |
| Liquid | 0.2 to 2100 m³/h (0.15 to 1520 ft³/min) depending on medium: water with 1 bar a, 20 °C (14.5 psi a, 68° F) |
| Steam, Gas | 1.5 to 28000 m³/h (0.9 to 16600 ft³/min) depending on medium: steam with 180 °C, 10 bar a (356 °F, 145 psi a); air with 25 °C, 4.4 bar a (77 °F, 63.8 psi a) |
| Nominal diameter range | DN 15 to 300 (½ to 12") |
| Medium temperature range (standard) | -40 to +260 °C (-40 to +500 °F) |
| Medium temperature range (option) | -200 to +400 °C (-328 to +752 °F) |
| Max. process pressure | PN 100, Class 600, 20K |
| Measuring tube | 1.4408 (CF3M); CX2MW similar to Alloy C22, 2.4602 |
| DSC sensor | 1.4404 (316/316L); UNS N06022 similar to Alloy C22, 2.4602 |
| Process connection | 1.4404/F316/F316L; 2.4602 |
| Sensor housing material | AlSi10Mg, coated; 1.4408 (CF3M) |
| Transmitter housing material | AlSi10Mg, coated; 1.4404 (316L) |
