ชื่อแบรนด์:
Endress+Hauser
ได้รับการรับรอง:
CE
หมายเลขรุ่น:

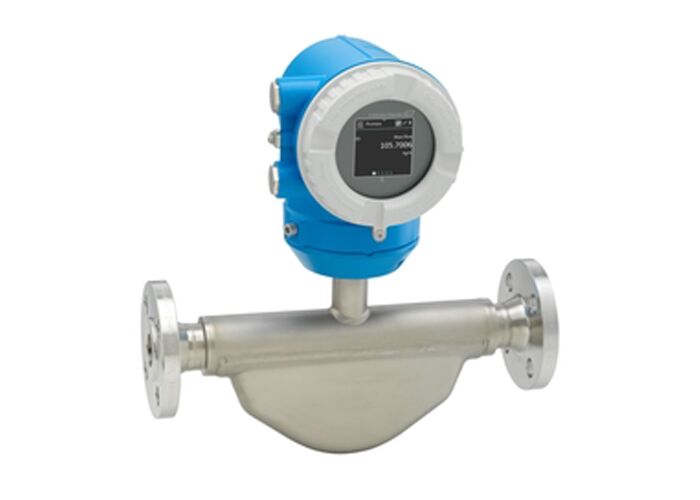

โพรลีน โปรแมส เค 10
| Measuring Principle | Coriolis |
| Nominal Diameter Range | DN 8 to 80 (⅜ to 3") |
| Measured Variables | Mass flow, temperature, Density (option), volume flow, corrected volume flow |
| Max. Measurement Error |
Mass flow (liquid): ±0.5% (standard), ±0.15% (option) Mass flow (gas): ±0.75% |
| Measuring Range | 0 to 180,000 kg/h (0 to 6,615 lb/min) |
| Max. Process Pressure | PN 40, Class 300, 40K |
| Medium Temperature Range | -40 to +150 °C (-40 to +302 °F) |
| Ambient Temperature Range | Standard: -20 to +60 °C (-4 to +140 °F) |
| Wetted Materials |
Measuring tube: 1.4539 (904L) Connection: 1.4404 (316/316L) |
| Sensor Housing Material | Stainless steel 1.4301 (304) |
| Transmitter Housing Material | AlSi10Mg, coated |
| Degree of Protection | Standard: IP66/67, Type 4X enclosure |
| Display/Operation | 2.4" LCD display with touch & auto rotate; Configuration and operation via Bluetooth technology possible |
| Outputs | 4-20 mA HART (active/passive), Pulse/frequency/switch output, Modbus RS485, 4-20 mA |
| Digital Communication | HART, MODBUS RS485, IO-Link |
| Power Supply | DC 24 V, AC 100 to 230 V, AC 100 to 230 V / DC 24 V (non-hazardous area) |
