Place of Origin:
CHINA
ชื่อแบรนด์:
KACISE
ได้รับการรับรอง:
CE
Model Number:
KSGYR312F

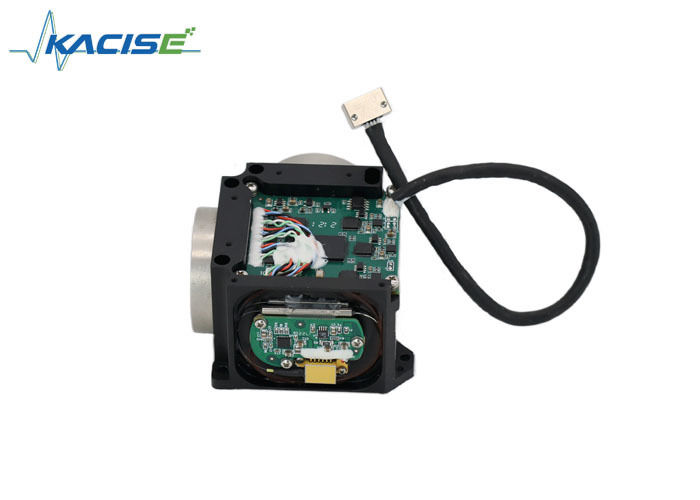

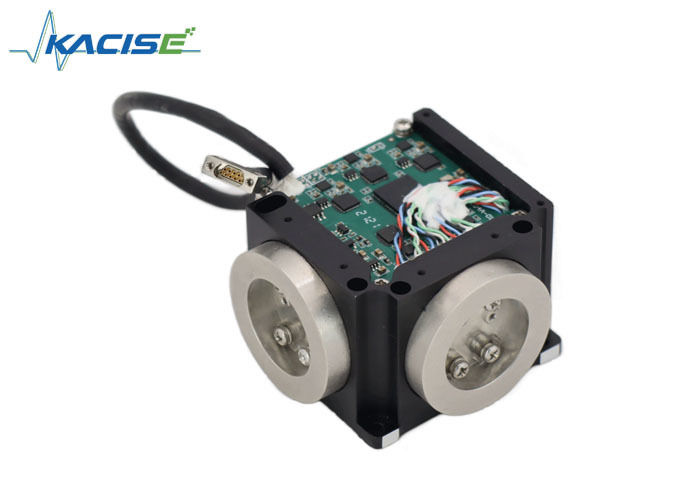

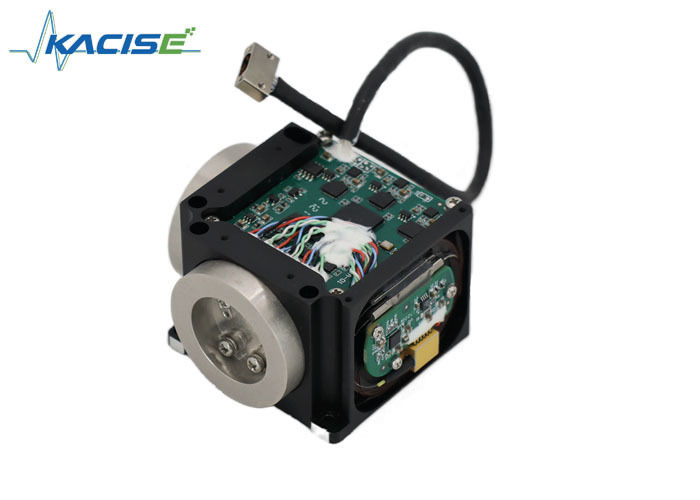

The KSGYR312F is an inertial angle rate sensor based on the optical Sagnac effect, designed to measure rotational angular velocity along three sensitive axes. Utilizing digital closed-loop detection technology, it precisely extracts optical path differences caused by external angular velocity, providing real-time angular velocity signal detection.
| Attribute | Value |
|---|---|
| Supply voltage | +5V |
| Dimensions | 71.5×68×45mm |
| Start time | ≤3s |
| Bias (100s smooth, fix temperature) | ≤0.1°/h |
| Power dissipation (full temperature) | <4W |
| Weight | <320g |
| Supply voltage | +5V |
| Dimensions | 71.5×68×45mm |
| Start time | ≤3s |
| Bias (100s smooth, fix temperature) | ≤0.1°/h |
| Bias stability (100s smooth -45°C~+70°C) | ≤0.5°/h |
| Bias repeatability | ≤0.1°/h |
| Random walk | ≤0.01°/h1/2 |
| Scale factor non-linearity | ≤20ppm |
| Scale factor repeatability | ≤10ppm |
| Dynamic range | ±500°/s |
| Power dissipation (full temperature) | <4W |
| Weight | <320g |
| Operate temperature | -45°C～+70°C |
| Storage temperature | -50°C～+80°C |
