Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
certificate of explosion-proof, CE
Model Number:
KSQAT185

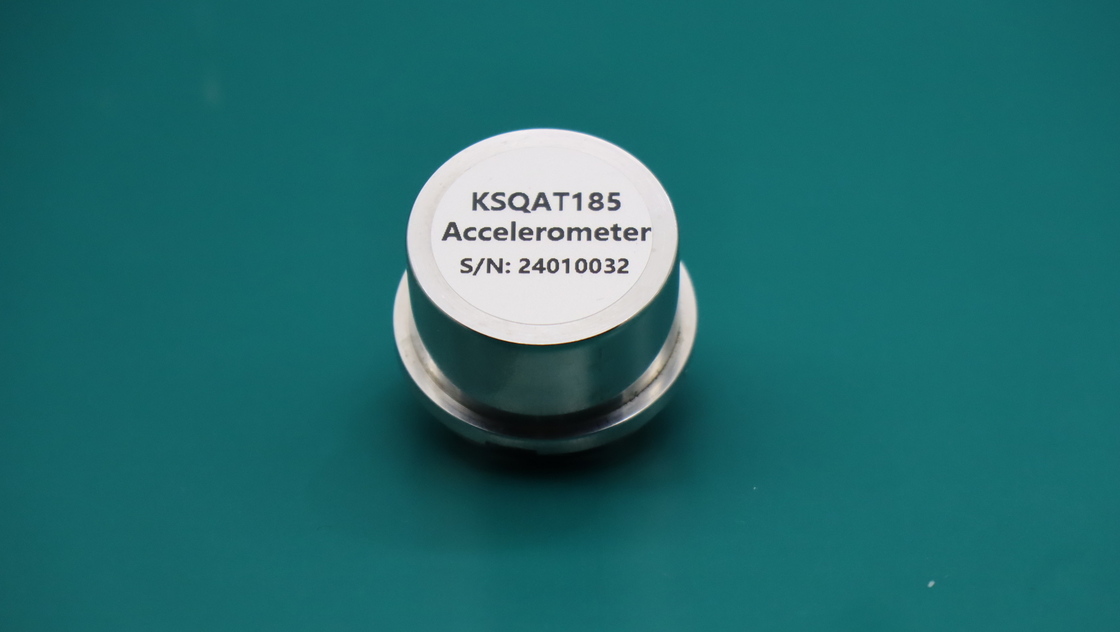

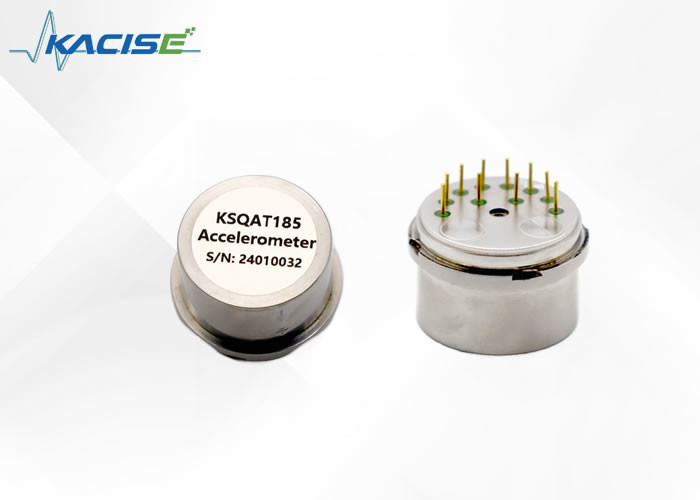

The Quartz flexible accelerometer is an advanced precision instrument that is made up of quartz glass flexible support and an advanced servo circuit based on the principal of inertia. When the carrier is subjected to acceleration, the output of the accelerometer is precisely proportional to the input acceleration.
Our accelerometer has a current output form of high output impedance. Users have the freedom to choose the sampling resistance according to their individual requirements without affecting the stability of the system.
We are proud to have a range of products that cater to different needs. Our series of products includes dozens of types, from the high-precision μg KSQA07 accelerometer for satellite microgravity measurement to low-cost, anti-harsh environment KSQA13 accelerometer. Our products are widely used in aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering and other fields, providing signals for navigation, guidance, control, leveling, monitoring and other systems.
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
| Parameter | KSQAT160 | KSQAT185 | |
| Power supply parameter | |||
| Power Voltage | ±12~±18V DC | ||
| Product performance | |||
| Input Range | ±10g | ±10g | |
| Bias | ≤20mg | ≤20mg | |
| Temperature Sensitivity | ≤150μg/°C | ≤150μg/°C | |
| Three-hour Stability(1σ) | ≤100μg | ≤150μg | |
| Scale Factor | 2.3 ~ 3.5mA/g | 1.3 ~ 3.5mA/g | |
| Temperature Sensitivity | ≤150ppm/°C | ≤300ppm/°C | |
| Three-hour Stability(1σ) | ≤100ppm | ≤150ppm | |

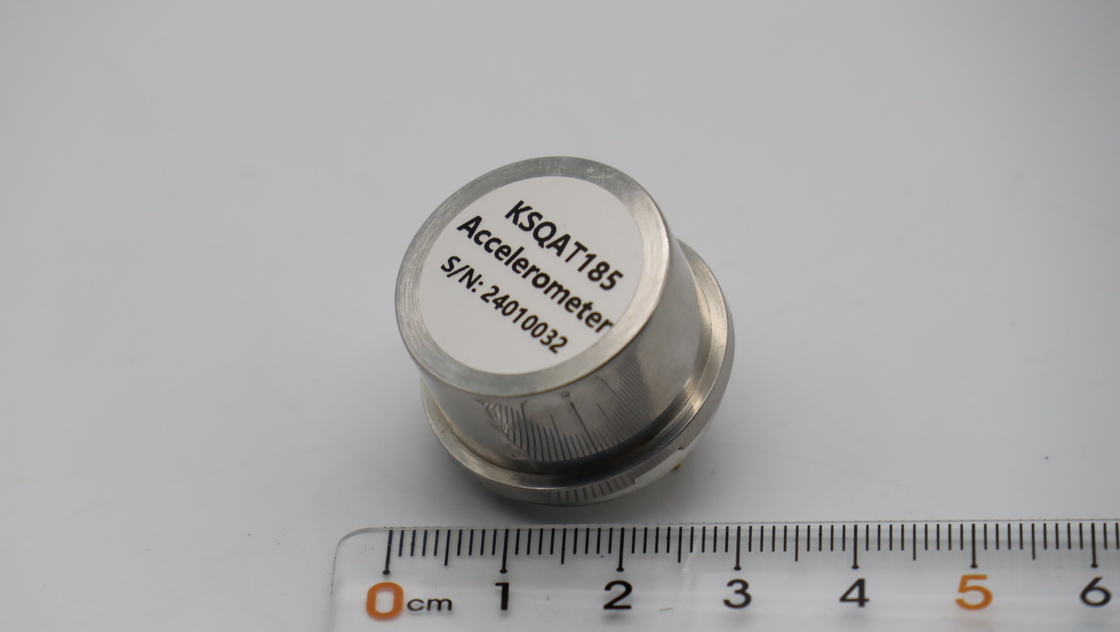

| Size | Ø25×25mm | Ø25×25mm | |
| Weight | ≤60g | ≤60g | |
| Environment | |||
| Operating Temperature | -45°C~+160°C | -45°C~+185°C | |
| Storage temperature | -55°C～+170°C | -55°C～+190°C | |
| Shock | 1000g | ||
| Vibration Peak Sine | 20g@10Hz ~ 2000Hz | ||
Dimensions:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Our Accelerometer Sensor product technical support and services include:
Product Packaging:
The accelerometer sensor will be packaged in a sturdy cardboard box with cushioning material to prevent damage during transit. The box will also be labeled with the product name and any necessary handling instructions.
Shipping:
The product will be shipped via standard ground shipping unless expedited shipping is requested and paid for by the customer. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the package has been shipped.
