Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
certificate of explosion-proof, CE
Model Number:
KSQAMini

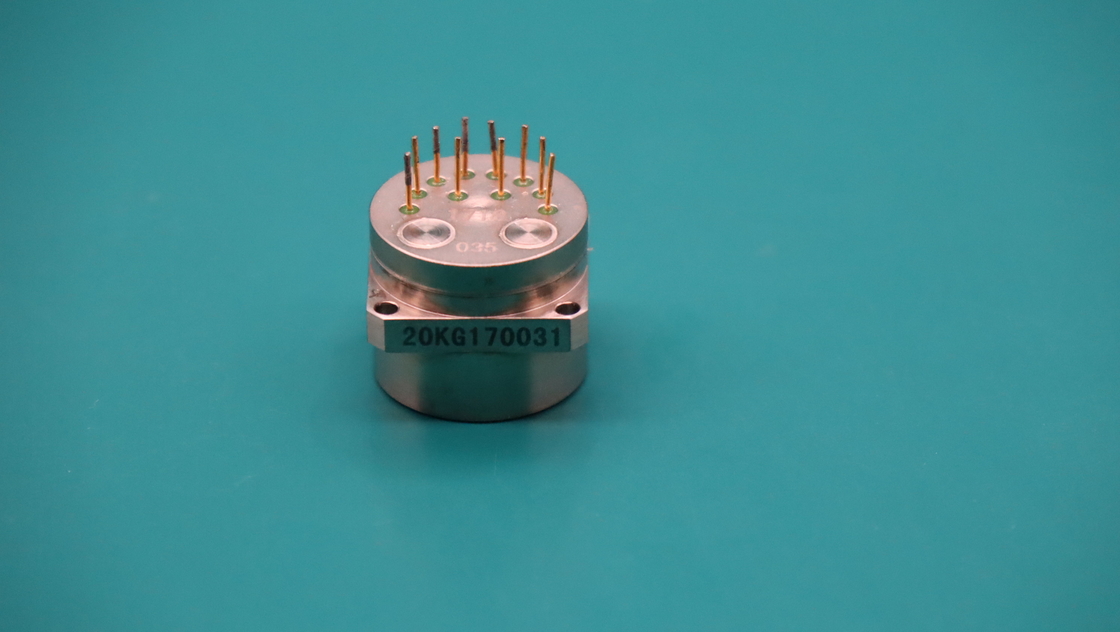

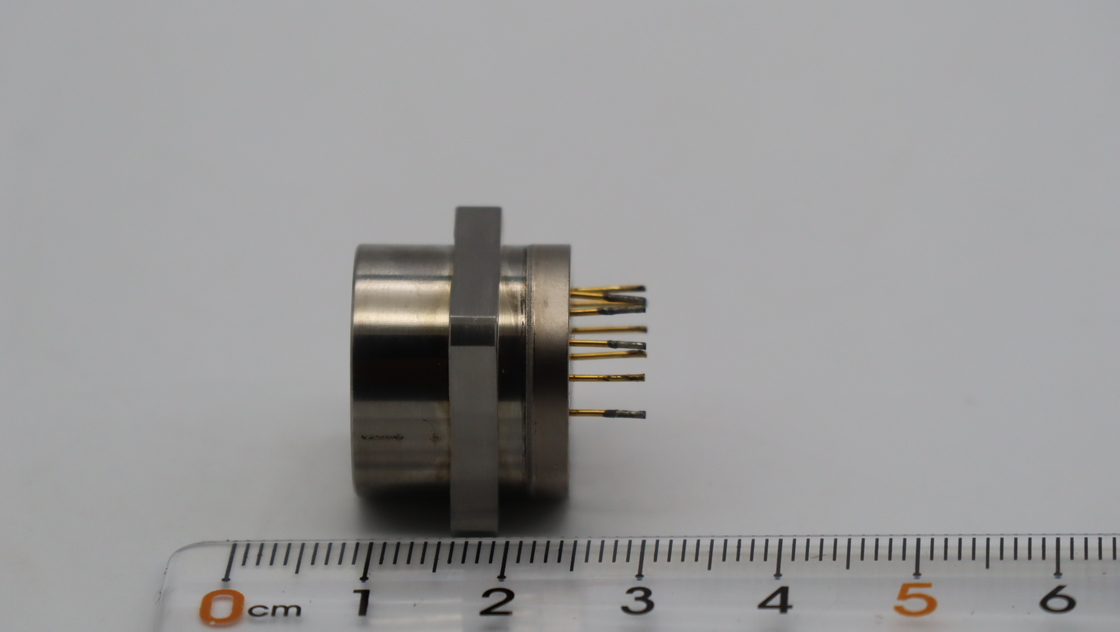

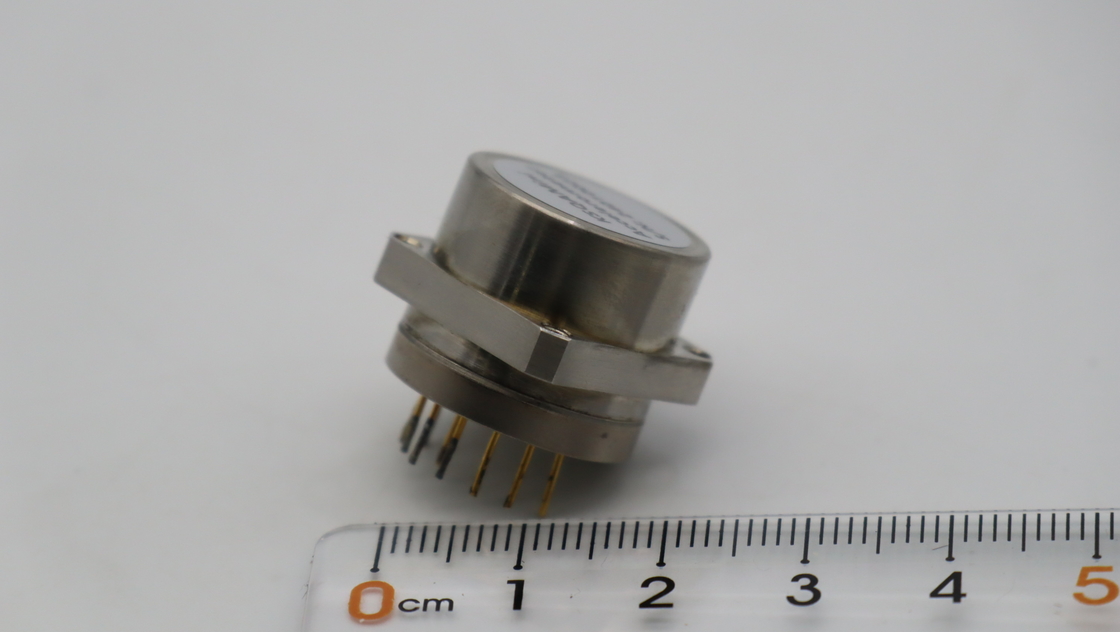

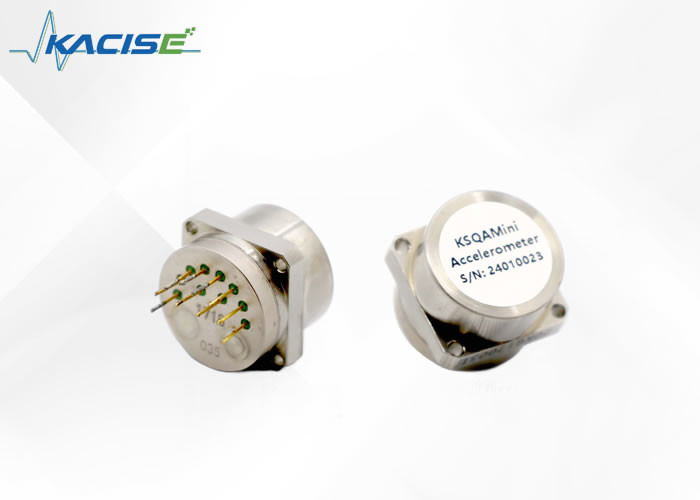

The Quartz Flexible Accelerometer is a high-precision instrument that consists of a quartz glass flexible support and an advanced servo circuit that operates based on the principle of inertia. When subjected to acceleration, the accelerometer produces an output that is precisely proportional to the input acceleration.
Our accelerometer utilizes a current output form of high output impedance. Users have the freedom to choose the sampling resistance that best suits their needs without sacrificing the stability of the system.
Currently, our Quartz Flexible Accelerometer product line includes a wide range of types suitable for different applications, from the high-precision μg KSQA07 accelerometer designed for measuring satellite microgravity to the low-cost, anti-harsh environment KSQA13 accelerometer. We have as many as dozens of products available, and they are widely used in various fields such as aerospace, aviation, navigation, ship, vehicle, petroleum, and geotechnical engineering.
Our accelerometers provide essential signals for navigation, guidance, control, leveling, monitoring, and other systems. They offer accurate readings, ensuring that your equipment operates as intended and that your projects meet your desired outcomes.
● Excellent index repeatability
● Analog output
● Small size and light weight
● Wide load resistance range
● Square precision mounting flanges
● Application in measurement system of oil drilling
● Two models are available
● It has good high temperature resistance
| Parameter | KSQAMini | KSQAMini185 | |
| Power supply parameter | |||
| Power Voltage | ±12~±18V DC | ||
| Product performance | |||
| Input Range | ±20g | ±20g | |
| Bias | ≤20mg | ≤30mg | |
| Temperature Sensitivity | ≤150μg/°C | ≤150μg/°C | |
| Three-hour Stability(1σ) | ≤100μg | ≤200μg | |
| Scale Factor | 2.2 ~ 3.5mA/g | 1.5 ~ 3.5mA/g | |
| Temperature Sensitivity | ≤200ppm/°C | ≤300ppm/°C | |
| Three-hour Stability(1σ) | ≤100ppm | ≤200ppm | |
| Size | Ø18.8×21mm | Ø18.8×21mm | |
| Weight | ≤25g | ≤25g | |
| Environment | |||
| Operating Temperature | -45°C~+125°C | -45°C~+185°C | |
| Storage temperature | -55°C～+130°C | -55°C～+190°C | |
| Shock | 1000g | ||
| Vibration Peak Sine | 20g@10Hz ~ 2000Hz | ||
Dimensions:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Our Accelerometer Sensor product technical support and services include:
Product Packaging:
The accelerometer sensor will be packaged in a sturdy cardboard box with cushioning material to prevent damage during transit. The box will also be labeled with the product name and any necessary handling instructions.
Shipping:
The product will be shipped via standard ground shipping unless expedited shipping is requested and paid for by the customer. Shipping costs will be calculated based on the destination and weight of the package. Customers will receive a tracking number once the package has been shipped.
