Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
certificate of explosion-proof, CE
Model Number:
KSQA10

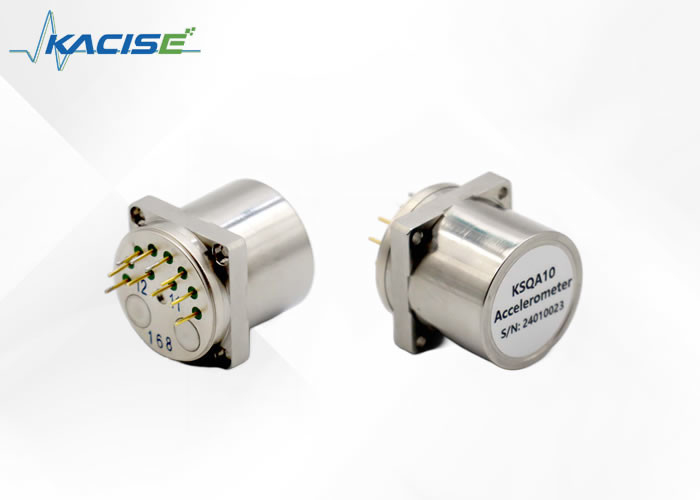

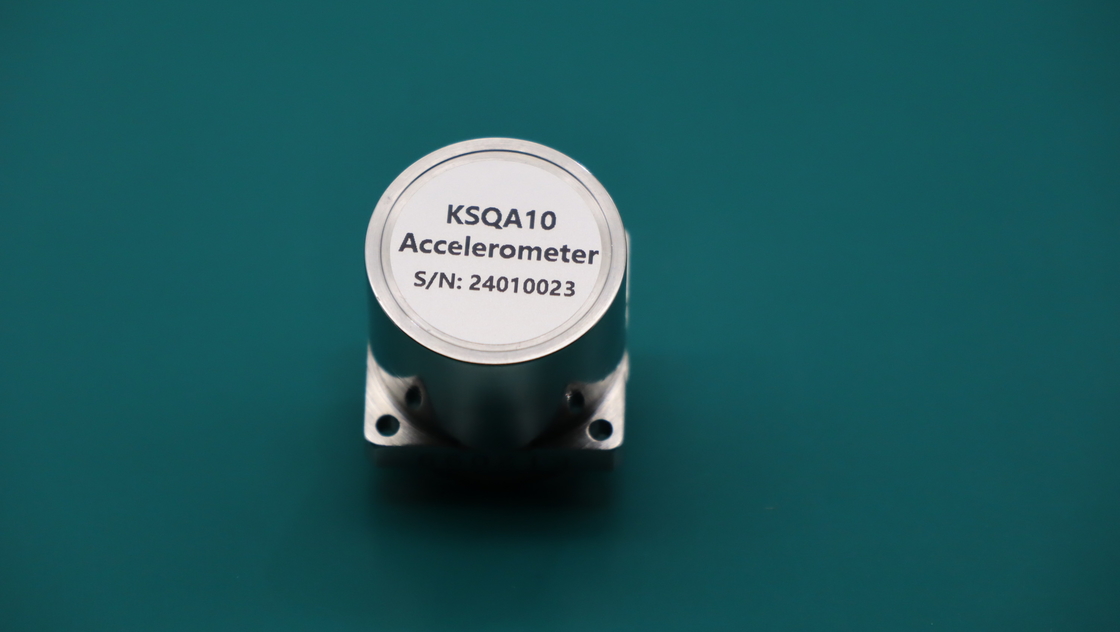

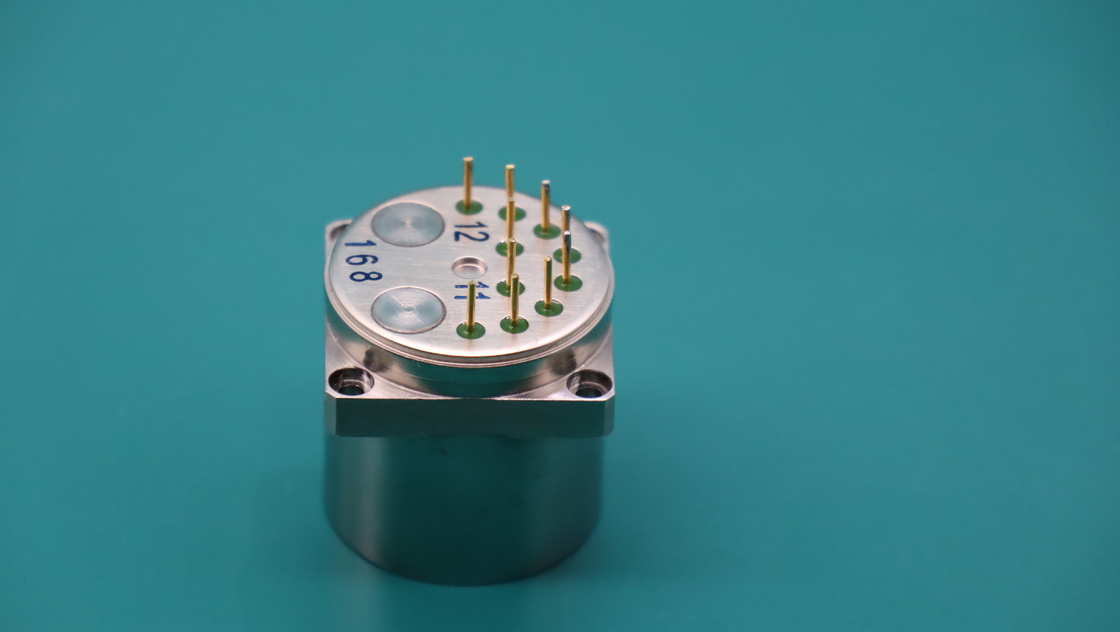

The Quartz flexible accelerometer from our company is a precision instrument that consists of quartz glass flexible support and advanced servo circuit based on the principle of inertia. This accelerometer is designed to output a precise value that is proportional to the input acceleration it experiences. It has a current output form of high output impedance, and users can select the sampling resistance based on their specific requirements without affecting the overall stability of the system.
We take pride in offering a variety of products under the category of quartz flexible accelerometer, ranging from high-precision μg KSQA07 accelerometer used for satellite microgravity measurement to the low-cost anti-harsh environment KSQA13 accelerometer. Our company offers dozens of different models that are widely used in fields such as aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering and many others. These products provide signals for navigation, guidance, control, leveling, monitoring, and other systems.
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
| Parameter | KSQA10A | KSQA10B |
| Power supply parameter | ||
| Power Voltage | ±12~±18V DC | |
| Product performance | ||
| Input Range | ±20g | ±20g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤30μg/°C | ≤50μg/°C |
| One-month Composite Repeatability (1σ) | ≤30μg | ≤50μg |
| Scale Factor | 1.2 ~ 1.6mA/g | 1.2 ~ 1.6mA/g |
| Temperature Sensitivity | ≤30ppm/°C | ≤80ppm/°C |
| One-month Composite Repeatability (1σ) | ≤30ppm | ≤50ppm |
| Linearity | ≤15μg/g2 | ≤40μg/g2 |
| Threshold | <5μg | <5μg |
| Resolution | <5μg | <5μg |
| Size | Ø25.4×32mm | Ø25.4×32mm |
| Weight | ≤70g | ≤70g |
| Environment | ||
| Operating Temperature | -45°C~+80°C | |
| Storage temperature | -55°C～+80°C | |
| Shock | 100g | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz | |
Dimensions:
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Application in the inertial navigation system of the new generation weapon
● Two models are available
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
