Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
certificate of explosion-proof, CE
Model Number:
KSQA09

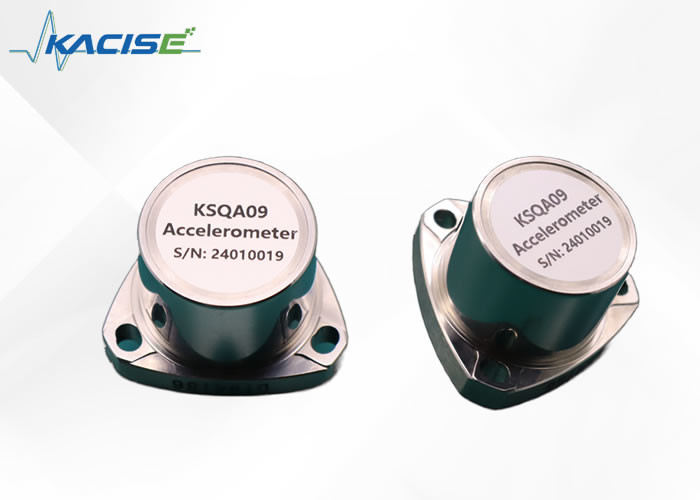

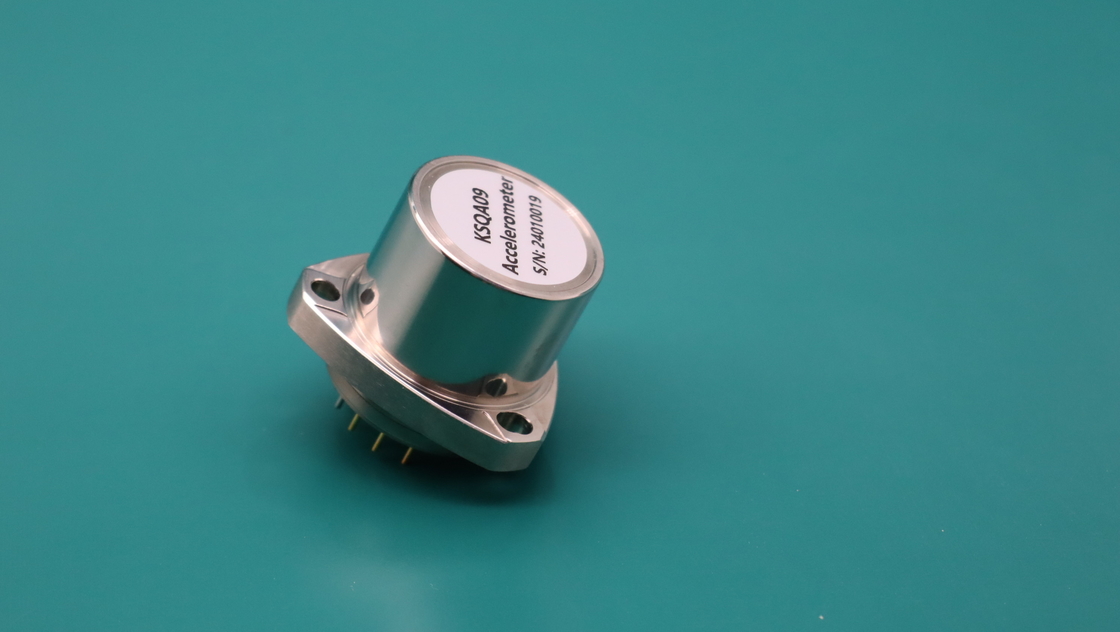

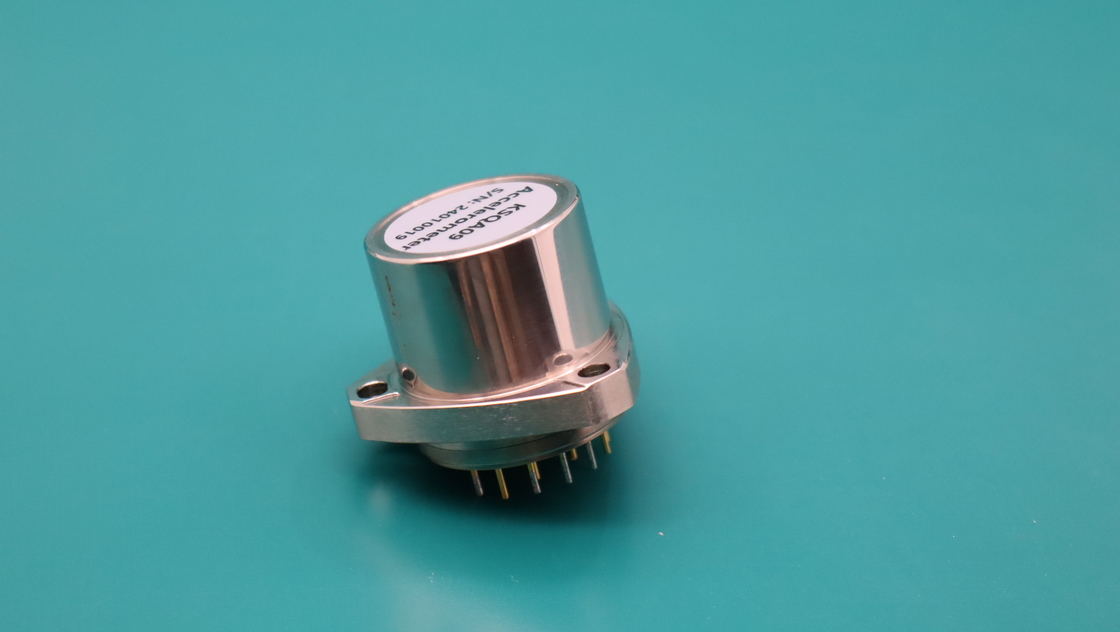

The Quartz flexible accelerometer is a highly precise instrument that comprises of a flexible support made of quartz glass and an advanced servo circuit based on the principle of inertia. The output of the accelerometer is precisely proportional to the input acceleration when the carrier is subjected to acceleration.
Our accelerometer has a high output impedance in the current output form, and users can choose the sampling resistance based on their requirements without worrying about affecting the stability of the system.
Currently, our Quartz flexible accelerometer has developed a series of products that includes dozens of types, ranging from high-precision μg KSQA07 accelerometer for satellite microgravity measurement to the low-cost, anti-harsh environment KSQA13 accelerometer.
Our accelerometer finds wide applications in various fields, including aerospace, aviation, navigation, ship, vehicle, petroleum, geotechnical engineering, etc. Its accuracy in providing signals for navigation, guidance, control, leveling, monitoring and other systems makes it a preferred choice in these industries.
● Excellent index repeatability
● Analog output
● Build-in digital temperature sensor
● Wide load resistance range
● Triangle precision mounting flanges
● Application in the inertial navigation system of the new generation weapon
● Two models are available
| Parameter | KSQA09A | KSQA09B |
| Power supply parameter | ||
| Power Voltage | ±12~±18V DC | |
| Product performance | ||
| Input Range | ±80g | ±40g |
| Bias | ≤5mg | ≤5mg |
| Temperature Sensitivity | ≤30μg/°C | ≤50μg/°C |
| One-month Composite Repeatability (1σ) | ≤30μg | ≤60μg |
| Scale Factor | 0.9 ~ 1.3mA/g | 0.9 ~ 1.3mA/g |
| Temperature Sensitivity | ≤50ppm/°C | ≤80ppm/°C |
| One-month Composite Repeatability (1σ) | ≤40ppm | ≤60ppm |
| Linearity | ≤40μg/g2 | ≤40μg/g2 |
| Threshold | <5μg | <5μg |
| Resolution | <5μg | <5μg |
| Size | Ø25.4×30mm | Ø25.4×30mm |
| Weight | ≤80g | ≤80g |
| Environment | ||
| Operating Temperature | -45°C~+80°C | |
| Storage temperature | -55°C～+80°C | |
| Shock | 100g | |
| Vibration Peak Sine | 20g@20Hz ~ 2000Hz | |
Dimensions:
● Inertial monitoring system
● Inertial navigation system
● Flight control system
● Vibration monitoring
● Oil drilling platforms and geological exploration
● Inertial measurement unit
● Motion monitoring equipment
Acceleration sensor product technical support and services include:
- Troubleshooting assistance
- Installation and setup consultation
- performance optimization Suggestions
- repair and replacement services
- technical documents and manuals
Product Packaging:
The Accelerometer Sensor product will be packaged in a sturdy cardboard box with ample protective material to prevent damage during shipping. The product will be securely sealed to ensure its safety during transit.
Shipping:
The Accelerometer Sensor product will be shipped through a reliable courier service that offers tracking information to the customer. The shipping cost will be calculated based on the destination and weight of the package. The estimated delivery time will be provided to the customer at the time of purchase.
