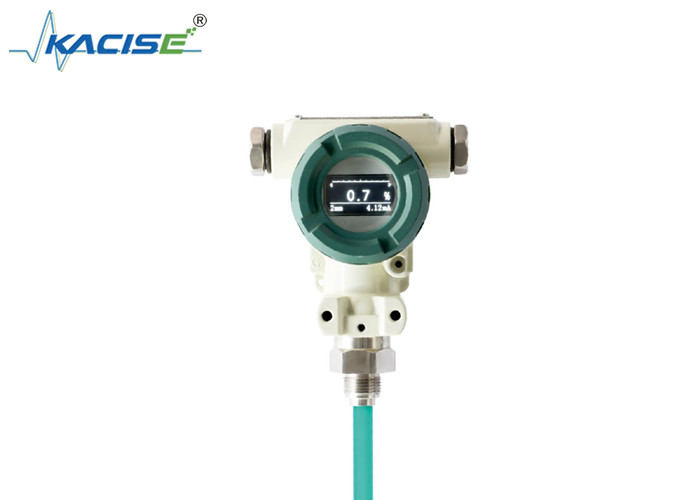

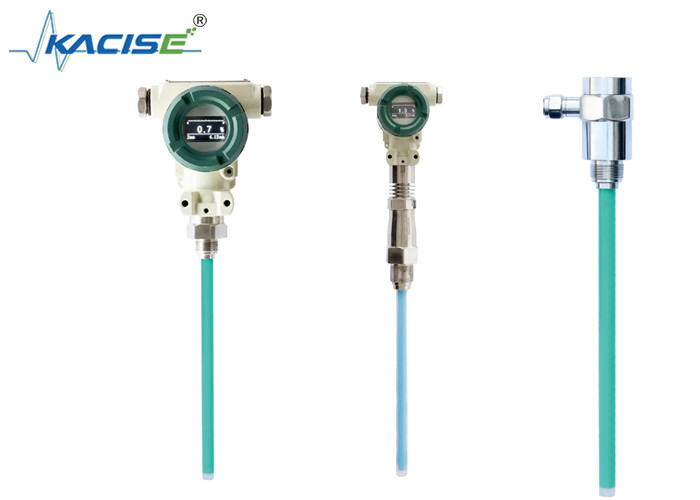

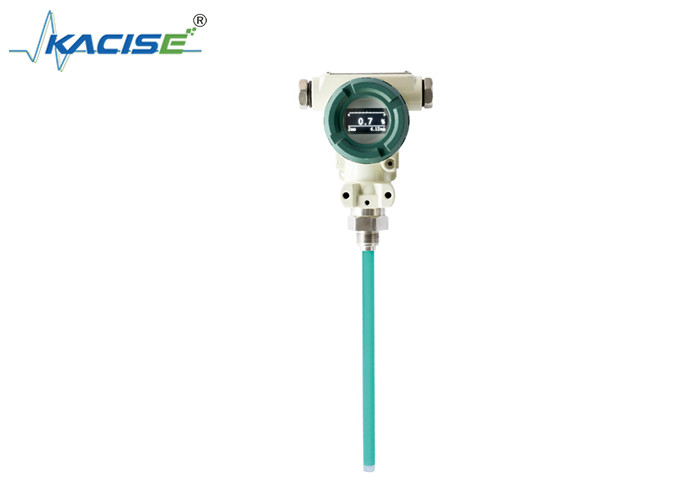

KCF6052-1-330mm Fluid Level Meter With Long Range Multiple Output Signals And Wide Power Supply Range

Product Description:

The KCF6052 capacitive liquid level sensor is an excellent choice for challenging measurement situations where traditional sensors may fail. This sensor is capable of accurately measuring difficult substances such as sewage, high viscosity liquids that are prone to crystallization or adhesion, and even media that are prone to foaming or aerosol influence.

The KCF6052 offers high reliability, precision, and excellent cost performance, making it an ideal replacement for other types of level sensors, including magnetostrictive, ultrasonic, radar, and radio frequency admittance sensors. Unlike other sensors, the KCF6052 features no moving or elastic parts, making it a durable choice with high impact resistance and easy installation.

The core of the KCF6052 is made up of an advanced radio frequency capacitance detection circuit that is capable of converting measurements into standard electrical signals through precise temperature compensation and linear correction. Additionally, the sensor uses tomographic scanning technology to automatically detect the dielectric constant and temperature changes in the medium, automatically calibrating and adapting to the measurement without recalibration required.

Designed to adapt to different measurement requirements in various complex environments, the KCF6052 capacitive liquid level sensor features excellent anti-hanging, anti-condensation, anti-bubble, and super adaptability. Additionally, the sensor boasts an impressive IP68 protection level, making it a reliable choice for continuous measurement in harsh environments.

Feature:

• Automatic adaptation, automatic calibration, long-term stable output of real height value.
• Anti-hanging, anti-condensation, anti-bubble and other anti-fouling ability is super strong.
• Simple structure, no moving parts, high reliability, less maintenance.
• A variety of signal outputs are available for easy access to different systems.
• It is not affected by the temperature, specific gravity, pressure and other factors of the measured liquid.
• The highest temperature resistance is ≤250℃, the highest pressure resistance is ≤4MPa, and the service life is long.
• Good sealing performance, protection grade IP68 (except 6052).
• Perfect over-current, over-voltage, power polarity protection measures.
• Measuring cycle: 0.5 seconds
• Long-term stability: ≤0.1%FS/year
• Temperature drift: ≤0.02%FS/℃ (in the range of -40℃～+80℃)
• Measurement accuracy:

When the measurement range is within 300mm, the absolute error is within ±3mm (including 3mm);

When the measurement range is 300-700mm, the accuracy level is 1.0;

When the measurement range is 700-2000mm, the accuracy level is 0.5;

Technical Parameters:

●Detection range: 0.01~30 m

●Accuracy: level 0.2, level 0.5

●Pressure range: -0.1MPa~32MPa

●Probe temperature: -50~250 ℃

●Ambient temperature: -20~60 ℃

●Storage Temperature: -55℃～+125 ℃

●Output signal: 4～20mA,4 ~ 20mA with HART communication/485/CAN bus communication

●Supply voltage: 12～28VDC (should be powered by the safety barrier)

●Fixation: Screw mounting M20×1.5,M27×2,

Flange mounting DN25,DN40,DN50.Special specifications can be customized

●Wetted material: 316 Stainless steel,1Gr18Ni19Tior or PTFE

●Long-term stability: ≤0.2%FS/Year,

●Temperature drift:≤0.02%FS/℃ ( range of 0～70℃)

●Explosion levels: Intrinsically Safe ExiraⅡC T6, Flameproof Ext II C T5

●Protection:IP67

●Intrinsically Safe parameters:Ui:28VDC,Ii:93mA, Pi: 0.65W, Ci: 0.042uf, Li: 0mH

Installation

Before installation, you must check the product model, technical parameters, installation port, and application environment in detail to ensure that the on-site sensor matches the installation environment. If you find any problems, contact the sales staff as soon as possible to confirm subsequent installation matters or return and exchange matters, so as to avoid damage caused by wrong use. Inaccurate measurement or product damage occurs.

Warning: It is forbidden to install live, disassemble, collide, drop, or hit hard

The liquid level sensor has a variety of installation and fixing methods to adapt to different site conditions. The specific installation is as follows.

1. The sensor is installed on a sealed metal container, which can be connected by flange or thread. When the measuring medium has no stirring, liquid impact, violent swing, etc., it can be installed in a plug-in type, as shown in the figure below: plug-in type installation

2. The sensor is installed on the container where there is stirring, liquid impact, violent swing, etc. in the measurement medium. The sensor can be installed with a connected pipe outside the container through a flange or threaded connection, as shown in the figure below: external installation

3. The measurement medium has stirring, liquid impact, violent swing, etc., and the container does not have the conditions for external installation of connecting pipes. When plug-in installation must be used, the sensor must be equipped with a protective tube. The measuring range exceeds 1000mm, and the container must be reserved. Or install a fixed bracket to ensure that the sensor is damaged due to violent impact of liquid.

4. The sensor can be connected by flange or thread when the non-metallic container or the installation surface is insulated from the inner edge of the container. The sensor option must use an auxiliary electrode or a protective sleeve structure. If the required structure is not adopted, the normal operation of the sensor cannot be guaranteed. Output, you need to install the auxiliary electrode yourself (use one end of the metal wire to connect the sensor shell/flange, and add a counterweight to the bottom of the container at the other end, and reserve a certain length for the wire to avoid damaging the wire), as shown in the figure below: On a non-metallic container , threaded or flange mounted

5. The sensor can be connected to the mounting bracket by flange or thread on the open container. The sensor option must use an auxiliary electrode or a protective sleeve structure. If the required structure is not adopted, the normal working output of the sensor cannot be guaranteed, and an auxiliary device needs to be installed by itself. Electrodes (connect one end of the metal wire to the sensor shell/flange, add a counterweight object to the bottom of the container at one end, reserve a certain length for the wire to avoid damage to the wire), as shown in the figure below: on the open container, install the bracket (the installation position is at a distance from The distance from the pool wall must be greater than 10CM, otherwise the measurement will be inaccurate.

Applications:

One major application of the Kacise Fluid Level Meter is in the oil and gas industry. It can be used to measure the level of fuel in storage tanks, ensuring that there is always enough fuel for use in various industrial processes. The capacitive fuel sensor is highly sensitive and accurate, making it ideal for this type of use.

Another application of the Kacise Fluid Level Meter is in wastewater treatment plants. It can be used to measure the level of water in various tanks and containers, ensuring that the correct amount of water is used in the treatment process. The capacitive water level sensor is highly accurate and can be relied upon to provide precise measurements in this type of environment.

The Kacise Fluid Level Meter is also suitable for use in the chemical industry, where it can be used to measure the level of various chemicals in storage tanks. The wetted materials of 316 Stainless Steel, 1Gr18Ni19Tior or PTFE make it resistant to corrosion from a wide range of chemicals, ensuring that it is a durable and long-lasting instrument.

The Kacise Fluid Level Meter is also ideal for use in the food and beverage industry, where it can be used to measure the level of liquids in tanks and containers. The instrument's high level of accuracy and reliability make it ideal for use in this type of environment.

The Kacise Fluid Level Meter also comes with a range of features that make it easy to use and maintain. It has a protection rating of IP67, which means that it is resistant to dust and water, making it suitable for use in harsh environments. Its power supply voltage of 12～28VDC ensures that it is compatible with a wide range of power sources, and its output signal of 4～20mA, 4 ~ 20mA with HART Communication/485/CAN Bus Communication makes it easy to integrate with other systems.

The Kacise Fluid Level Meter has a minimum order quantity of 2 and comes packaged in a carton. Its delivery time is 5 working days, and payment terms require 100% payment in advance. Overall, the Kacise Fluid Level Meter is a reliable, accurate, and durable instrument that is suitable for use in a wide range of application occasions and scenarios.

Support and Services:

Our Fluid Level Meter product comes with comprehensive technical support and services to ensure that your experience with our product is seamless and hassle-free. Our team of experts is always available to assist you with any technical queries or concerns you may have regarding our product.

We provide installation support to ensure that you correctly set up and configure our Fluid Level Meter product. Additionally, we offer maintenance and repair services to ensure that your product is always in excellent working condition.

We also provide training services to help you and your team get the most out of our product. Our training programs cover everything from basic usage to advanced troubleshooting techniques.

At our company, we are committed to providing exceptional customer service and technical support for our products. Contact us today to learn more about our Fluid Level Meter technical support and services.

Packing and Shipping:

Product Packaging for Fluid Level Meter:

• 1 Fluid Level Meter
• 2 Mounting Screws
• User Manual

Shipping Information for Fluid Level Meter:

• Weight: 0.5 lbs
• Dimensions: 6 x 4 x 2 inches
• Shipping Method: Standard
• Delivery Time: 5-7 Business Days
