Place of Origin:
CHINA
ชื่อแบรนด์:
KACISE
ได้รับการรับรอง:
CE
Model Number:
KCF6052-1-330mm
วิดีโอ
วิดีโอ

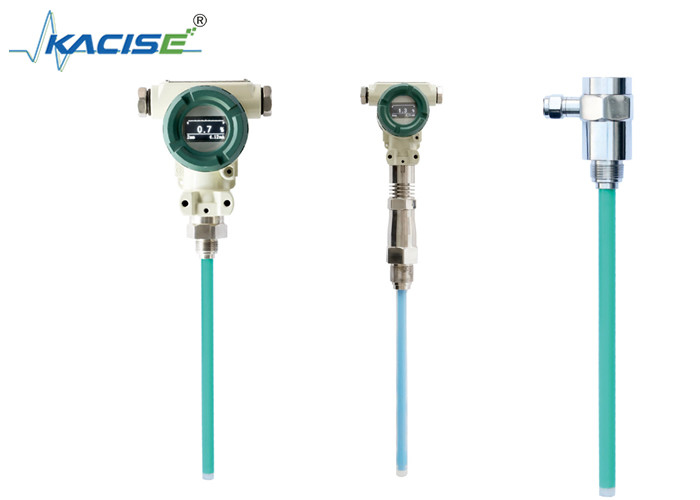

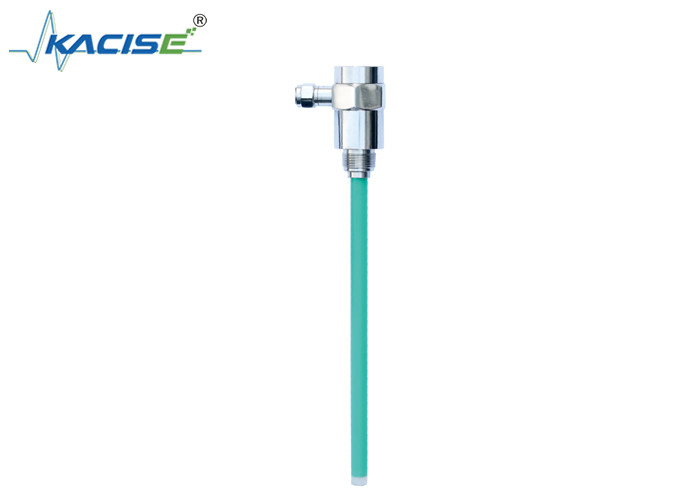

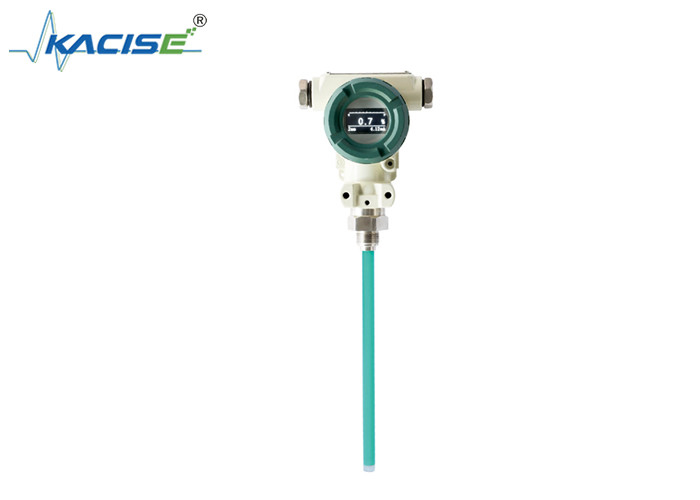

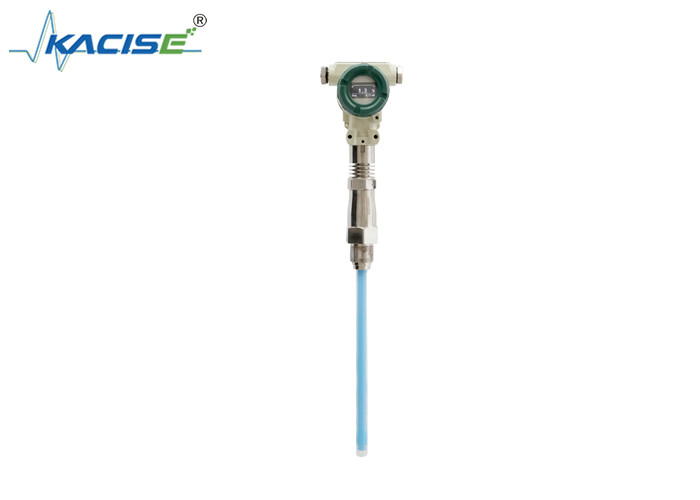

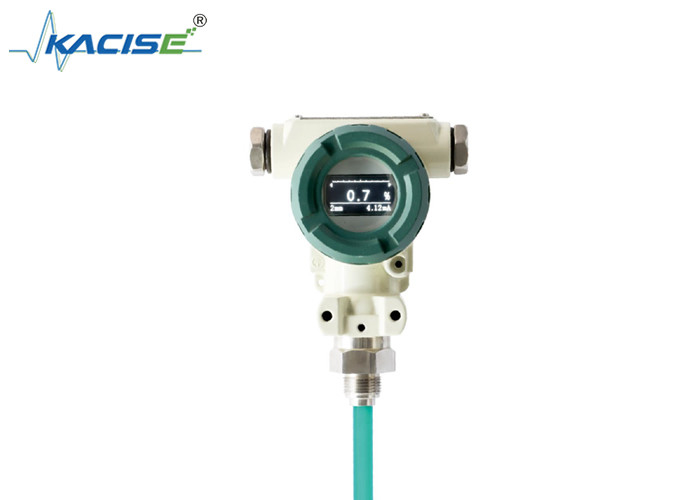

The KCF6052 capacitive liquid level sensor is designed for measuring liquids in challenging environments, such as those involving sewage, high viscosity, easy crystallization, easy adhesion, variable medium, foam, or aerosol influence. The device features a durable construction with no moving or elastic parts, making it not only impact resistant but also easy to install, highly reliable, precise, and cost-effective. Moreover, it can replace various other level sensors, including radio frequency admittance, radar, ultrasonic, and magnetostrictive sensors for accurate media measurement.
The product's core component leverages a cutting-edge radio frequency capacitance detection circuit that is converted to a standard electrical signal through precise temperature compensation and linear correction via an internal processor. With tomographic scanning technology, this product can automatically detect the dielectric constant and temperature changes of the medium, automatically calibrate, and adapt to various complex environments without recalibration. It also has excellent anti-hanging, anti-condensation, anti-bubble features and an exceptional protection level of IP68, making it suitable for long-term and stable measurement even in the harshest environments.
When the measurement range is within 300mm, the absolute error is within ±3mm (including 3mm);
When the measurement range is 300-700mm, the accuracy level is 1.0;
When the measurement range is 700-2000mm, the accuracy level is 0.5;
●Detection range: 0.01~30 m
●Accuracy: level 0.2, level 0.5
●Pressure range: -0.1MPa~32MPa
●Probe temperature: -50~250 ℃
●Ambient temperature: -20~60 ℃
●Storage Temperature: -55℃～+125 ℃
●Output signal: 4～20mA,4 ~ 20mA with HART communication/485/CAN bus communication
●Supply voltage: 12～28VDC (should be powered by the safety barrier)
●Fixation: Screw mounting M20×1.5,M27×2,
Flange mounting DN25,DN40,DN50.Special specifications can be customized
●Wetted material: 316 Stainless steel,1Gr18Ni19Tior or PTFE
●Long-term stability: ≤0.2%FS/Year,
●Temperature drift:≤0.02%FS/℃ ( range of 0～70℃)
●Explosion levels: Intrinsically Safe ExiraⅡC T6, Flameproof Ext II C T5
●Protection:IP67
●Intrinsically Safe parameters:Ui:28VDC,Ii:93mA, Pi: 0.65W, Ci: 0.042uf, Li: 0mH
Before installation, you must check the product model, technical parameters, installation port, and application environment in detail to ensure that the on-site sensor matches the installation environment. If you find any problems, contact the sales staff as soon as possible to confirm subsequent installation matters or return and exchange matters, so as to avoid damage caused by wrong use. Inaccurate measurement or product damage occurs.
Warning: It is forbidden to install live, disassemble, collide, drop, or hit hard
The liquid level sensor has a variety of installation and fixing methods to adapt to different site conditions. The specific installation is as follows.
1. The sensor is installed on a sealed metal container, which can be connected by flange or thread. When the measuring medium has no stirring, liquid impact, violent swing, etc., it can be installed in a plug-in type, as shown in the figure below: plug-in type installation
2. The sensor is installed on the container where there is stirring, liquid impact, violent swing, etc. in the measurement medium. The sensor can be installed with a connected pipe outside the container through a flange or threaded connection, as shown in the figure below: external installation
3. The measurement medium has stirring, liquid impact, violent swing, etc., and the container does not have the conditions for external installation of connecting pipes. When plug-in installation must be used, the sensor must be equipped with a protective tube. The measuring range exceeds 1000mm, and the container must be reserved. Or install a fixed bracket to ensure that the sensor is damaged due to violent impact of liquid.
4. The sensor can be connected by flange or thread when the non-metallic container or the installation surface is insulated from the inner edge of the container. The sensor option must use an auxiliary electrode or a protective sleeve structure. If the required structure is not adopted, the normal operation of the sensor cannot be guaranteed. Output, you need to install the auxiliary electrode yourself (use one end of the metal wire to connect the sensor shell/flange, and add a counterweight to the bottom of the container at the other end, and reserve a certain length for the wire to avoid damaging the wire), as shown in the figure below: On a non-metallic container , threaded or flange mounted
5. The sensor can be connected to the mounting bracket by flange or thread on the open container. The sensor option must use an auxiliary electrode or a protective sleeve structure. If the required structure is not adopted, the normal working output of the sensor cannot be guaranteed, and an auxiliary device needs to be installed by itself. Electrodes (connect one end of the metal wire to the sensor shell/flange, add a counterweight object to the bottom of the container at one end, reserve a certain length for the wire to avoid damage to the wire), as shown in the figure below: on the open container, install the bracket (the installation position is at a distance from The distance from the pool wall must be greater than 10CM, otherwise the measurement will be inaccurate.
The Kacise Fluid Level Meter (Model Number: KCF6052-1-625mm) is a versatile device that is designed to meet various application needs. It is made in China (Mainland) and has a minimum order quantity of 2 units. The product is packaged in a carton and has a delivery time of 5 working days. Payment terms require a 100% payment in advance.
The Fluid Level Meter is a capacitive level switch that is used to measure the level of liquids in tanks and vessels. It is suitable for use in different scenarios, including:
In summary, the Kacise Fluid Level Meter (Model Number: KCF6052-1-625mm) is a versatile and reliable device that is suitable for use in various application scenarios. Its high accuracy, hygienic design, and ability to operate in harsh environments make it an ideal solution for industries such as automotive, marine, aviation, chemical processing, food and beverage, and pharmaceuticals.
We also offer a range of services to ensure the optimal performance of your Fluid Level Meter, including calibration, repair, and maintenance. Our skilled technicians use the latest equipment and techniques to provide fast and reliable service, minimizing downtime and maximizing productivity.
Whether you need assistance with installation, troubleshooting, or ongoing maintenance, our experienced team is here to help. Contact us today to learn more about our product technical support and services.
Product Packaging:
Shipping Information:
