Place of Origin:
CHINA
ชื่อแบรนด์:
KACISE
ได้รับการรับรอง:
CE
Model Number:
KCF6021-1-625mm
วิดีโอ
วิดีโอ

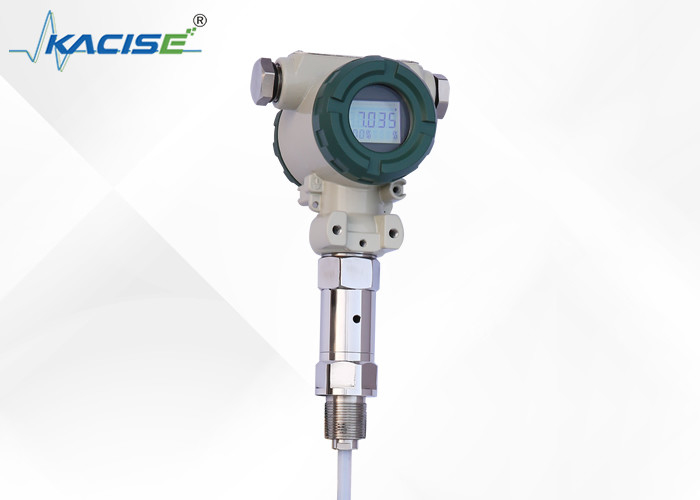

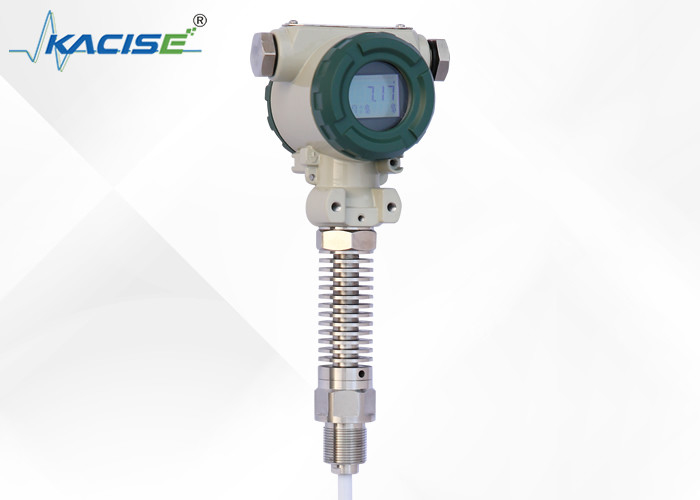

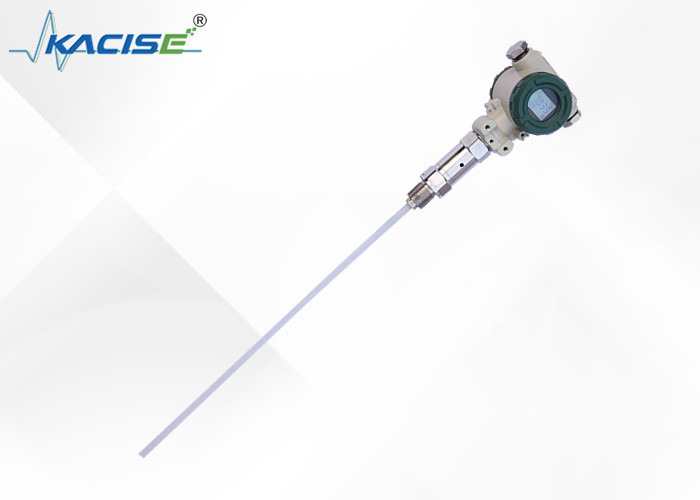

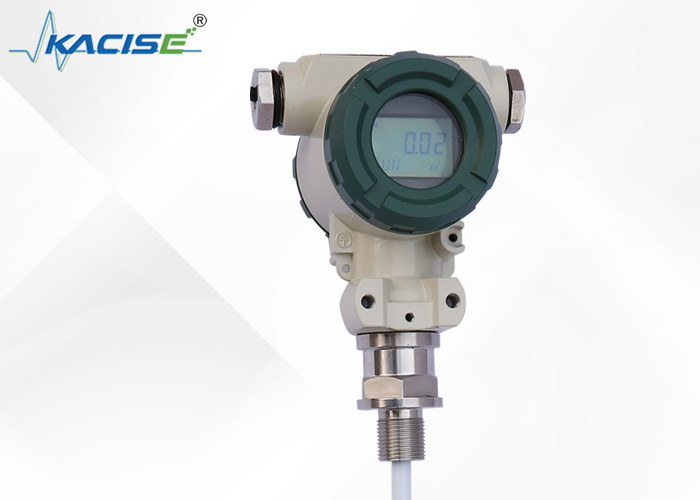

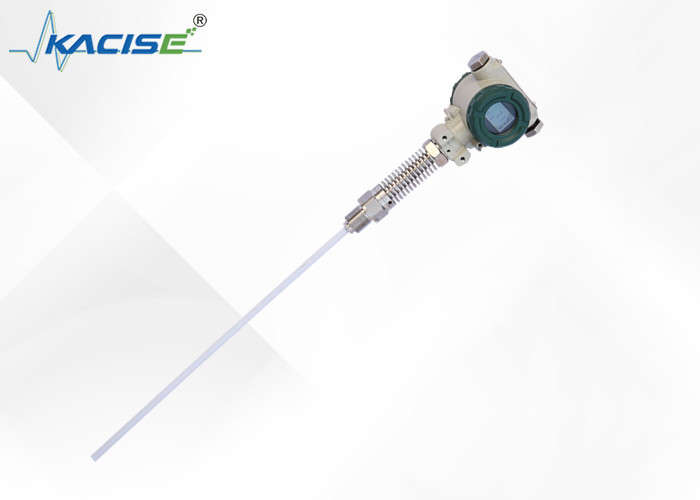

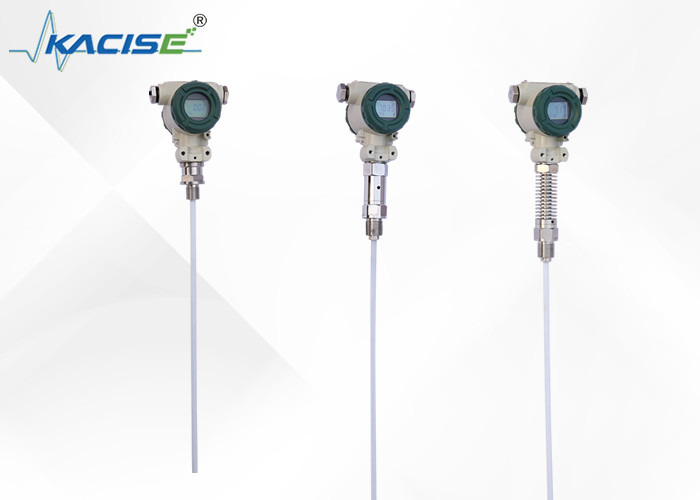

The KCF600 series capacitive level transmitter is designed for continuous detection of liquids in harsh conditions such as high temperature and pressure, high corrosion, easy to crystallize, and easy to plug. It is ideal for measuring water, acid and alkali solutions, and the water level in a boiler. Furthermore, it has no movable or flexible parts, making it highly durable and reliable, as well as easy to install.
The KCF600 series capacitive level transmitter can easily replace traditional float, input, and differential pressure level transmitters in various situations. With advanced RF capacitive sensing circuitry, the key parts are precisely compensated by temperature and linearity corrected, and then transformed into a standard electrical signal, typically a 4~20mA output. Furthermore, the transmitter can be configured to communicate using the HART, CANBUS, and 485 communication protocols.
The full range of the KCF600 series transmitters have a self-calibration feature, which allows users to easily calibrate the "zero" and "range" settings using just two keys. This feature ensures the transmitter performs accurately and effectively in complex situations.
Simple and Reliable Structures: The device has simple structures and does not contain any movable or elastic components. Therefore, it has a high level of reliability and requires minimal maintenance. Under normal situations, it does not need regular medium and small repairs.
Diverse Signal Output: This device offers a variety of signal output options, which makes it easy to configure with different systems.
Convenient for High Temperature and High Pressure Containers: The device is convenient to install in high temperature and high-pressure containers. The measured data is not affected by the measuring liquid's temperature, specific gravity, shape of the container or pressure influences.
Suitable for Measuring Corrosive Liquids: This device is particularly suitable for measuring acid, alkali, and other corrosive liquids without any damage to the components.
Overcurrent, Overvoltage and Power Polarity Protection: This device provides perfect protection against overcurrent, overvoltage, and power polarity problems to ensure the safety of the device and its users.
The detection range of this device extends from 0.01 to 30 meters.
Two levels of accuracy are provided by this device, level 0.2 and level 0.5.
The pressure range supported by this device is from -0.1 MPa to 32 MPa.
For probe temperature, the range specified is from -50 to 250 degrees Celsius.
The ambient temperature range that this device can handle is from -20 to 60 degrees Celsius.
In terms of storage temperature, the range supported by this device is from -55 to +125 degrees Celsius.
The output signal is provided in the form of 4-20mA, 4-20mA with HART communication/485/CAN bus communication
The device requires a supply voltage of 12-28VDC, and should be powered by a safety barrier.
The device can be mounted using screw mounting M20x1.5, M27x2, or flange mounting DN25, DN40, DN50. Special specifications can be customized as per requirement.
For wetted material, 316 stainless steel, 1Gr18Ni19Tior, and PTFE are used.
The long-term stability of the device is less than or equal to 0.2%FS/Year.
The temperature drift of the device is less than or equal to 0.02%FS/degree Celsius within a range of 0 to 70 degrees Celsius.
The explosion levels supported by the device include Intrinsically Safe ExiraⅡC T6 and Flameproof Ext II C T5.
The device is protected by IP67 standard.
The intrinsically safe parameters require Ui:28VDC, Ii:93mA, Pi:0.65W, Ci:0.042uf, and Li:0mH.
The cable and rod level transmitter has a variety of fixed ways to adapt to different site conditions. When the site cannot provide the process facilities such as the M20 × 1.5 female thread or flange, you can choose three methods of installation (wall-mounted, horizontal pipe rack and vertical tube rack, which make you handy in the on-site installation.(With pictures)
When measuring the media of the larger mobility, the user can choose the weight attachment in order to prevent the sensor form violent swing, which can play the role of the stability of the sensor. The heavy objects must be put into the bottom of the container when adding weight, so as not to break the sensor’s wire.
When the site conditions are bad, the user should use the sensor shield to protect the sensor in order to avoid foreign body damage or affect the measurement accuracy.
If the containers are not metal, we need to put the transmitter enclosure with a wire access to the bottom of the container when using a KCF600 rod level transmitter; otherwise the measurement is not accurate.
This product has been calibrated at the factory; he need for field adjustment may take the following methods:
A: Intelligent circuit debugging method:
Site - filled ------ When the liquid level at the highest place, holding down the "Z" key and "S" key for 8 seconds after the same time release, and then "S" key click ,the output current is automatically adjusted to 20mA.
B: Analog circuit debugging method:
When the liquid level in the upper limit, use the screwdriver slowly rotating "S" potentiometer and observe the ammeter readings close to 20mA
And operate it for 2-3 times more, until the zero and span were accurate 4mA and 20mA. After adjustment, tighten the cover of the transmitter should be.
1. Products supply with product certification and manual, which have product number, technical parameters, wiring diagram, and the date of manufacture, please check to avoid the mistake.
2. The installation should be based on the product connection and thread types, check the site interface is consistent with the product interface or not. Tighten the threaded connection slowly, pay attention to sealing, the torque cannot be directly added to the transmitter housing and can only be added to the six-party transmitter interface.
3. Wiring should be strictly in accordance with company instructions.
4. This product is a precision Energy conversion instrument, prohibit disassemble, collision, fall and hard rejection to play.
5. Transmitter Work immediately after power on, but output could be stability after warming up for 30 minutes.
6. Abnormal use ,turns off the power, check, or contacts our technical department directly.7. Transportation, storage should be to restore the original packaging and stored in a cool, dry, ventilated warehouse.
8. The installation process should pay attention to avoid the breaking of the skin of the sensor wire.
9. When installing the sensor wire, the distance from pool wall should be at least 10CM above, otherwise the measurement would be not accurate.
10. The grounding line of the whole PTFE structure and the rod level must be conduct with measured media; otherwise the measurement would be not accurate.
11. The installation site should take effective lightning protection measures.
12. The enclosures of any transmitter in this series must be grounded; grounding resistance should be less than 4Ω.
13. Safety barrier should be made explosion-proof certification; its installation requirements should follow the requirements of instructions.
14. When the transmitter is used to "0" zone to the barrier-powered power transformers must meet the requirements of GB3836.4-2000 NO. 8.1.
The Kacise Fluid Level Meter is perfect for capacitive level measurement in a range of scenarios. It can be used in fuel tanks, chemical tanks, water tanks and much more. Its accuracy of ±2%, ±5% ensures that you will get precise readings every time. The range of this product is 0.01~30 M, making it a great choice for a wide variety of applications.
The Kacise Fluid Level Meter is ideal for use in GPS tracking solutions. It is a capacitance fuel level sensor that can help track fuel levels in vehicles. This is important for fleet management and can help to reduce fuel costs. The Kacise Fluid Level Meter is also great for use in fuel tanks for generators and other equipment.
The Kacise Fluid Level Meter has a temperature drift of ≤0.02%FS/℃ (Range Of 0～70℃) and an ambient temperature range of -20~60 ℃. It requires a power supply voltage of 2～28VDC and should be powered by the safety barrier to ensure maximum safety and reliability.
In conclusion, the Kacise Fluid Level Meter is a versatile and reliable product that can be used in a wide range of applications. Its accuracy, range and temperature drift make it a great choice for those in need of a capacitive liquid level sensor. Whether you need to measure fuel levels in vehicles or track levels in chemical tanks, the Kacise Fluid Level Meter is the perfect solution. With a quick delivery time and easy payment terms (100% payment in advance), this product is a must-have for anyone in need of a high-quality fluid level meter.
The Fluid Level Meter product technical support and services include:
- Troubleshooting assistance for installation, operation, and maintenance issues
- Repair and replacement services for defective or damaged parts
- Product training and education for customers and users
- Technical documentation and manuals for reference and guidance
- Product customization and engineering support for specific applications
- Warranty and post-warranty support for eligible products
