Place of Origin:
CHINA
ชื่อแบรนด์:
KACISE
ได้รับการรับรอง:
CE
Model Number:
KCF6021-1-625mm
วิดีโอ
วิดีโอ

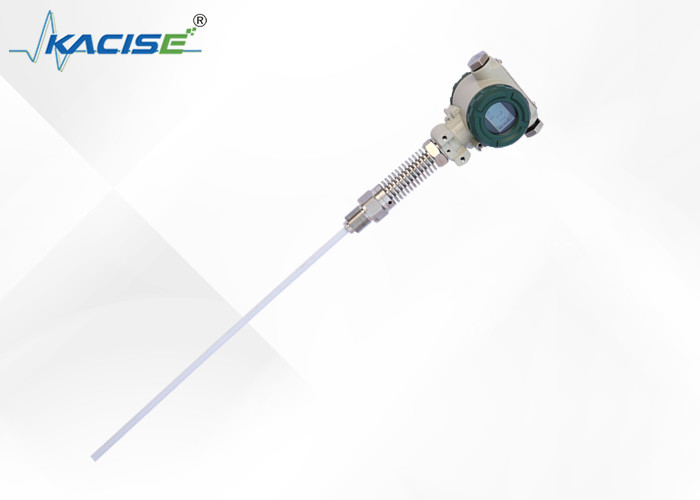

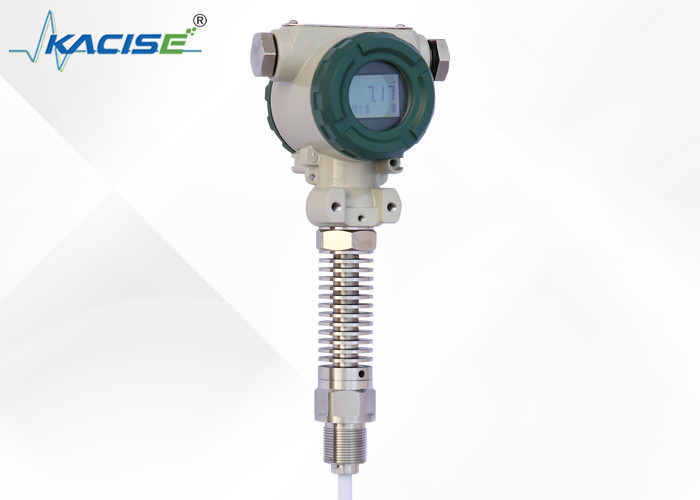

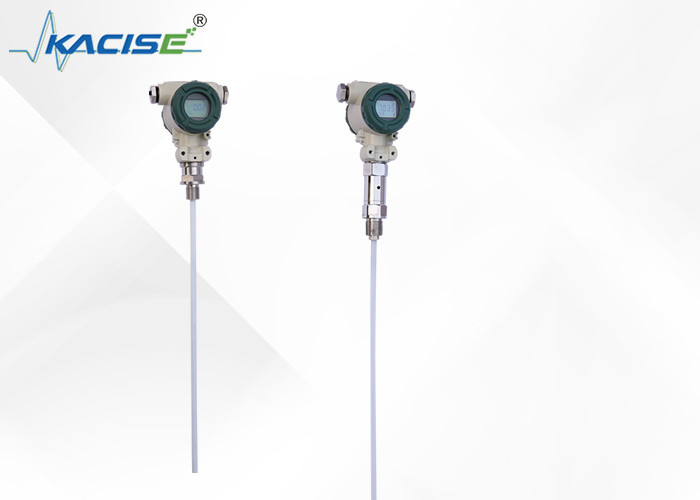

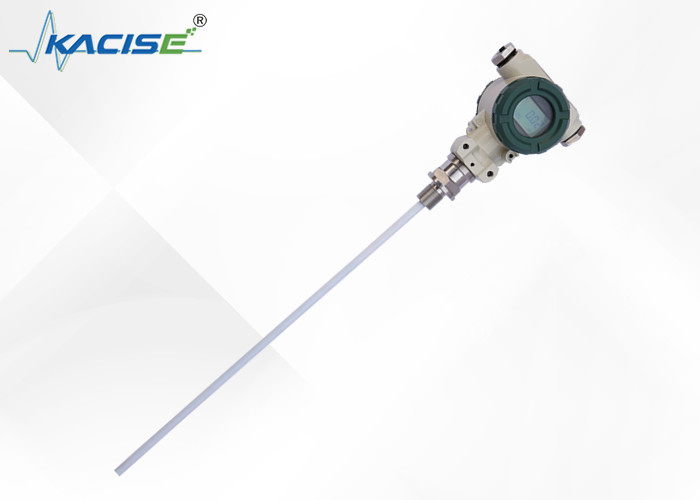

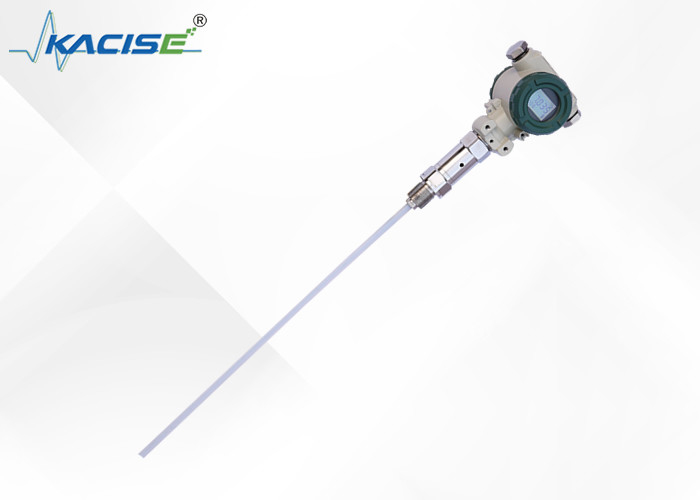

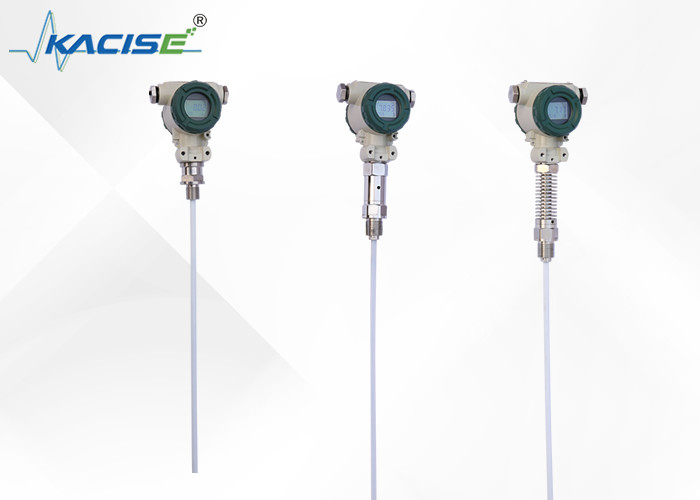

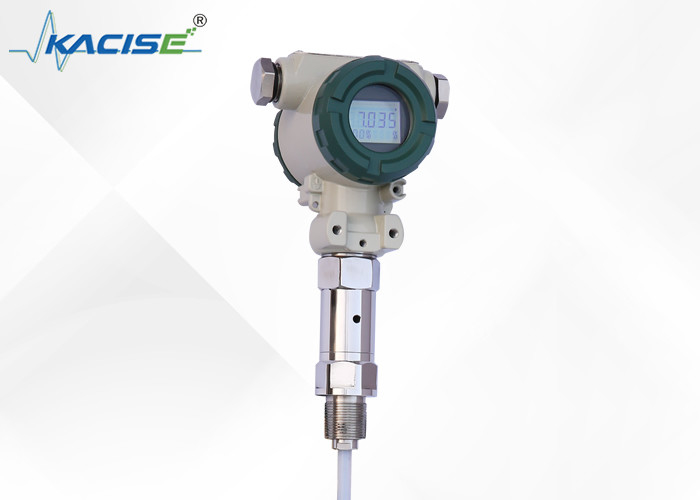

The KCF600 series capacitive level transmitter is a reliable and durable option for continuous liquid detection, even in harsh conditions such as high temperature and pressure, high corrosion, and easy crystallization or plugging. This transmitter is perfectly suited for measuring water, acid and alkali solutions, and water levels in boilers.
One of the key advantages of the KCF600 series is that it is designed with no movable or flexible parts, making it resistant to impacts and ensuring a longer lifespan than other types of transmitters. In addition, installation is easy and the cost is reasonable, making this an attractive and affordable option for a variety of situations.
The advanced RF capacitive sensing circuit of the KCF600 series is precisely compensated for temperature and linearity, resulting in high precision and reliability. This circuit transforms the detected liquid level into a standard electrical signal, usually 4 ~ 20 mA. Furthermore, users have the option of selecting HART, CANBUS, or 485 communication protocols to configure the system to their specific needs.
The KCF600 series also includes a self-calibration feature that allows users to easily obtain "zero" and "range" automatic calibration by using two simple keys. This feature makes it incredibly versatile and adaptable to all kinds of complex situations, replacing the need for traditional float type, input type, and differential pressure type of level transmitter.
The KCF600 series capacitive level transmitter is a reliable and durable option for continuous liquid detection, even in harsh conditions such as high temperature and pressure, high corrosion, and easy crystallization or plugging. This transmitter is perfectly suited for measuring water, acid and alkali solutions, and water levels in boilers.
One of the key advantages of the KCF600 series is that it is designed with no movable or flexible parts, making it resistant to impacts and ensuring a longer lifespan than other types of transmitters. In addition, installation is easy and the cost is reasonable, making this an attractive and affordable option for a variety of situations.
The advanced RF capacitive sensing circuit of the KCF600 series is precisely compensated for temperature and linearity, resulting in high precision and reliability. This circuit transforms the detected liquid level into a standard electrical signal, usually 4 ~ 20 mA. Furthermore, users have the option of selecting HART, CANBUS, or 485 communication protocols to configure the system to their specific needs.
The KCF600 series also includes a self-calibration feature that allows users to easily obtain "zero" and "range" automatic calibration by using two simple keys. This feature makes it incredibly versatile and adaptable to all kinds of complex situations, replacing the need for traditional float type, input type, and differential pressure type of level transmitter.
Simple structures, without any movable or elastic components, so also have high reliability and minimal maintenance. Normal situations do not require regular medium and small repairs for these structures. Their durability is largely due to the lack of components that may be easily damaged.
A variety of signal output to facilitate the different system configurations. These structures can be utilized in different systems, and, due to their versatile signal output options, can be easily configured to meet the needs of each individual system.
Convenient for high temperature and high pressure containers, measured data is not affected by measured liquid temperature, specific gravity, and shape of the container, or the influence of pressure. Unlike other measurement systems, these structures are not impacted by external influences that may affect the accuracy of measurements.
Especially suitable for the measurement of acid, alkali, and other corrosive liquids. These structures are uniquely suited to measure corrosive liquids and are ideal for facilities requiring the measurement of these substances.
The perfect protection of overcurrent, overvoltage and power polarity. Overcurrent, overvoltage, and power polarity are dangerous to many structures, but not these. They are designed to protect against these potential hazards and are therefore seen as a very reliable option.
●Detection range: 0.01~30 m
●Accuracy: level 0.2, level 0.5
●Pressure range: -0.1MPa~32MPa
●Probe temperature: -50~250 ℃
●Ambient temperature: -20~60 ℃
●Storage Temperature: -55℃～+125 ℃
●Output signal: 4～20mA,4 ~ 20mA with HART communication/485/CAN bus communication
●Supply voltage: 12～28VDC (should be powered by the safety barrier)
●Fixation: Screw mounting M20×1.5,M27×2,
Flange mounting DN25,DN40,DN50.Special specifications can be customized
●Wetted material: 316 Stainless steel,1Gr18Ni19Tior or PTFE
●Long-term stability: ≤0.2%FS/Year,
●Temperature drift:≤0.02%FS/℃ ( range of 0～70℃)
●Explosion levels: Intrinsically Safe ExiraⅡC T6, Flameproof Ext II C T5
●Protection:IP67
●Intrinsically Safe parameters:Ui:28VDC,Ii:93mA, Pi: 0.65W, Ci: 0.042uf, Li: 0mH
The cable and rod level transmitter has a variety of fixed ways to adapt to different site conditions. When the site cannot provide the process facilities such as the M20 × 1.5 female thread or flange, you can choose three methods of installation (wall-mounted, horizontal pipe rack and vertical tube rack, which make you handy in the on-site installation.(With pictures)
When measuring the media of the larger mobility, the user can choose the weight attachment in order to prevent the sensor form violent swing, which can play the role of the stability of the sensor. The heavy objects must be put into the bottom of the container when adding weight, so as not to break the sensor’s wire.
When the site conditions are bad, the user should use the sensor shield to protect the sensor in order to avoid foreign body damage or affect the measurement accuracy.
If the containers are not metal, we need to put the transmitter enclosure with a wire access to the bottom of the container when using a KCF600 rod level transmitter; otherwise the measurement is not accurate.
This product has been calibrated at the factory; he need for field adjustment may take the following methods:
A: Intelligent circuit debugging method:
Site - filled ------ When the liquid level at the highest place, holding down the "Z" key and "S" key for 8 seconds after the same time release, and then "S" key click ,the output current is automatically adjusted to 20mA.
B: Analog circuit debugging method:
When the liquid level in the upper limit, use the screwdriver slowly rotating "S" potentiometer and observe the ammeter readings close to 20mA
And operate it for 2-3 times more, until the zero and span were accurate 4mA and 20mA. After adjustment, tighten the cover of the transmitter should be.
1. Products supply with product certification and manual, which have product number, technical parameters, wiring diagram, and the date of manufacture, please check to avoid the mistake.
2. The installation should be based on the product connection and thread types, check the site interface is consistent with the product interface or not. Tighten the threaded connection slowly, pay attention to sealing, the torque cannot be directly added to the transmitter housing and can only be added to the six-party transmitter interface.
3. Wiring should be strictly in accordance with company instructions.
4. This product is a precision Energy conversion instrument, prohibit disassemble, collision, fall and hard rejection to play.
5. Transmitter Work immediately after power on, but output could be stability after warming up for 30 minutes.
6. Abnormal use ,turns off the power, check, or contacts our technical department directly.7. Transportation, storage should be to restore the original packaging and stored in a cool, dry, ventilated warehouse.
8. The installation process should pay attention to avoid the breaking of the skin of the sensor wire.
9. When installing the sensor wire, the distance from pool wall should be at least 10CM above, otherwise the measurement would be not accurate.
10. The grounding line of the whole PTFE structure and the rod level must be conduct with measured media; otherwise the measurement would be not accurate.
11. The installation site should take effective lightning protection measures.
12. The enclosures of any transmitter in this series must be grounded; grounding resistance should be less than 4Ω.
13. Safety barrier should be made explosion-proof certification; its installation requirements should follow the requirements of instructions.
14. When the transmitter is used to "0" zone to the barrier-powered power transformers must meet the requirements of GB3836.4-2000 NO. 8.1.
The Kacise Fluid Level Meter has a pressure range of -0.1MPa~32MPa and protection rating of IP67, ensuring its durability and suitability for use in harsh environments. The wetted materials are 316 Stainless Steel, 1Gr18Ni19Tior or PTFE, which make it resistant to corrosion and abrasion. It has a temperature drift of ≤0.02%FS/℃ (Range Of 0～70℃).
One of the primary uses of the Kacise Fluid Level Meter is as a Fuel Level Sender, making it an essential tool in the automotive, marine, and aviation industries. It is also suitable for measuring the levels of other liquids such as oils, chemicals, and water.
The Kacise Fluid Level Meter has an output signal of 4～20mA, with options for HART Communication/485/CAN Bus Communication. This feature allows for easy integration into existing control and monitoring systems.
In conclusion, the Kacise Fluid Level Meter is a reliable and accurate instrument suitable for various applications. Its capacitance level detector technology ensures precise measurements, and its durability makes it suitable for use in harsh environments. It is highly recommended for use in the automotive, marine, and aviation industries as a Fuel Level Sender.
Brand Name: Kacise
Model Number: KCF6021-1-625mm
Place of Origin: China (Mainland)
Minimum Order Quantity: 2
Packaging Details: Carton
Delivery Time: 5 working days
Payment Terms: 100% payment in advance
Protection: IP67
Pressure range: -0.1MPa~32MPa
Accuracy: ±2%, ±5%
Probe temperature: -50~250 ℃
Range: 0.01~30 M
