Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
certificate of explosion-proof, CE
Model Number:
KSQA13

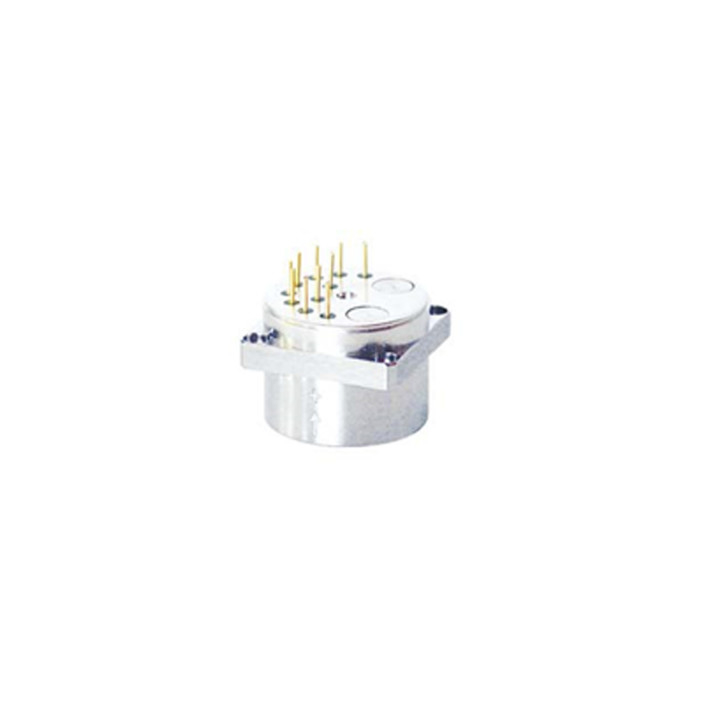

Quartz flexible accelerometers, primarily uniaxial torque feedback devices, leverage mass detection to identify external acceleration signals. These signals undergo demodulation and amplification through a servo circuit, resulting in an output current signal directly proportional to the detected acceleration. Widely applied in aerospace for high-precision navigation systems, as well as in inclinometers for oil drilling and strapdown inertial navigation systems in geological exploration. Major components include a differential capacitance sensor, a detection mass pendulum assembly, an electromagnetic torque device, and an electronic amplifier. Acceleration along the sensitive axis triggers a positional shift in the detection mass, detected by a position detector. This signal is then transmitted to the amplifier, which activates the force generator to reposition the detection mass to its original state.
● Small size and light weight
● Analog output
● Shock, vibration and high temperature resistance
● Wide load resistance range
● Square precision mounting flanges
| Performance | KSQA13 |
| Input Range (g) | ±10 |
| Bias (mg) | ≤10 |
| Temperature Sensitivity (μg/℃) | ≤100 |
| Three-hour Stability (1σ) (10-6) | ≤100 |
| Scale Factor (mA/g) | 2.3 ~ 3.5 |
| Temperature Sensitivity (10-6/℃) | ≤100 |
| Three-hour Stability (1σ) (10-6) | ≤100 |
| Input Voltage (V) | ±12 ~ ±18 |
| Operating Temperature (℃) | -45 ~ +100 |
| Size (mm) | Ø25×25 |
| Weight (g) | ≤60 |
| Outline | |
|
|

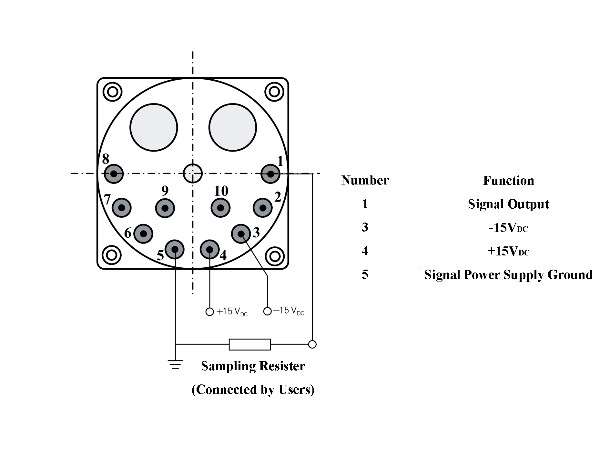

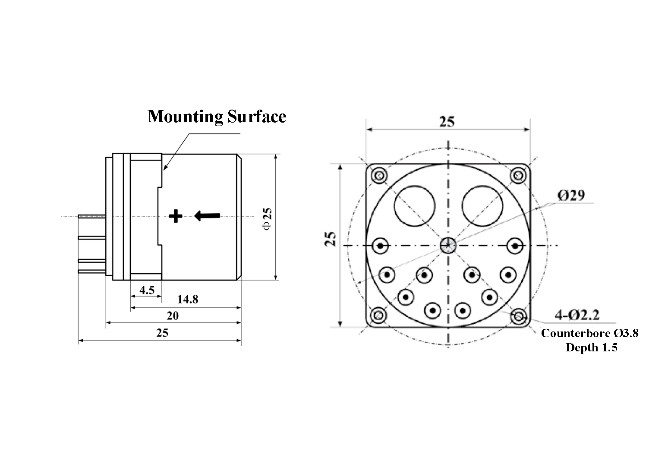

| JKSQA13 Configuration Drawings | KSQA13 Pin & Wiring Diagram |
| Environment | |
| Vibration Peak Sine | 15g@20Hz ~ 2000Hz |
| Shock | 500g, half-sine, 1ms ~ 3ms |
| Storage Temperature | -55℃ ~ +120℃ |
We offer a full range of technical support and service to ensure that our customers get the best out of their Accelerometer Sensor products. Our experienced team of support engineers offer free technical advice and guidance on all aspects of the product, from installation to troubleshooting.
We also provide diagnostic testing and repair services for all Accelerometer Sensor products. Our team of qualified technicians are able to diagnose and fix any issues you may be having with your Sensors. We can also provide on-site installation and maintenance services if required.
If you have any questions or require any assistance with your Accelerometer Sensor, please do not hesitate to contact us. Our technical support team is available 24 hours a day, 7 days a week to answer any questions you may have.
Accelerometer Sensor Packaging and Shipping
The Accelerometer Sensor will be packaged in a cardboard box with the following dimensions: Length: 10 inches, Width: 8 inches, and Height: 4 inches. The box will include a bubble wrap cushioning and a “Fragile” sticker on the outside. The box will also include a label containing the following information:
The package will be shipped using a reliable delivery service. It will be insured and tracked to ensure safe and timely delivery.
