Name: Highly Accurate Accelerometer Sensor Range ±50g Vibration Peak Sine 15g 20Hz - 2000Hz
Brand: Xi'an Kacise Optronics Co.,Ltd.
SKU: KSQA07
Price: 478.00 USD
Availability: InStock

บ้าน > ผลิตภัณฑ์ > เซ็นเซอร์วัดความเร่ง >

Highly Accurate Accelerometer Sensor Range ±50g Vibration Peak Sine 15g 20Hz - 2000Hz

Place of Origin:

China (Mainland)

ชื่อแบรนด์:

Kacise

ได้รับการรับรอง:

certificate of explosion-proof, CE

Model Number:

KSQA07

ติดต่อเรา

ขอคําอ้างอิง

Highly Accurate Accelerometer Sensor Range ±50g Vibration Peak Sine 15g 20Hz - 2000Hz

รายละเอียดสินค้า

Threshold:

<1(μg)

Scale Factor:

1.2 ~ 1.6(mA/g)

Weight:

≤75(g)

Storage Temperature:

-55~ +80(℃)

Scale Factor Temperature Sensitivity:

≤10 (10-6/℃)

Bias One-month Composite Repeatability:

≤10(1σ) (μg)

Six-month Composite Repeatability:

≤30 (1σ) (10-6)

Linearity:

≤10 (μg/g2)

เงื่อนไขการชําระเงินและการจัดส่ง

Minimum Order Quantity

1pcs

Packaging Details

each unit has individual box and all boxes are packed in standard packages or customers requests available

Delivery Time

5-8 working days

Payment Terms

T/T, Western Union, MoneyGram

Supply Ability

1000 Pieces per Week

สินค้าที่เกี่ยวข้อง

Honeywell QA2000-030 เครื่องตรวจจับเครื่องเร่งเครื่องบิน การใช้งานด้านอากาศ

หา ราคา ที่ ดี ที่สุด

Magnetic Suction Linear Accelerometer Sensor Uniaxial Module Vibration Performance

หา ราคา ที่ ดี ที่สุด

K-3JSJ-001 Lightweight 3 Axis Acceleration Sensor /Triaxial High Speed Accelerometer 0~3 V

หา ราคา ที่ ดี ที่สุด

Stable Accelerometer Sensor Fiber Optic Gyroscope Easy To Carry High Performance

หา ราคา ที่ ดี ที่สุด

ติดต่อเรา

86--17719566736

ติดต่อตอนนี้

คําอธิบายสินค้า

Product Description:

Progress Report on the Quartz Flexible Pendulum Accelerometer The Quartz Flexible Pendulum Accelerometer represents an advancement in force feedback technology, originating from the conventional liquid floating pendulum accelerometer. A notable departure lies in its detection system: the quartz flexible accelerometer is not suspended but instead elastically connected to a flexible beam support. This unique configuration introduces elastic moments, endowing the accelerometer with heightened accuracy, strong resistance to disturbances, a broad measurement range, and impressive overload capacity.

The present scenario witnesses widespread adoption of quartz flexible pendulum accelerometers in the measurement of various linear and vibration accelerations, along with parameters such as speed, distance, angular velocity, and angular displacement. These accelerometers have proven their efficacy in diverse fields, including military applications such as satellite microgravity measurement systems and high-precision inertial navigation systems, as well as civilian applications like rock-based drilling, oil drilling, continuous inclinometer systems, and the aerospace industry involving launch vehicles, ballistic missiles, and spacecraft.

Product Feature:

● Excellent index repeatability

● Analog output

● Build-in digital temperature sensor

● Wide load resistance range

● Triangle precision mounting flanges

● Application in the inertial navigation system of the new generation weapon

Technical Parameters:

Performance	KSQA07A	KSQA07B
Input Range (g)	±50	±20
Bias (mg)	≤5	≤5
Temperature Sensitivity (μg/℃)	≤10	≤20
One-month Composite Repeatability (1σ) (μg)	≤10	≤20
Six-month Composite Repeatability (1σ) (μg)	≤15	-
Scale Factor (mA/g)	1.2 ~ 1.6	1.2 ~ 1.6
Temperature Sensitivity (10^-6/℃)	≤10	≤30
One-month Composite Repeatability (1σ) (10^-6)	≤10	≤30
Six-month Composite Repeatability (1σ) (10^-6)	≤30	-
Linearity (μg/g²)	≤10	≤30
Threshold (μg)	Less than 1	Less than 5
Resolution (μg)	Less than 1	Less than 5
Input Voltage (V)	±12 ~ ±18	±12 ~ ±18
Operating Temperature (℃)	-45 ~ +80	-45 ~ +80
Size (mm)	Ø25.4×29	Ø25.4×29
Weight (g)	≤75	≤75

Outline

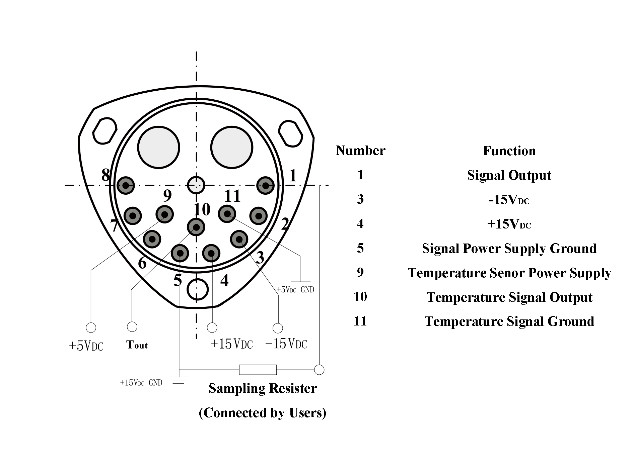

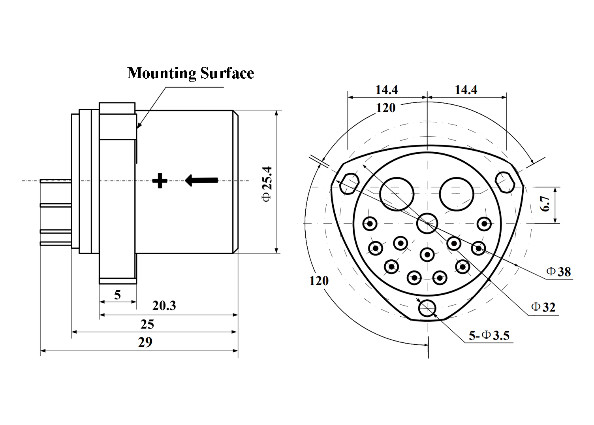

KSQA07 Configuration Drawings	KSQA07 Pin & Wiring Diagram

Environment
Vibration Peak Sine	15g@20Hz ~ 2000Hz
Shock	100g, half-sine, 8ms ~ 12ms
Storage Temperature	-55℃ ~ +80℃
