Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
certificate of explosion-proof, CE
Model Number:

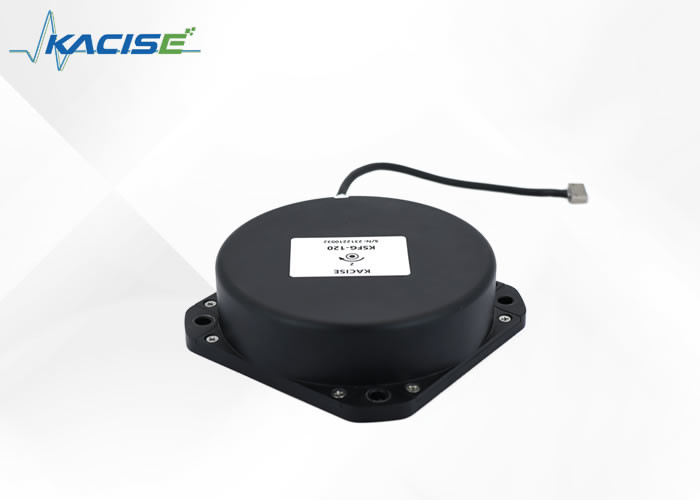

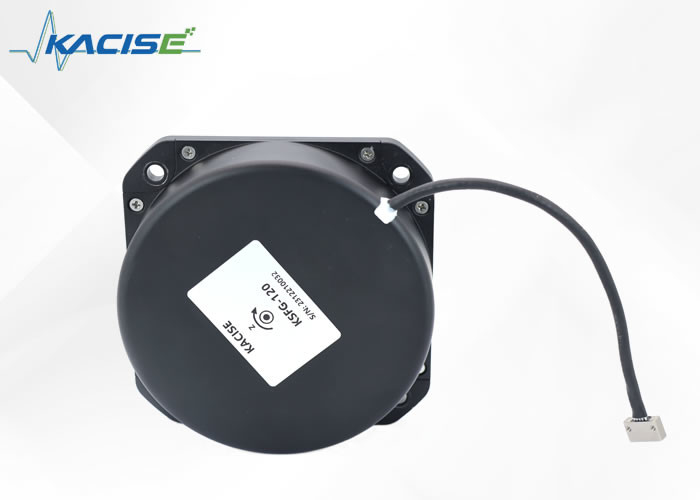

KSFG-120
This product is an inertial angle rate sensor utilizing the optical Sagnac effect for measuring the rotational angular velocity along the sensitive axis of the carrier. Employing a digital closed-loop detection circuit, it extracts the optical path difference of clockwise light caused by external physical angular speed. Modulation and demodulation of the optical path signal's voltage enable closed-loop feedback and control, achieving real-time angular velocity signal detection.
Composition and Purpose: Comprising an optical angular velocity sensitive unit and a signal detection module, the product offers information on uniaxial angle increments and internal temperature.
Application Scope: Primarily suitable for photoelectric cranes, conventional cranes, flying platforms, inertial navigation, inertial measurement systems, optical instruments, photographic devices, platform stabilization equipment, inertial measurement instruments, and various other applications.
| Sn# | Test item | H | L |
| 1 | Dimensions (mm) | 120×120×38 | 120×120×38 |
| 2 | Start time (s) | 5 | 5 |
| 3 | Bias drift (°/h) (10s smooth, fix temperature) | ≤0.001 | ≤0.003 |
| 4 | Bias drift (°/h) (10s smooth -45~+70℃) | ≤0.003 | ≤0.006 |
| 5 | Bias repeatability (°/h) | ≤0.001 | ≤0.003 |
| 6 | Random walk coefficient(°/h1/2) | ≤0.0003 | ≤0.0008 |
| 7 | Scale factor non-linearity (ppm) | ≤5 | ≤10 |
| 8 | Scale factor repeatability (ppm) | ≤5 | ≤10 |
| 9 | Operate temperature (℃) | -45～+70 | -45～+70 |
| 10 | Storage temperature (℃) | -50～+80 | -50～+80 |
| 11 | Dynamic range (°/s) | ±300 | ±300 |
| 12 | Supply voltage (V) | ±5 | ±5 |
| 13 | Steady-state power consumption (full temperature) (W) | <6 | <6 |
| 14 | Weight (g) | ＜1000 | ＜1000 |
We provide technical support and services for our Electronic Gyroscope Sensor. Our technical support team is composed of experts with years of experience in the industry. They can provide guidance and advice to help you get the most out of your Electronic Gyroscope Sensor. Our technical support team is available 24/7 to answer your queries and provide solutions for any issues you may have. We also offer online tutorials and manuals to help you understand how to use the Electronic Gyroscope Sensor. Additionally, our team can provide on-site installation and maintenance services to ensure your Electronic Gyroscope Sensor is functioning properly.
Packaging and Shipping for Electronic Gyroscope Sensor:
The Electronic Gyroscope Sensor will be packaged in a standard cardboard box with cushioning material to ensure it is securely and safely delivered. The package will be labeled with the product name and a tracking number. The package will be shipped with a trusted shipping carrier to ensure it is delivered on time.
