Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
certificate of explosion-proof, CE
Model Number:
KSJB2
The Accelerometer Sensor is an advanced acceleration measurement unit designed for reliable performance in harsh environments. It is capable of measuring acceleration up to ±70g with a threshold value of 5μg and a noise level of 5mV. The unit also offers a wide operating temperature range of -55°C to +85°C, allowing it to be used in a variety of applications.
This Accelerometer Sensor is a highly reliable and accurate device that is perfect for use in a wide range of applications, such as automotive, aerospace, industrial, and medical. The unit is designed to provide precise acceleration measurement with low power consumption and offers a robust range of features and functions. It is also capable of withstanding extreme temperatures and harsh environmental conditions. With its superior performance and reliability, the Accelerometer Sensor is the ideal choice for any application that requires accurate acceleration measurement.

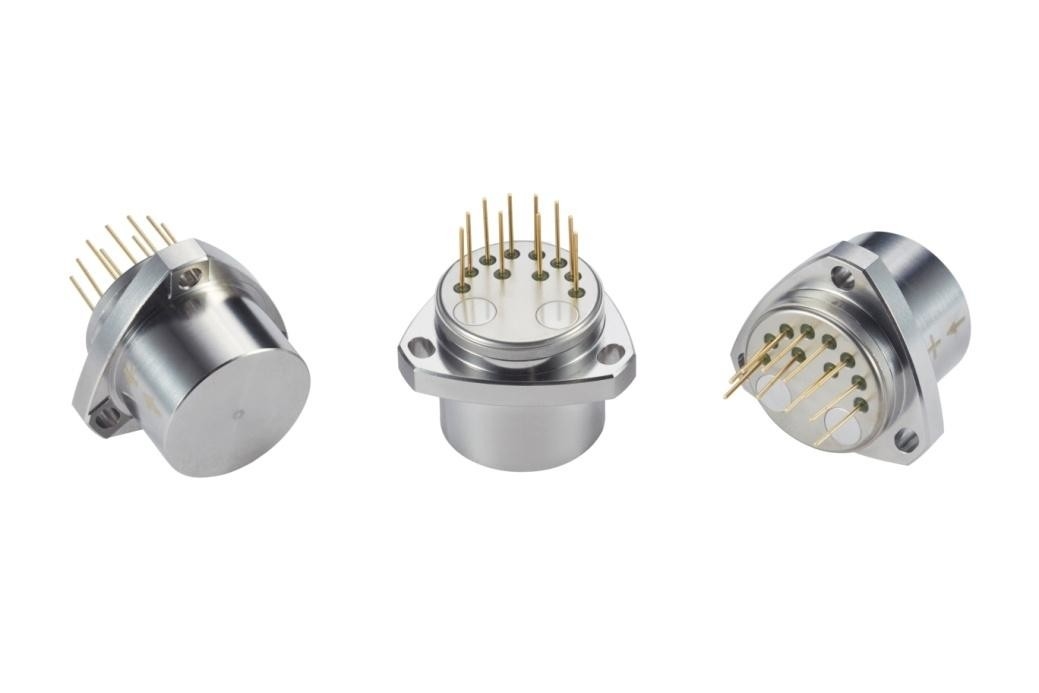

KSJB2 series quartz flexible accelerometer is a high-precision, inertial navigation level accelerometer, the product has excellent long-term stability, repeatability, start-up performance, environmental adaptability and high reliability characteristics, can be used for static testing can be used for dynamic testing, is also a standard vibration sensor and inclination sensor.
The output current of the product is linearly related to the force or acceleration received, and the user can select the appropriate sampling resistance through calculation to achieve high-precision output. The built-in temperature sensor can be used to compensate the offset value and scale factor to reduce the impact of ambient temperature according to user needs.

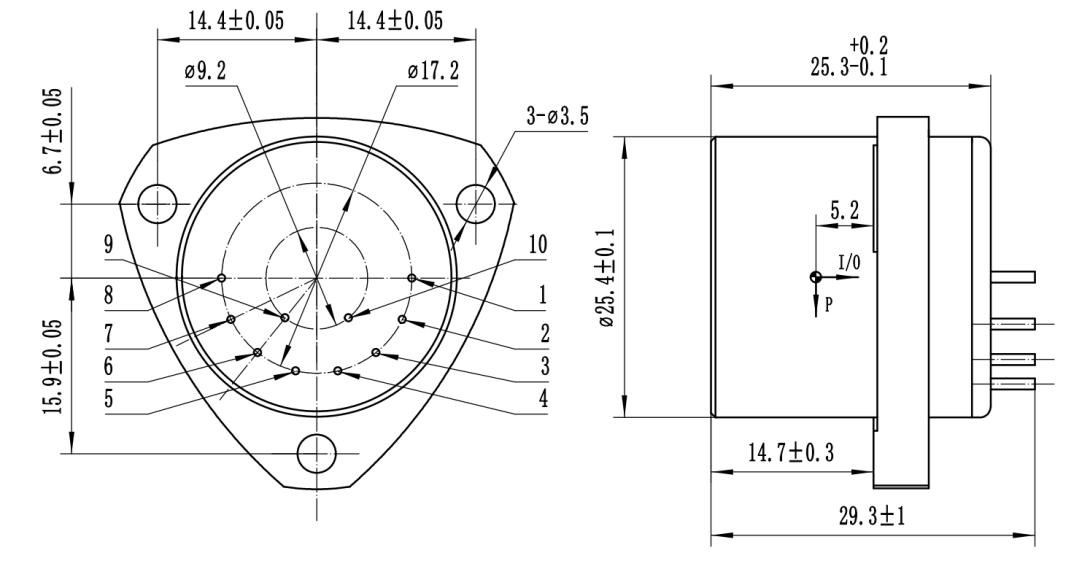

Outline diagram and pin definition:
Figure I: Universal accelerometer
Pin conventional definition: 1, signal output; 2. Empty; 3, -15V; 4, +15V; 5, power supply and signal ground; 6. Empty; 7. Empty; 8. Empty; 9, -9V output; 10, +9V output.
Note:
1. Scale factor is adjusted according to user requirements;
2.Temperature sensor: divided into AD590, pt1000, 18B20,
3. Test cycle: divided into 1 month, 3 months, 6 months, 12 months, according to user requirements for testing;
4. According to user installation requirements; The dimensions can be slightly adjusted according to user requirements, and other test requirements can be carried out according to customer requirements. |
|---|
We provide technical support and services for our Accelerometer Sensor product. Our technical support team is available 24/7 to answer any questions you may have about our product and to provide troubleshooting assistance. We also offer a variety of services such as installation, calibration, and maintenance. All of our services are provided with the highest degree of quality and professionalism. If you have any questions or need assistance with any aspect of our product, please do not hesitate to contact us.
Packaging and Shipping:
We package the Accelerometer Sensor in durable boxes designed to protect the product from any external damages during shipment. The boxes are filled with non-abrasive foam padding to provide additional protection. We also place a manual with instructions for use inside the box. We ship the Accelerometer Sensor worldwide via a reliable courier service in order to ensure it reaches you in a timely manner.
