Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
certificate of explosion-proof, CE
Model Number:
KsINS-G25A
วิดีโอ
วิดีโอ

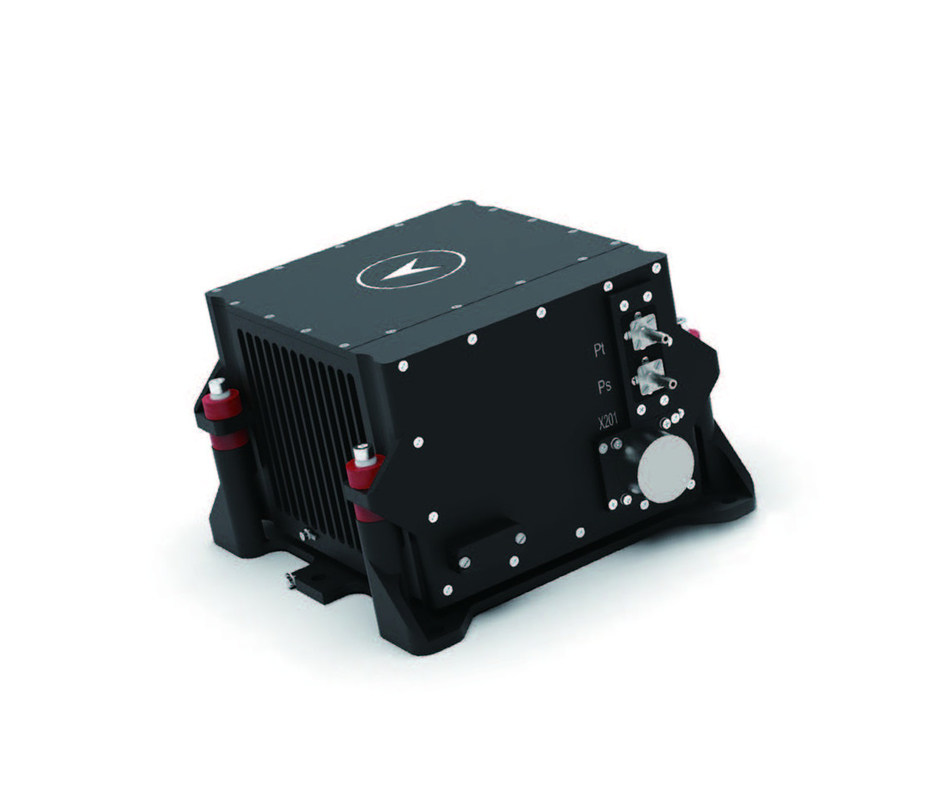

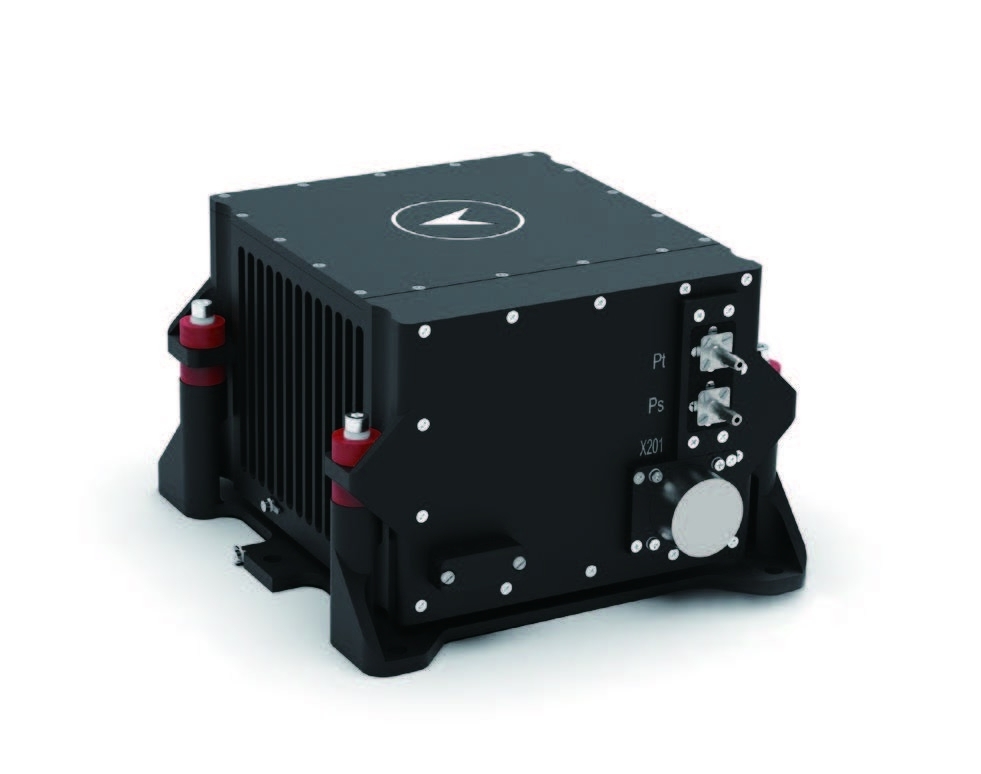

KsINS-G25A integrated control equipment
product description:
KsINS-G25A is an integrated control unit with a medium and high precision optical fiber integrated navigation system as the core, integrating flight control, integrated navigation, atmospheric sensing, large capacity file storage, power off USB reading and many other functions in one. After the integrated control unit is powered on, the self-test is carried out, and the alignment begins after the self-test and parameter binding is completed. After the alignment is completed, the integrated navigation module enters the integrated navigation state after receiving the "turn to navigation" instruction.
Features:
● Integrated flight control, integrated navigation, atmospheric sensing, large-capacity file storage, power-off USB reading and other functions
● Short preparation time
● High precision
● Small and compact
● Low power consumption, can work for a long time
● Has rich external interfaces
Application fields and application modes:
It is applied to an army's improved medium-range high-speed UAV and can be widely used in the field of mid-range and high-precision UAV.
Performance indicators :
| Align time | 270s |
| Position accuracy | ≤ 1nmil(1σ,1h) |
| Speed accuracy | ≤ 4m/s(1σ,1h) |
| Heading maintenance accuracy | <0.05°(1σ) |
| Attitude maintenance accuracy | ≤ 0.03°(1σ) |
| Atmospheric measurement accuracy (barometric pressure) | [0,6000]m ≤ 30m; (6000,13000]m ≤ 100m |
| Atmospheric measurement accuracy (Mach number) |
[0,6000]m, Ma[0.25,0.9] ≤ 0.015; (6000,13000]m, Ma[0.5,0.9] ≤ 0.015 |
Application environment :
| Working/storage temperature(℃) | Storage temperature: -50℃~ 65℃; Working temperature: -55℃~ 55℃ (-40℃ start) |
| MTBF(h) |
MTBF: 2681h; can be reused no less than 50 times, each flight mission time ≥ 6h; Reliability is not less than 0.9997 (confidence level 0.8) |
| Dynamic Range | Angular rate: 300º/s; acceleration: 20g |
| Mechanical properties | Vibration: 7.7g, 3 axes, 1h per axis; Shock: 26.7g, 11ms |
Physical properties:
| Dimensions | 220mm*230mm*147mm |
| Installation dimensions | 218mm*188mm |
| weight | ≤ 6.9kg |
External Interface:
| powered by | DC 18V ~ 36V |
| Power consumption | ≤ 30W |
|
Input/output interface |
Intelligent RS422 serial port 10 channels, baud rate can be set, default Considered 614.4Kbps; 1 channel RS422 differential level acquisition Set; CAN bus communication 2 channels, communication baud rate can be set, Maximum 1Mbps, CAN2.0B protocol specification, CAN Interface transceiver driver ISO1050 |
| Data output frequency | 200Hz |
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing.
We supply high quality Turbine Gas Flow Meter, hope we can coopperate in near future by providing you suitable products, good services and reasonable prices.
