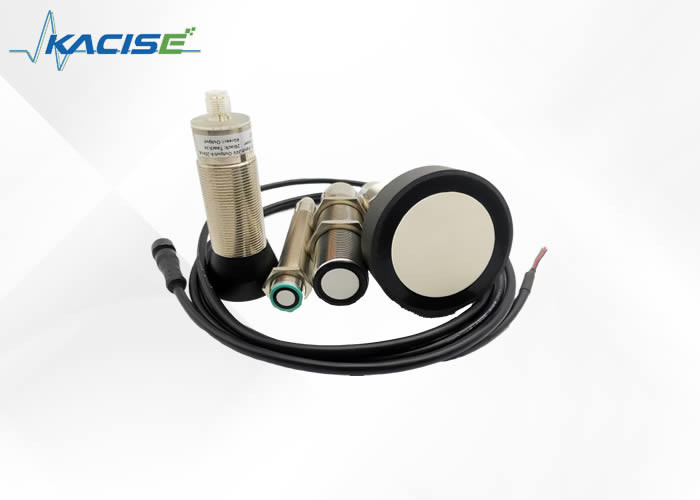

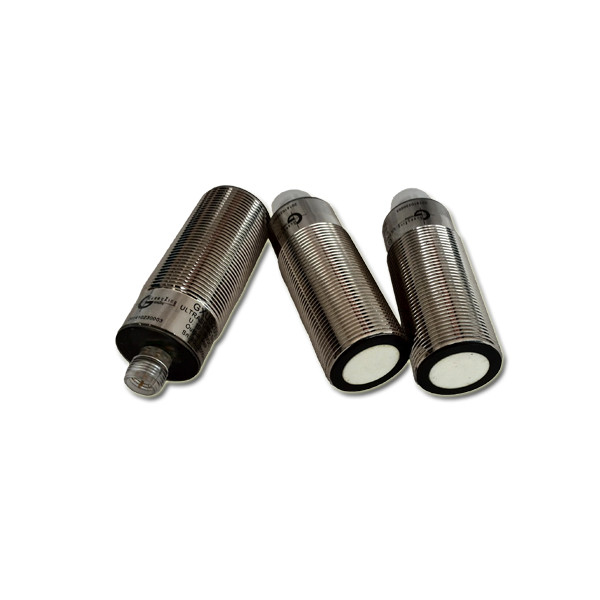

Place of Origin:
CHINA
ชื่อแบรนด์:
KACISE
ได้รับการรับรอง:
CE
Model Number:
KUS3000
วิดีโอ
วิดีโอ
Unit in the diagram is mm.
M18 series transmitter dimensions M30 type1 series transmitter dimensions
M30 type2 series transmitter dimensions M30 type3 series transmitter dimensions
General specifications
| M18 | |
| Sensing range | 150... 1000 mm |
| Adjustment range | 150….1000mm |
| Unusable area | 0 ... 150 mm |
| Response delay | approx. 10 ms |
| M30-type1 | |
| Sensing range | 200... 2000 mm |
| Adjustment range | 200….2000mm |
| Unusable area | 0 ... 200 mm |
| Response delay | approx. 10 ms |
| M30-type2 | |
| Sensing range | 300... 3500 mm |
| Adjustment range | 300….3500mm |
| Unusable area | 0 ... 300 mm |
| Response delay | approx. 20 ms |
| M30-type3 | |
| Sensing range | 400... 6500 mm or 600-12000mm |
| Adjustment range | 400….6500mm or 600-12000mm |
| Unusable area | 0 ... 400 mm |
| Response delay | approx. 40 ms |
Indicators/operating means
| LED blue |
Flashing: program can be acted, this status The Blue led will flash around 5 minutes after the sensor power on, indicate the sensor can be programed, and then the blue led will perpetually turn on. To indicate the power status. |
| LED yellow |
indication of the switching state flashing: during program function object detected |
| LED red |
Normal working: light on indicate error detected. Programing: flashing, echo lost, that means the sensor covered or no object in the front of the sensor, |
Electrical specifications
| Operating voltage UB | 13 ... 30 V DC, ripple 10 %SS |
| No-load supply current I0 | ≤ 45 mA |
IOT version
| Operating voltage UB | 3.3-16 DC, ripple 10 %SS |
| No-load supply current I0 | ≤ 15 mA, sleep mode≤1mA, waken by uart., |
Input
| Input type | 1 TEACH-IN input |
| operating range A1: 0V/GND ... +1 V, operating range A2: +6 V.+UB | |
| input impedance: > 4.7 kΩ ; TEACH-IN program pulse: ≥ 1 s |
Output
| Output type |
1 switch output E4, NPN NO/NC, programmable 2 switch output E4, PNP NO/NC, programmable 3 Analog 0-10V output E4 programmable. 4 Analog 4-20mA output E4 programmable 5 RS485 output E4 programmable. |
| Rated operating current Ie | 200 mA, short-circuit/overload protected |
| Default setting | Switching point A1:150mm Switching point A2: 1000mm |
| Voltage drop | ≤ 2.5 V |
| Repeat accuracy | ≤1 % |
| Switching frequency f | ≤ 13 Hz (customized for high frequency version) |
| Range hysteresis H | 5 % of the set operating distance |
| Temperature influence | ±1% of full-scale value |
Ambient conditions
| Ambient temperature | -25…70℃ (248...343K) |
| Storage temperature | -40…85℃ (233...358K) |
Mechanical specifications
| Connection | V1 connector(M12×1),4-pin |
| Protection degree | IP66 |
| Material Housing | brass, nickel-plated |
| Transducer |
epoxy resin/hollow glass sphere mixture; foam polyurethane, cover PBT |
Installation conditions
If the sensor is installed at the environment temperature fall below 0℃, It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
Ordering information
| KUS | Body size | OUTPUT | Max range | Description | |
| M18 | For M18 body, The max range for M18 is 1000mm | ||||
| M30-Type1 | For M30 body. The max range is 2000mm for M30 | ||||
| M30-Type2 | For M30 body. The max range is 3000mm for M30 | ||||
| M30-Type3 | For M30 body. The max range is 6000mm for M30 | ||||
| Customized | Customized | ||||
| NPN | Output is NPN | ||||
| PNP | Output is PNP | ||||
| Vout | Output is Vout 0-10V | ||||
| mAout | Output is 4-20mA | ||||
| RS485 | Output is RS485 | ||||
| XXX mm |
XXX mm is the maxim range can be detected For M18 the max range is 1000mm For M30 the max range is 6000mm |
||||
| KUS | M30 | RS485 | 2000mm | ||
