Place of Origin:
CHINA
ชื่อแบรนด์:
KACISE
ได้รับการรับรอง:
CE
Model Number:
GXPS
วิดีโอ
วิดีโอ

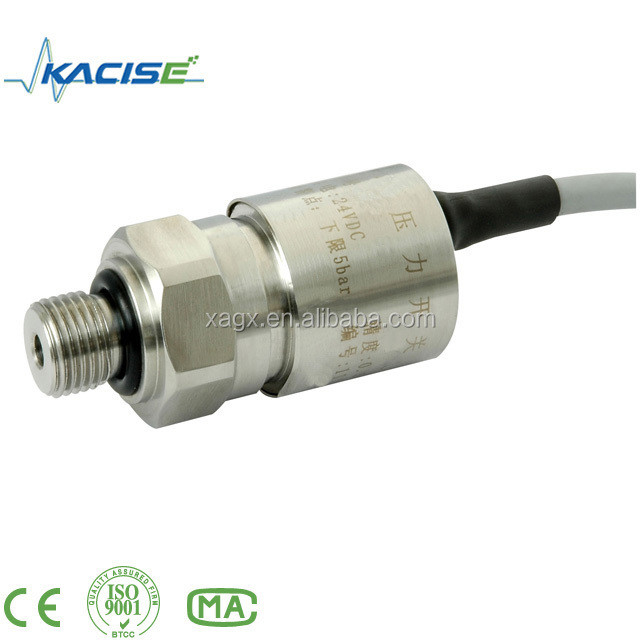

washing machine pressure transducer/pressure sensor/pressure switch
Feature
1). Accuracy ±0.1%F.S ±0.25%F.S ±0.5%F.S ±1.0%F.S
2). Various measuring range and signal output
3). With silicon or ceramic piezo-resistive core
4). CE, explosion-proof
Introduction
The GXPS pressure transmitter has the characteristics of high reliability, high stability, high accuracy. It contains a wide kind of sensors which can meet different demands and applications. Widely used in gas, liquid pressure detection, such as water,oil,mildly corrosive,corrosive gas and liquid pressure. Besides, our engineers team can customize various of products accordding to your requirements.
Parameter
|
Spec. |
Value |
|
|
Pressure range |
-0.1MPa~1kPa......800MPa (customizable) |
|
|
Temperature range |
-40°C~400°C (customizable) |
|
|
Load pressure |
2 times nominal value pressure (2X) |
|
|
Rupture pressure |
4 times nominal value pressure (4X) |
|
|
Accuracy |
±0.1%, ±0.25%, ±0.5%, ±1.0%F.S (customizable) |
|
|
Stability |
Typical value 0.25% F.S, Max. value: 0.4%F.S |
|
|
Operating temperature |
-40°C~400°C (customizable) |
|
|
Compensation temperature |
-40°C~120°C (customizable) |
|
|
Medium compatibility |
All Caustic Medium Compatible with 1Cr18Ni9Ti |
|
|
Output signal |
4~20mA, 0~5V,0~10 V, 1~5V,1~10V, RS232, RS485,USB and so on (customizable) |
|
|
Power supply |
5VDC,24VDV,6~24VDC,12~30VDC, 9VDC battery, 3.6VDC battery and so on (customizable) |
|
|
Insulation |
>100M Ω@50V |
|
|
Electrical connection |
Waterproof fixed cable, Hirschmann, Air plug and so on (customizable) protection grade : IP65, IP67, IP68 |
|
|
Pressure port |
M20×1.5, G1/4, G1/2, R1/2, NPT1/2 (customizable) |
|
|
Pressure type |
Gage, Seal, Absolute |
Response time: 10ms |
|
Certificate |
Intrinsically safe , CE, explosion suppression |
|
|
EMI/EMC |
EMI: EN50081-1/-2; EMC: EN50082-2 |
|
Ordering information
GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package
Other same products
1pc/bag, 1 bag/box, many boxes/carton, or customized available.
| The quality principle: Quality is the best sales |
| Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow |
| Shipping: |
| 1.All parts will be shipped out within 1 - 3 working days after comfirm the payment |
| 2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex |
| 3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service. |
| 4.Any import fees or charges are afforded by the buyers |
| Service : |
| 1.Provide you one-stop service of electronic components |
| 2.Competitive price advantage help to save your purchase cost and bring in you more profits |
| 3.Having advanced e-commerce capabilities |
| 4.Quick and accurate delivery and flexible logistics support |
| 5. Personalized service, based on your programs and ideas to serve you |
In order to choose the suitable transmitter for you, please send us below information with the feedback.
1. pressure range
2. accuracy
3. output signal
4. power supply voltage
5. pressure port
6. elec. connection
7. medium
8. temperature range
