สถานที่กำเนิด:
จีน
ชื่อแบรนด์:
KACISE
ได้รับการรับรอง:
CE
Model Number:
GXPS605
วิดีโอ
GXPS605 High accuracy storage pressure transmitter
1. Parameter
|
Spec. |
Value |
||
|
Type |
GXPS605A |
GXPS605B |
|
|
Pressure range |
0~2MP……100MPa |
||
|
Over load safe |
1.5times nominal pressure(1.5X) |
||
|
Secondary Containment |
3times nominal pressure(3X) |
||
|
Accuracy |
±0.5%F.S |
||
|
Stability |
Typical 0.25%F.S/year |
||
|
Compensated temperature range |
-10°C~60°C |
||
|
Operating temperature |
-10°C~60°C |
||
|
Output signal |
USB |
RS485 |
|
|
Power supply |
9VDC baterry box |
3.6VDC Primary li batteries |
|
|
Electrical connection |
USB standard line |
Fixed terminals |
|
|
Minimum isolation between case and terminations |
>100M Ω@50V |
||
|
Pressure port |
M20×1.5, G1/2, NPT1/2 |
||
|
Pressure type |
Gage pressure, sealed gage |
||
|
EMI/EMC |
EMI: EN50081-1/-2: EMC: EN50082-2 |
||
2. Electronic interface and signals definition
|
GXPS605BElectrical connections |
|
|
Connection defined |
Terminal mark |
|
RS485+ |
A |
|
RS485- |
B |
|
Power |
+ |
|
Power |
- |
|
GXPS605A The electrical connection cable for the USB standard |
|
|
|
|
3. Feature
1). 0.5%F.S
2). Diffused-silicon core
3). Digital record 10000 pieces massage
4). USB/RS485 output
5). Battery power, low consumption
6). Man-machine interface
4. Application
1). Fire-fighting detection
2). Experiment pressure monitoring
3). Chemical metallurgical

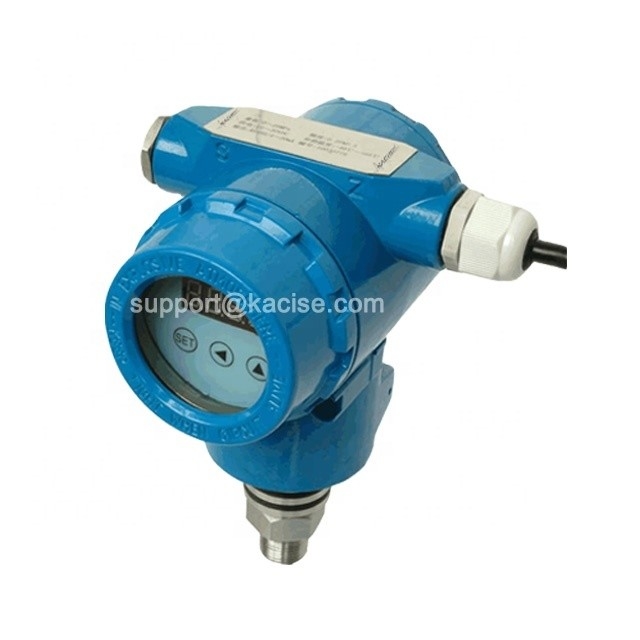

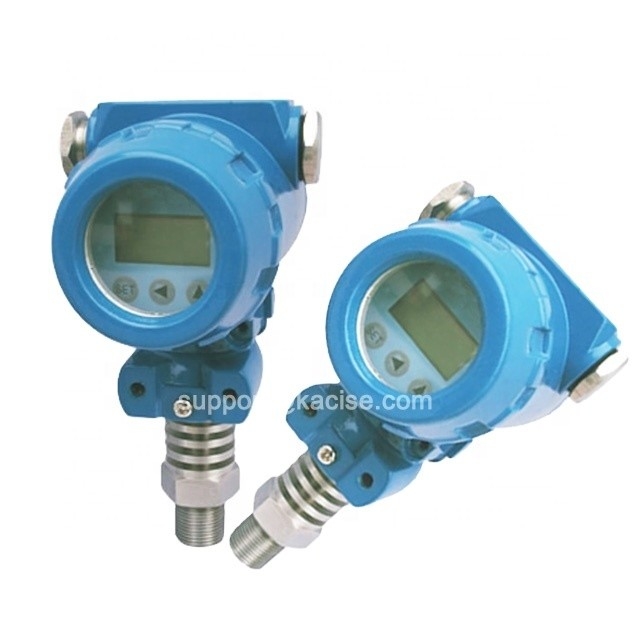

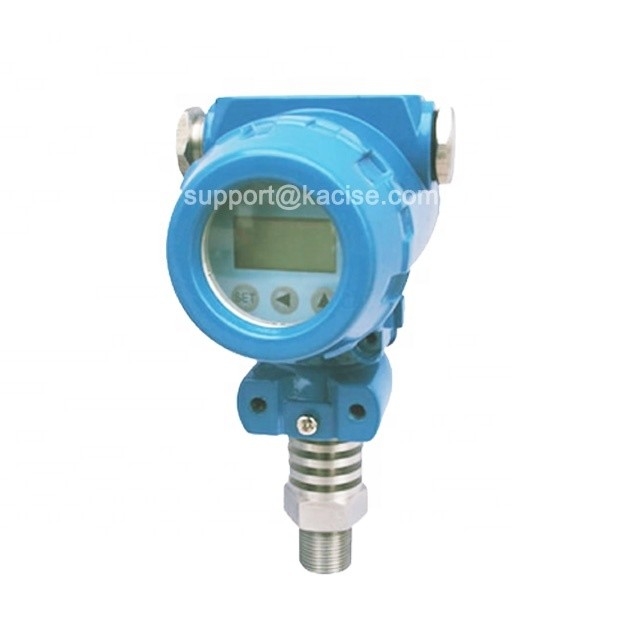

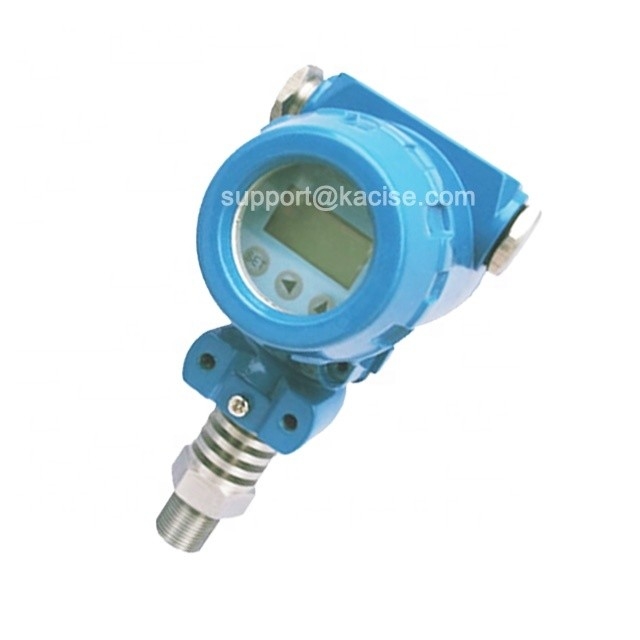

5. Product picture
|
|
|
|
**********************XIAN KAIXING Company
| The quality principle: Quality is the best sales |
| Payment :We accept T/T, PayPal, Western Union, MoneyGram , Escrow |
| Shipping: |
| 1.All parts will be shipped out within 1 - 3 working days after comfirm the payment |
| 2. DHL / FEDEX / UPS / EMS / TNT / China Post /Aramex |
| 3.We are not responsible for force majeure accidents, delays or other issues, like the shipping service. |
| 4.Any import fees or charges are af ed by the buyers |
| Service : |
| 1.Provide you one-stop service of electronic components |
| 2. Competitive price advantage help to save your purchase cost and bring in you more profits |
| 3. Having advanced e-commerce capabilities |
| 4. Quick and accurate delivery and flexible logistics support |
| 5. Personalized service, based on your programs and ideas to serve you |
