Place of Origin:
CHINA
ชื่อแบรนด์:
KACISE
ได้รับการรับรอง:
CE
Model Number:
GXPS620
วิดีโอ
วิดีโอ
Display type water pressure sensor switch
1. Parameter
Spec. | Value | |
Pressure range | -100…0~35…100Kpa | |
Load pressure | 2 times nominal value pressure (2X) | |
Rupture pressure | 4 times nominal value pressure (4X) | |
Accuracy | ±0.5%F.S, ±1%F.S, ±2%F.S, optional | |
Stability | Typical value 0.25%F.S/year, | |
Operating temperature | -20°c ~60°c | |
Medium compatibility | All Caustic Medium Compatible with 1Cr18Ni9Ti | |
Output signal | Two relay output, with normal close & normal open output | |
Life span of switch | More than 1, 000, 000 times | |
Power supply | 24±10%Vdc | |
Contact load | 0.5A 125VAC/1A 30VDC | |
Insulation | >100M Ω@50V | |
Pressure port | M20×1.5, G1/4, G1/2, R1/2, NPT1/2 | |
Pressure type | G, S | Response time : 10ms |
EMI/EMC | EMI: EN50081-1/-2 ; EMC: EN50082-2 | |
2. Electronic interface and signals definition
Electrical connection | ||||||||
Color | Red | Black | Green | Blue | Yellow | Brown | Orange | Purple |
Founction | Power + | Power - | common terminal1 | Normal close 1 | Normal open1 | Common terminal2 | Normal close 2 | Normal close 2 |
| ||||||||
3. Feature
1). Accuracy: 0.5% F.S, 1.0%F.S, 2.0%F.S
2). Field display
3). Adjustable alarm output
4). Two relay output
5). Various pressure range switch output
4. Application
1). Hydraulic control
2). Petrochemical
3). Pressure instrument
4). Automatic checkout system
5). Fluid pressure measurement
6). Chemical metallurgy

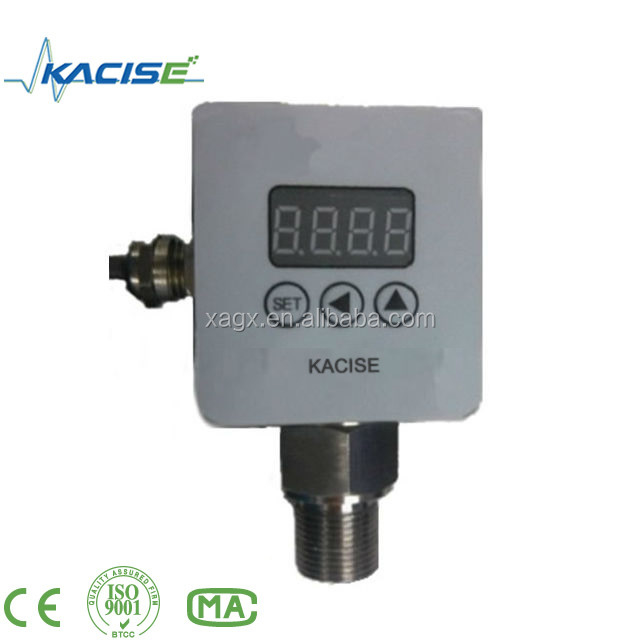

5. Product picture
