Introduction

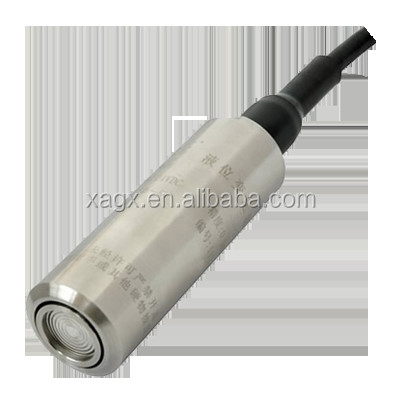

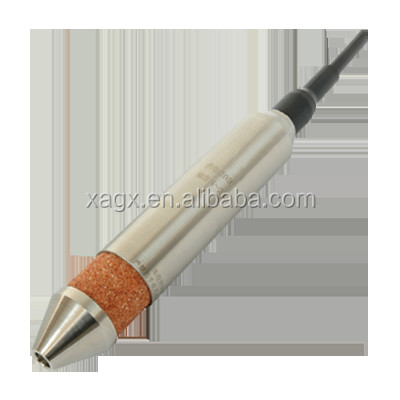

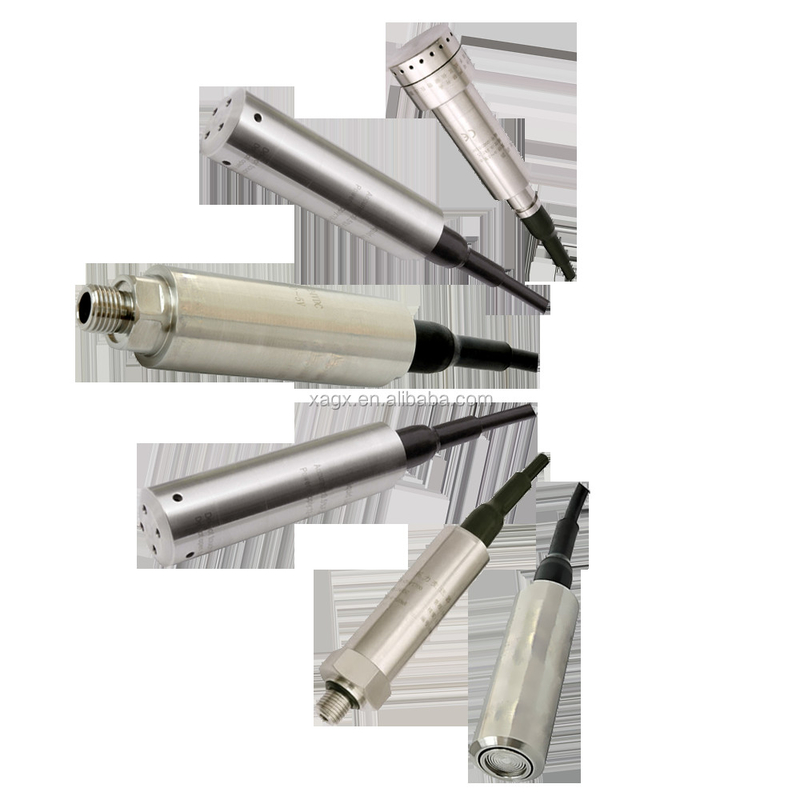

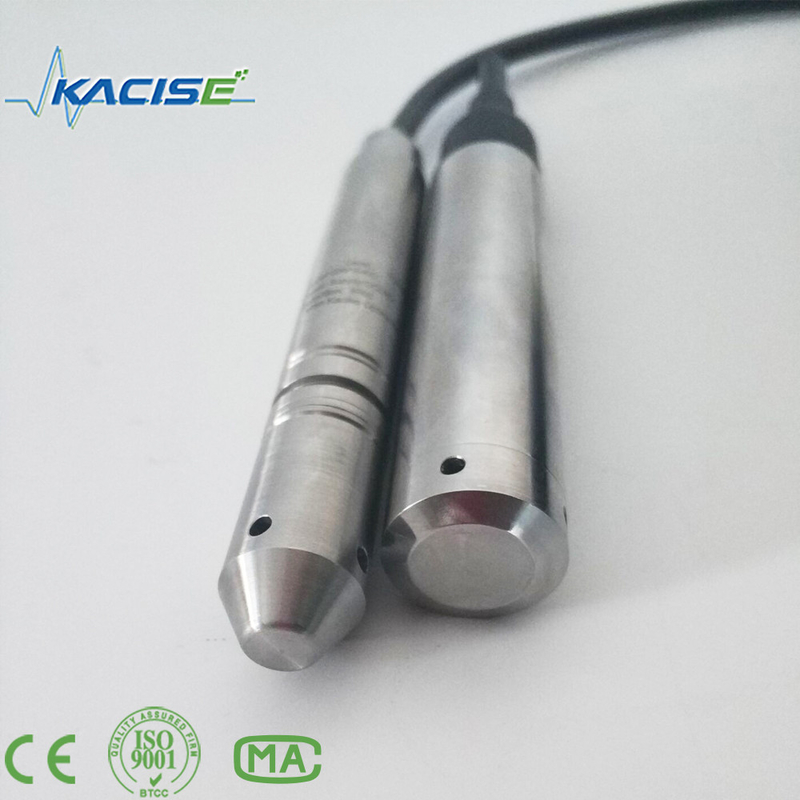

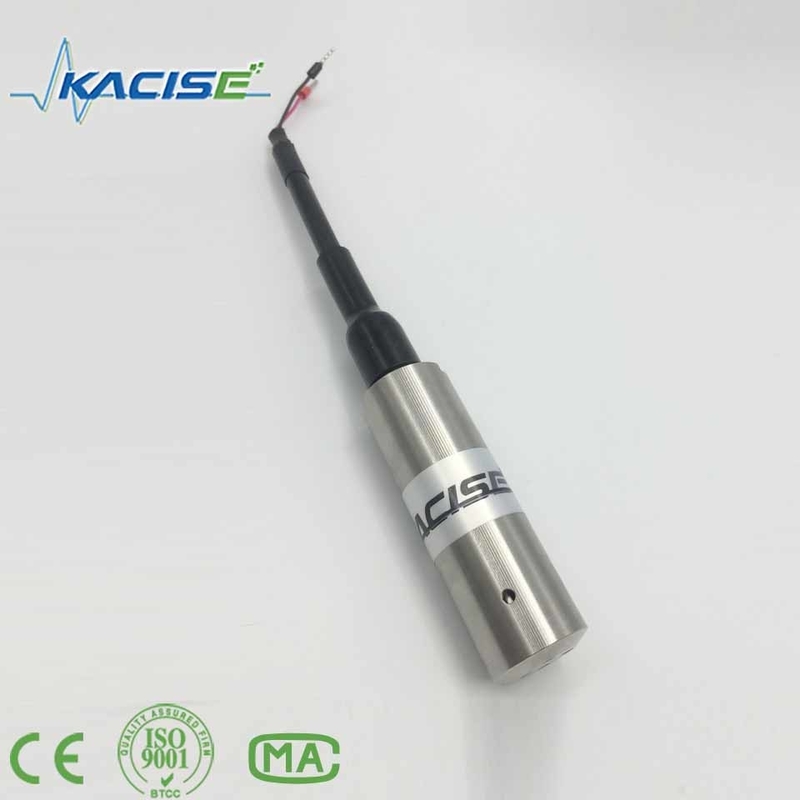

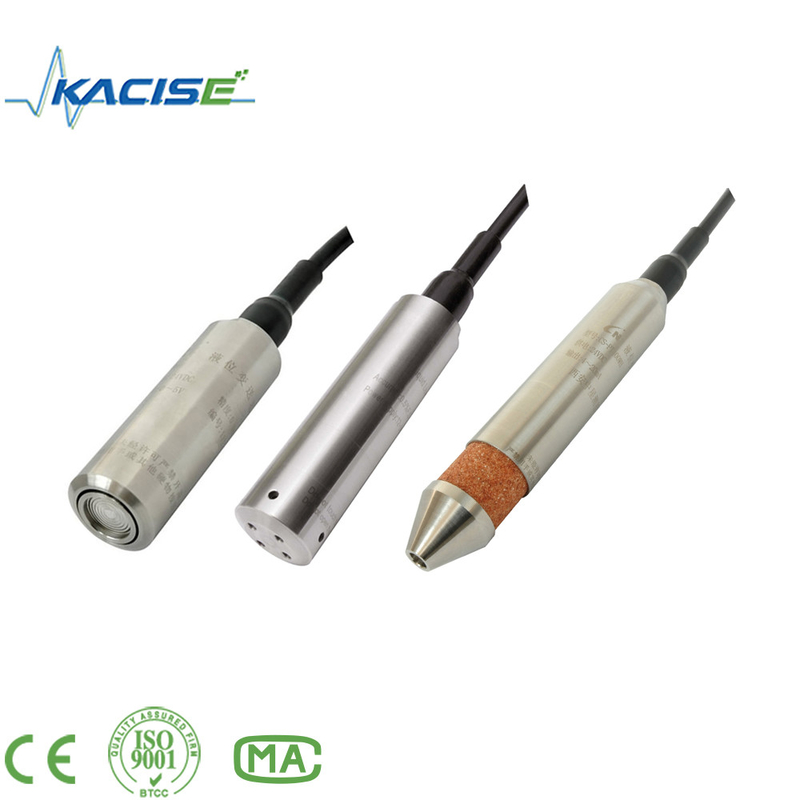

water level sensor is a special structure and use of products, high precision, small size and good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered according to filed environment.
Customized solutions for various fluids can be supplied.
Parameter
Spec. | Numerical value | ||||
Pressure range |
0~1……500mH2O 9.8KPa…4900KPa 0.09bar…49bar 0.09atm…48atm 1.4psi… 711psi 2.8inchHg…1400inchHg | ||||
Overload pressure | 1.5 times nominal value | ||||
Rupture pressure | 3 times nominal value | ||||
Accuracy | ±0.25%F.S,±0.5%F.S | ||||
Stability | Typical value 0.25%F.S, Max. value:0.4%F.S | ||||
Operating temperature | -40°C~85°C (or -40°C~125°C) | ||||
Compensation temperature | -10°C~70°C | ||||
Medium | All Caustic Medium Compatible with 1Cr18Ni9Ti | ||||
Electrical performance | 2 line | 3 line | 4 line | ||
Output signal | 4~20mA | 0~20mA | 0~5V | 0.5~4.5V | 0~20mA |
|
| 0~10Vdc | 1~5V | 0.5~3V | 0~5/10Vdc |
Power supply | 10~30Vdc | 11~30Vdc | 8~24Vdc | 5V Ratio | 8/11~30Vdc |
Load resistance | (U-10)/0.02(Ω) | Current:(U-12)/0.02(Ω); voltage :>20KΩ | |||
Insulation | >100MΩ @50V | ||||
Electrical Connections | 500V@1 second | ||||
Electrical connection | waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68 | ||||
Electromagnetic compatibility | electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2 | ||||
Response time | 10ms | ||||
Certificate | Intrinsically safe mode E, explosion proof type D, CE | ||||
EMI/EMC | EMI: EN50081-1/-2; EMC: EN50082-2 | ||||
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
1. Q: What information need to be provided to choose the suitable model?
A: Please provide us: application field, pipe size , pipe material, medium( liquid type),
temperature, installation method, so we can choose model and quote for you quickly.
2.Q: May I put my own logo on the product?
A: Sure. Logo can be printed on the housing, and company name can be engraved on the nameplate.
3.Q: How about the quality control?
A: All products will be tested for 3 times before packed.
4.Q: May I release trial order, 1 pc for example?
A: Certainly, trial order is acceptable. In general, we have common models in stock. Sample will be sent within 1 week, after payment is received.
5.Q: Could you design according to my requirements?
A: Of course, our team will design for you, to make our water level sensor work perfectly at your end.
