Place of Origin:
China
ชื่อแบรนด์:
Kacise
Model Number:
KDF2100

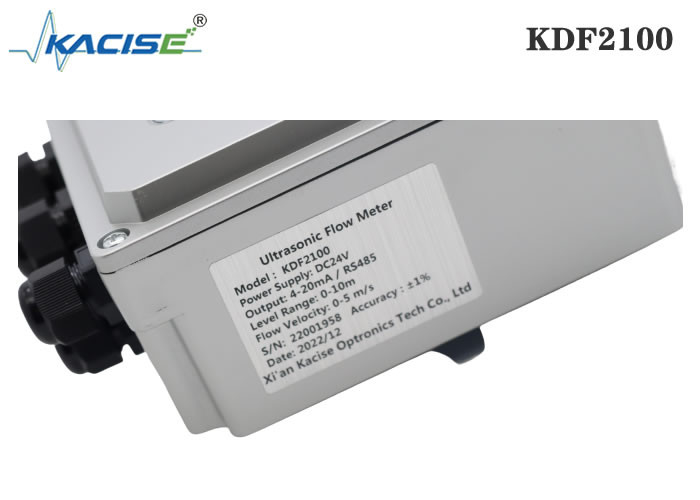

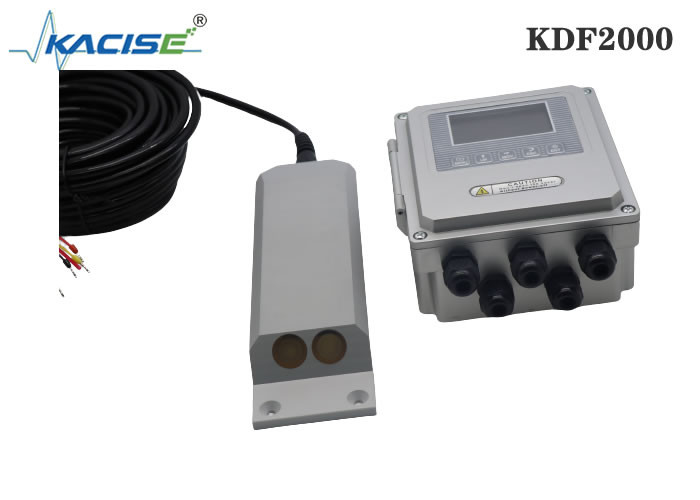

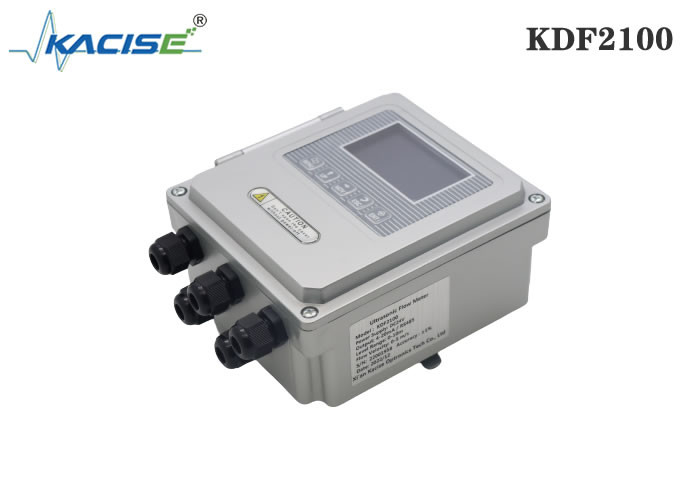

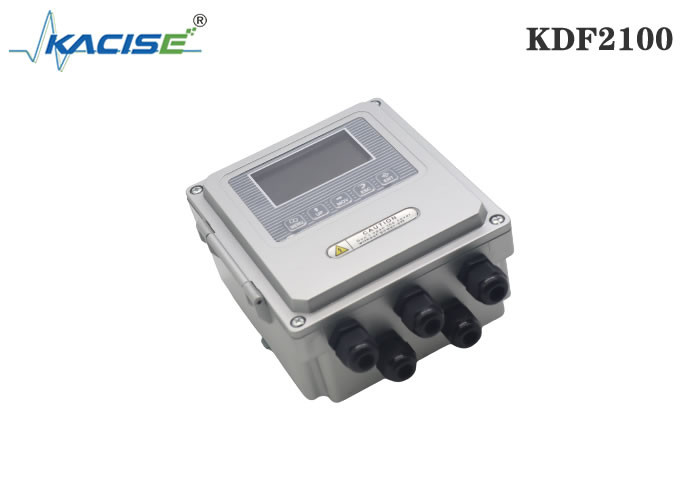

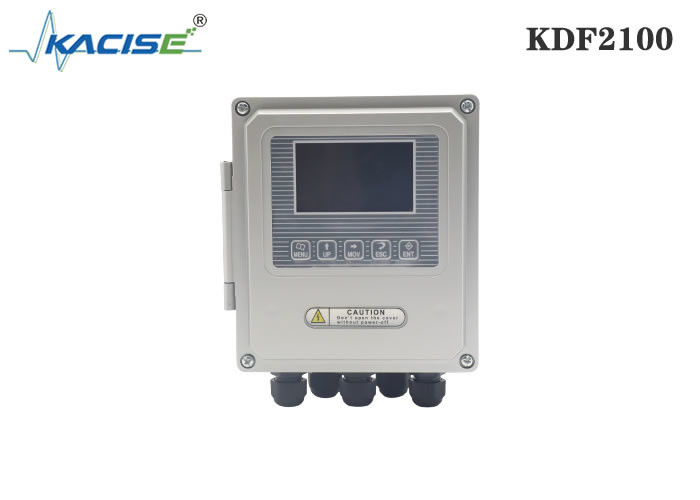

KDF2000 Series Ultrasonic Doppler Flow Meter
The high-resolution TFT color screen can display parameters such as time, temperature, flow rate, flow rate, liquid level, and accumulated flow at the same time. It supports English language, and is easy to operate and install.
Technical Parameter
Host | Power Supply | AC220V / DC24V / Solar rechargeable battery |
| Power Consumption | <2W | |
| Range | Liquid level: 0-10m Flow rate: 0-5m/s Instantaneous flow: 0-999999999m³/h Cumulative flow: 0-999999999m³ Temperature: -10-70℃ | |
| Resolution | Liquid level: 0.001m Flow rate 0.001mm/s Instantaneous flow: 0.1m³/h Temperature: 0.1℃ | |
| Material | PVC | |
| Protection Grade | IP65 (standard) / IP67 | |
| Output Signal | RS485 /4-20mA analog output (standard) HART /NB. GPRS.LORA (optional) | |
| Installation | Wall Mount | |
Sensor | Power Supply | 9-24V |
| Protection Grade | IP68 | |
| Temperature | -10-60℃ | |
| Material | PVC | |
| Cable Length | 10m (longer cable optional) | |
| Cable Material | Polyurethane | |
| Installation | Bracket submersible installation |
KDF2300 Compact Low Power Consumption Doppler Flow Meter
Digital electrode: IP68 digital electrode with low power consumption, supports reading of parameters such as temperature, liquid level, instantaneous flow, cumulative flow, flow rate, etc. With GPRS remote transmission module and high-power IP68 waterproof battery, wireless installation can be realized, which is very suitable for urban underground Installation and monitoring of pipeline network, groundwater, mountain rivers and lakes.
Host/ Sensor | Power Supply | 9-24V |
| Power Consumption | Instantaneous power consumption for uploading measurement≤ 2W Standby power consumption ≤1.5w | |
| Output Signal | RS485 GPRS | |
| Protection Grade | IP68 | |
| Temperature | -10-60℃ | |
| Material | PVC + Stainless Steel (import pressure core) | |
| Cable Length | 10m (longer cable optional) | |
| Cable Material | Polyurethane | |
| Installation | Bracket submersible installation |
