Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
certificate of explosion-proof, CE
Model Number:
KUS550

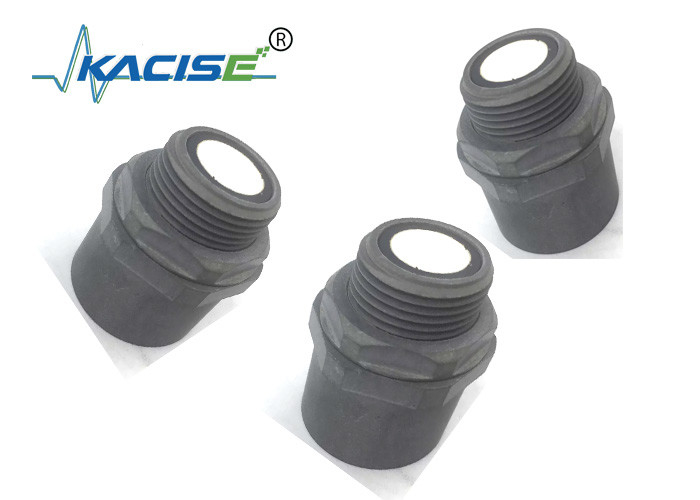

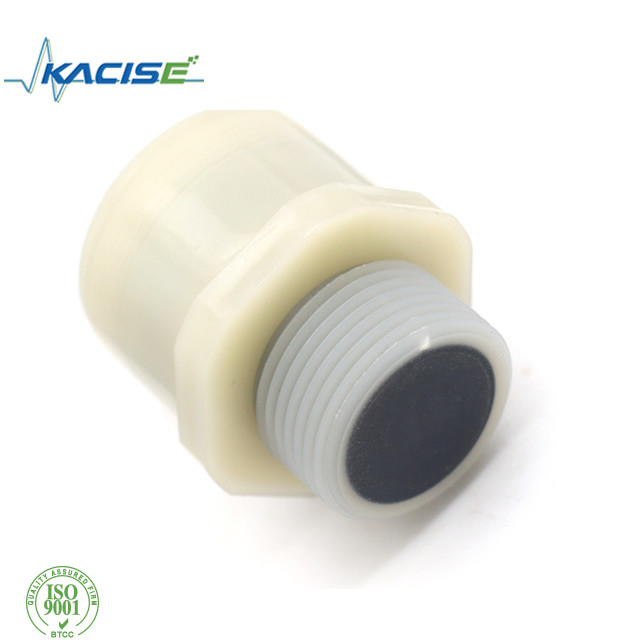

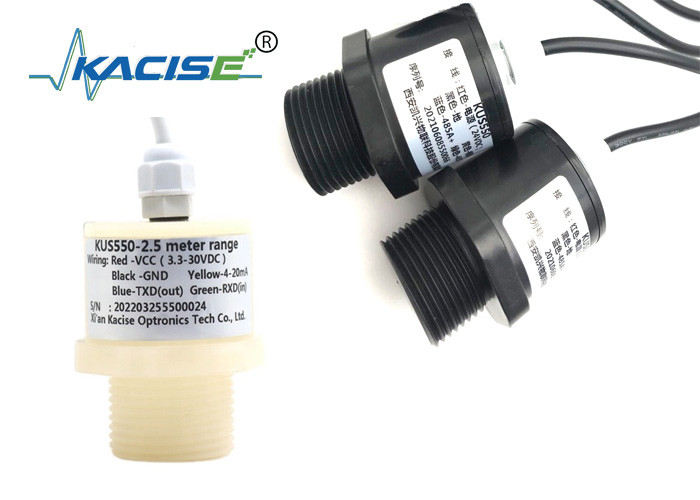

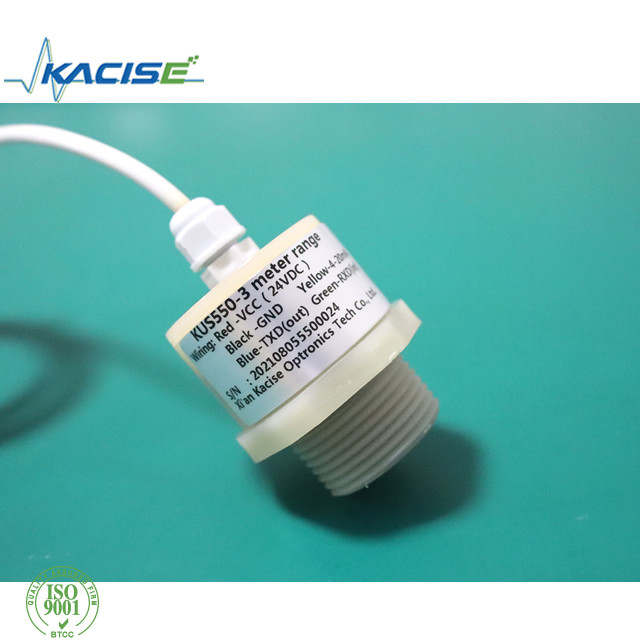

0-3m Small range ultrasonic liquid level sensor
KUS550 Ultrasonic Distance Sensor
1. Product features:
2. Product Description
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.
3. Parameter
General specifications
| Model: KUS550 | |
| Measuring range |
0.25m~3m (5m customizable)KUS550A 0.15m-0.6m(1m customizable)KUS550B； |
| Blind spot | The dead zone of KUS550A is 0 ... 250 mm (within 250mm is unstable working zone, it is not recommended to work in this range); the dead zone of KUS550B is 0-150mm; |
| Supply voltage | 3.3 ... 30 VDC, ripple 10 %SS |
| Working current | ≤ 45 mA (fastest measurement speed), typical power consumption ≤ 10 mA; |
|
Output signal |
0-10V. 0-3V 0-5V /4-20mA/NPN/PNP/RS485 Analog output. |
| Measurement accuracy | ≤1 %F.S. |
| Temperature compensation | Yes |
| Ranging resolution | 0.1mm； |
Working conditions
| Working temperature | -40…85℃(233...358K) |
| Storage temperature | -40…85℃(233...358K) |
Other instructions
| Electrical connection | 5-core cable (analog output), 6-core cable (switch output)； |
| Protection class | IP67 |
| shell material | PVC /PVDF/PTFE/ABS |
4. Dimensions
5. Wiring
6. Application
The KUS550 Ultrasonic Distance Sensor is a versatile and sophisticated instrument designed to cater to a variety of applications, including:
1. Tank Level Measurement**: The KUS550 sensor excels in accurately monitoring and measuring fluid levels within tanks. This capability is essential for ensuring optimal storage and processing conditions in industries such as oil and gas, water treatment, and chemical processing.
2. Bin Level Measurement**: The sensor is adept at determining the levels of materials in bins. This feature is crucial for inventory management, allowing for precise control over material quantities and improving operational efficiency in industries like manufacturing and agriculture.
3. **Proximity Zone Detection**: The KUS550 sensor can detect the presence of objects or individuals within a designated proximity zone. This functionality enhances safety and operational control in environments such as warehouses, factories, and automated systems.
4. People Detection**: Utilizing ultrasonic technology, the sensor is capable of detecting human presence in various environments. This makes it useful for applications in security, automation, and safety systems where monitoring human movement is essential.
5. Robot Ranging Sensor**: The sensor provides precise distance measurements for robotic systems, enabling accurate navigation and operation. This is particularly important in automation and robotics, where precise spatial awareness is necessary for tasks such as material handling and assembly.
6. Autonomous Navigation**: The KUS550 sensor facilitates autonomous navigation in vehicles and machinery by supplying reliable distance and proximity data. This capability is critical for the development and operation of autonomous systems in sectors like automotive, drones, and unmanned vehicles.
7. Multi-Sensor Navigation**: The sensor can be integrated with other sensors to provide comprehensive navigation solutions for advanced systems. This multi-sensor approach enhances the accuracy and reliability of navigation in complex environments.
8. Distance Measuring**: Capable of measuring distances accurately over a wide range, the KUS550 sensor supports various industrial and commercial applications, from construction and surveying to logistics and transportation.
9. Long Range Object Detection**: The sensor is effective in detecting objects at long ranges, improving safety, automation, and operational efficiency. This feature is particularly useful in applications such as perimeter security, collision avoidance, and environmental monitoring.
10. Industrial Automation**: In industrial settings, the KUS550 sensor enhances processes through precise flow and distance measurements. Its reliability and accuracy contribute to the automation and improvement of productivity in manufacturing, logistics, and process control.
The KUS550 Ultrasonic Distance Sensor is characterized by its minimal pressure loss, wide measuring range, and high accuracy. Its reliability is assured through the absence of moving mechanical parts, long-term stability of instrument parameters, and robust construction. Additionally, the sensor's ability to operate within a wide temperature range and provide standard analog and digital pulse signal outputs makes it easy to integrate with digital systems. This integration supports advanced measurement solutions across a variety of industries, making the KUS550 sensor an ideal choice for numerous applications.
