30g Accelerometer Vibration Sensor High Speed Accelerometer

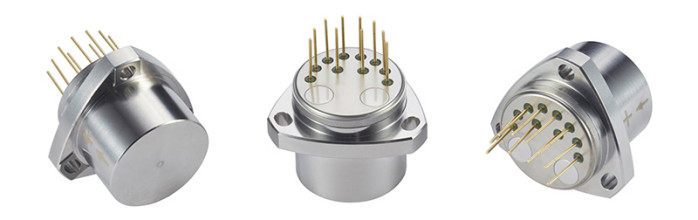

KSNSA-1 Quartz flexible Accelerometer

       1.Feature

• ☆ Tactical navigation grade performance
• ☆ High value
• ☆ Environmentally rugged
• ☆ Analog output
• ☆Compact design
• ☆ Built-in test
• ☆Field-adjustable range
•
• 2.Application
• ☆Deep well level measuring
• ☆ Automotive test instrumentation
• ☆ Braking system deceleration
• ☆ Bridge and building sway and tilt monitoring
• ☆ Industrial and robotic control
• ☆ Land vehicle navigation
• ☆ Subway and train ride comfort control
•
  3.Introduction

• For an economic package, Kacise produces the KSNSA-1 Quartz flexible Accelerometer for industrial grade applications including: automotive test instrumentation, braking system deceleration, bridge and building sway and tilt monitoring, industrial and robotic control, land vehicle navigation, subway and high-speed train ride comfort control, and offshore drilling platform motion monitoring. The KSJR-4 features a etched-quartz-flexure seismic system. An amorphous quartz proof-mass structure provides excellent bias, scale factor, and axis alignment stability. The integral electronics develops an acceleration-proportional output current providing both static and dynamic acceleration measurements. By use of a customer supplied output load resistor, appropriately scaled for the acceleration range of the application, the output current can be converted into a voltage.

•   4.Parameter

•

  Product name			KSNSA-1A	KSNSA-1B	KSNSA-1C
  serial number	parameters	Unit	Figures	Figures	Figures
  1	Input Range	g	±30
  2	Resolution	μg	＜10
  3	Bias K0	mg	＜40
  4	Bias K0 1-month Composite Repeatability	μg	＜250
  5	Bias K0 Temperature Sensitivity	μg/℃	＜150
  6	Scale Factor K1	mA/g	1.25±0.15	2.3±0.3	2.3±0.3
  7	Scale Factor K1 1-month Composite Repeatability	ppm	<250

  8	Scale Factor K1 Temperature Sensitivity	ppm/℃	＜200
  9	Second order nonlinear coefficient(K2/K1)	ug/g2	50
  10	maxim over load	%	≤40
  11	Intrinsic Noise	mV	≤8.4
  12	Power supply	Vdc	±13-±18
  13	Current consumption	mA	≤20
  14	Working temperature range	℃	-55～180	-55~125	-55~150
  15	Storage temperature range	℃	-60~+200
  16	Shock tolerance	g	1000g.0.5ms.1/2sin
  17	environment reliability standard		GJB150.2,GJB150.9,GJB150.16
  18	Resonance Frequency	Hz	≥400
  19	Bandwidth	Hz	≤2500
  20	Weight	Gram	≤65
  21	Dimensions	mm	Φ25 X 29.3/customized
  22	Axis Misalignment	μrad	＜1500
  23	Insulation characteristic	MΩ	≥100
  24	material of shell		ss304
  25	Temperature sensor		Can be customized AD590 PT100 PT1000 18B20 NTC, etc

  5.Signal definition

• Pin No.	Pin. Name	描述/description
  1	S-(力-(信号输出))	Signal output
  2	NC(力+(空))	not connected
  3	-15VDC	-15Vdc power supply
  4	+15VDC	+15Vdc power supply
  5	GND(地)	Connect to GND
  6	NC测试(空)	not connected
  7	NC传负(空)	not connected
  8	NC传正(空)	not connected
  9	T-(-9V输出)	temperature sensor out； the temperature sensor can be customized such as NTC PT100 PT1000,etc
  10	T+(+9V输出)	temperature sensor out

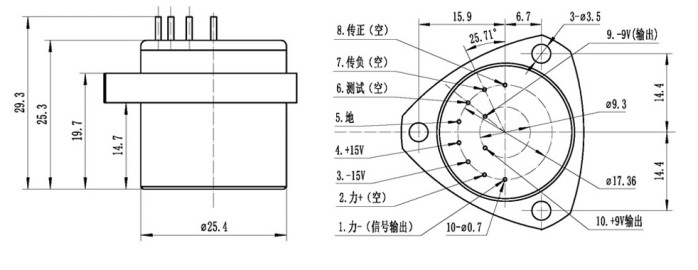

  6.Electronic interface and signals definition
