Place of Origin:
China
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
CE
Model Number:
KUS550 Series

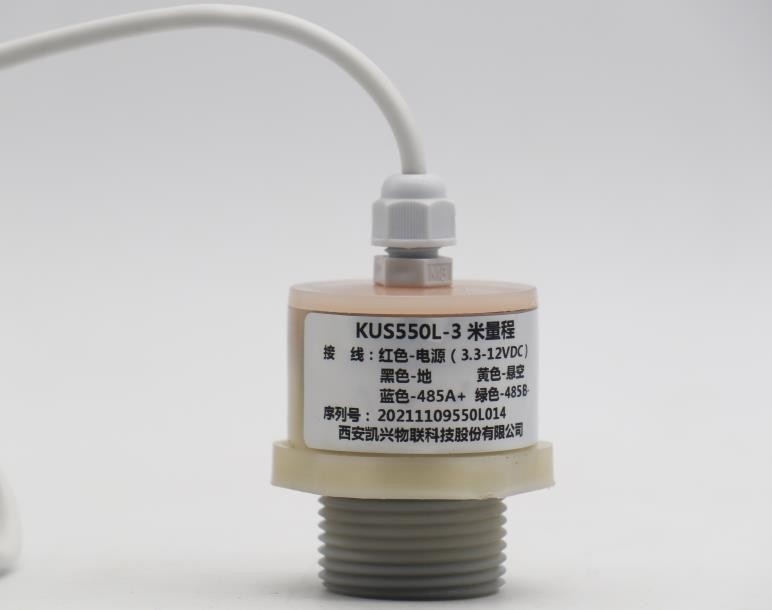

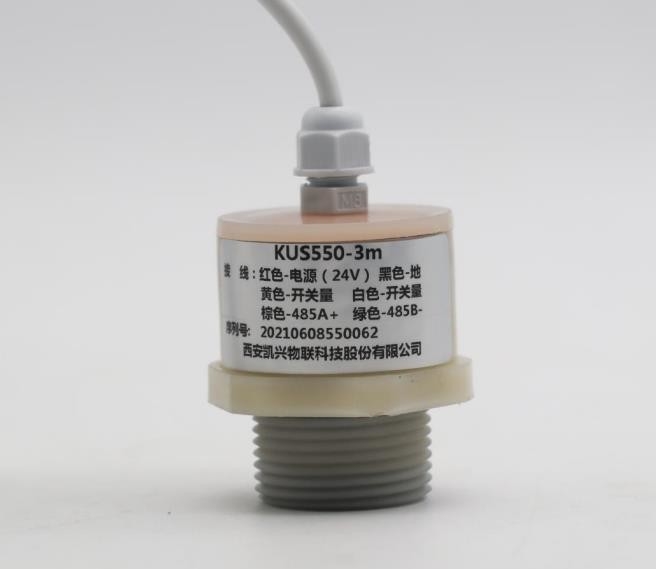

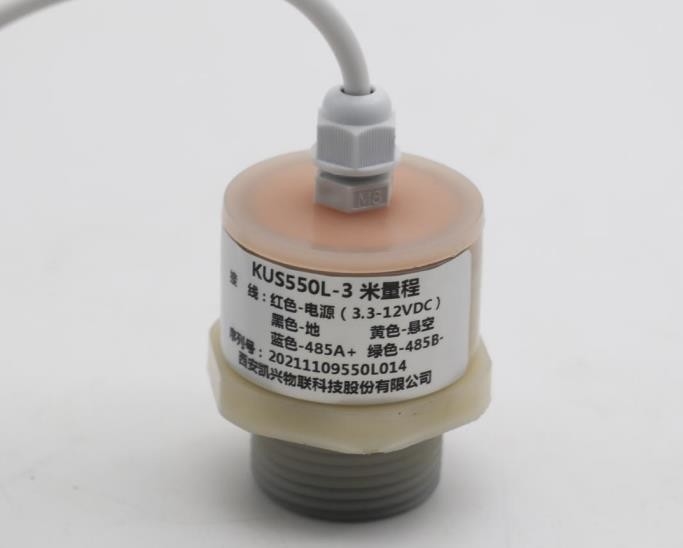

KUS550 Ultrasonic Level Sensor
Features
Introduction
This sensor provides very short to long-range detection and ranging, in a compact, robust PVC housing,
designed to meet IP65.
Electronic interface and signals definition
Analogue output type wiring diagram
Installation conditions
If the sensor is installed at the environment temperature fall below 0℃, It should do well on the protective measures. In case of direct mounting of the sensor in a through hole using the steel nuts, it has to be fixed at the middle of the housing thread.
Parameters
| Enter | |
| Measured variable | Liquid level, material level |
| Maximum measuring range | 20-15000mm(Can be customized according to needs) |
| Output | |
| Comprehensive accuracy | ±1%FS/ 0.15℃ |
| Temperature compensation | -10℃～70℃ |
| Vibration influence | < ± 0.05％/g,All directions500Hz (conform to IEC 68 -2-64) |
|
Rated conditions Environmental conditions |
|
| Ambient temperature | -25～+85℃ |
| Storage temperature | -40～+85℃ |
| Protection level | IP65 ,conform to EN 60529 |
| Electromagnetic Compatibility | EN 61326/A2 appendix A (2001 ) |
| Display and control | |
| show | SFTN LCD, white backlight, 5-digit display. |
| Limit value | Free setting |
| parameter settings | Use 3 buttons |
| unit | mm, the default unit is m. |
| weight | About 1.35kg |
| Non-liquid parts material | |
| Connector | 1NPT, stainless steel, length 20mm (materials and joint specifications can be customized according to customer requirements). |
| Electrical connections | Make the waterproof connector and air hole cable entrance comply with EN 175301 -803A standard |
| Measurement period | ≤ 100ms |
Ordering information
| KUS | Model | Output | Max range | Description |
| 550 | ||||
| Customized | ||||
| SW | Switch Output | |||
| mA | 3 wire 4-20mA output | |||
| 10V | Output is Vout 0-10V | |||
| 5V | Output is Vout 0-5V | |||
| 3V | Output is Vout 0-3V | |||
| RS485 | Output is RS485 | |||
| TTL | UART TTL output | |||
| XX m |
XX m is the maxim range can be detected Default is 2.5m |
|||
| KUS | 550 | RS485 | 2m | |
Selection reminder: For special requirements, please contact our company and indicate in the order.
Precautions:
1. If you need to calibrate the meter, please contact our company. Non-professionals are not allowed to calibrate the meter.
2. When calibrating the meter, please turn on the meter first, and calibrate it after 1 hour of constant temperature.
