Product Introduction

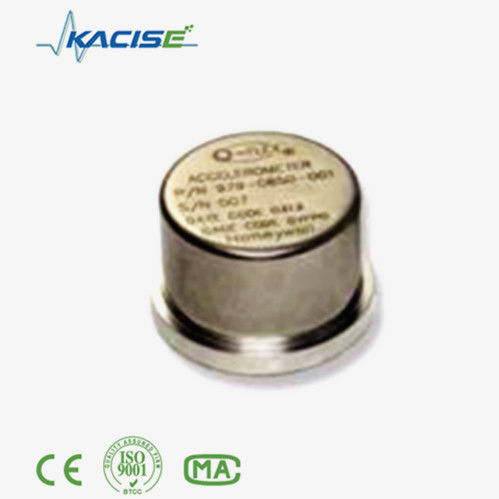

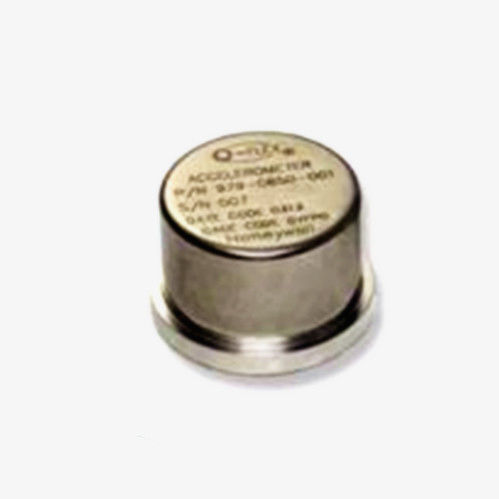

The QA-650 Accelerometer is a product for complex environments.High quality portable accelerometer with analog output, built-in test, field adjustable range for rugged environments.Greatly improve the use of users, improve the work efficiency.This portable QA-650 Accelerometer features tactical navigation levels for maximum operational capability.This product is widely used in navigation, bridge detection, automotive braking and other aspects.
Product Features
Advantages
• Tactical navigation
• High performance
• Complex environment
• Analog output function
• Portable design
• Built-in test functionality
• Field adjustable range
• Test automotive instruments
• Deceleration braking system
• Bridge tilt monitoring
• Robot control
• Vehicle navigation
• Train comfort control
• Offshore drilling instrument monitoring
Product Specification
| Performance | |
| Input Range[g] | ±30 |
| Bias[mg] | <15 |
| One-year Composite Repeatability[µg] | <2500 |
| Temperature Sensitivity[µg/℃] | <100 |
| Scale Factor[mA/g] | 1.20 to 1.40 |
| Electrical | |
| Quiescent Current per Supply[mA] | <16 |
| Quiescent Power[mW]@±15VDC | <480 |
| Input Voltage | ±13 to ±18 |
| Physical | |
| Weight[grams] | 51 Nominal,65 Max |
| Diameter below mounting surface[inches] | Ø1.045 ±0.005 |
| Height - bottom to mounting surface [inches] | 0.617 Max. |
| Case Material | 300 Series Stainless Steel |
Configuration Drawings
Compamy Information
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards. We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality. Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
