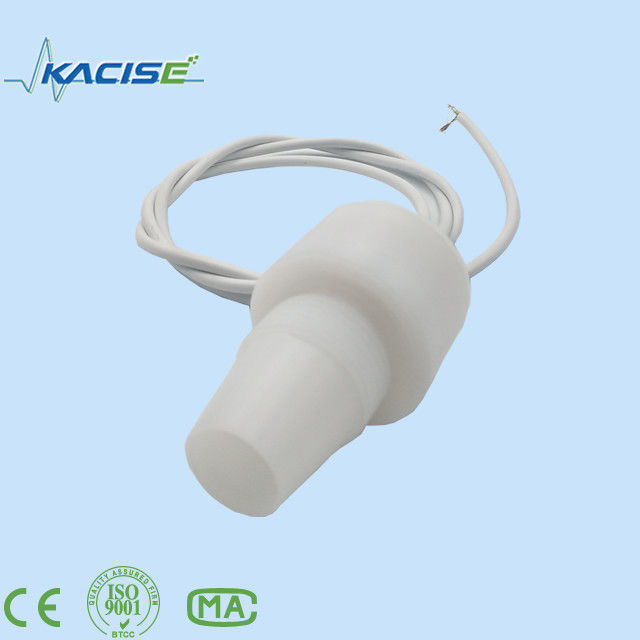

KUS600B 0.2mA Low Power Consumption Ultrasonic Transducer Sensor
1. Product features:
2. Product Description
The KUS600B product has low power consumption, supports serial port wake-up, supports sleep state, and the power consumption in sleep state is as low as 0.2mA.This product is made of PVDF material, which increases the use effect of the product.The range is 300-- 3000mm, which greatly improves the working distance and provides users with convenience in application selection.At present, this product is widely used in petroleum, robot, filling liquid products measurement.
3. Dimensions
4. Electronic interface and signals definition
| Cable color | Pin | Description | Note |
| Red | 1 | Power supply | |
| Black | 2 | GND | |
| Yellow | 3 | Analogue output | The 600B will work in mode 1 or 0 cannot work in power save mode, if the 4-20mA, 0-3.3V 0-5V analogue output used. |
| Blue | 4 | RS485A+ | TTL-TXD for ttl output signal |
| Green | 5 | RS485B- | TTL-RXD for ttl output signal |
For switch output
| Cable color | Pin | Description | Note |
| Red | 1 | Power supply | |
| Black | 2 | GND | |
| Yellow | 3 | Switch output | Load current 1A@60V |
| White | 4 | Switch output | |
| Brown | 5 | RS485A+ | TTL-TXD for ttl output signal |
| Green | 6 | RS485B- | TTL-RXD for ttl output signal |
5. Parameters
General specifications
|
Model:600
|
|

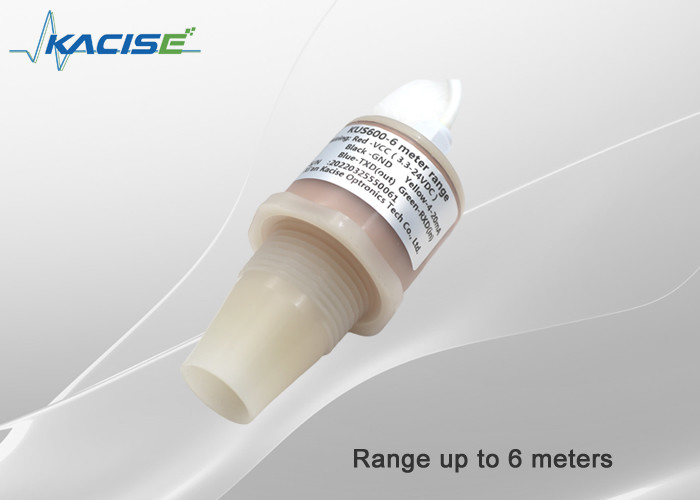

| Sensing range | 0.6m-5m Low-power products also support wide voltage input, this range is 3.3V power supply range (customers can customize 6m range products) |
| Adjustment range | 0.3….3m |
| Unusable area | 0 ...0.3m |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx.220 kHz |
| Response delay | approx. 10 ms |
Electrical specifications
| No-load supply current I0 | ≤ 20 mA active period ≤0.3mA during sleep time |
| Electrical connection | 5-core cable (analog output), 6-core cable (switch output)； |
| Ranging resolution | 1mm； |
| Measurement accuracy |
≤1 %F.S. |
6. Application
7. Ordering information
| KUS | Body size | OUTPUT | Max range | Description | |
| 600 | |||||
| Customized | Customized | ||||
| 4-20mA | 4-20mA mode output with RS485 MODBUS protocol | ||||
| 0-3.3V | The power supply range is 3.3 at least | ||||
| 0-5.0V | The power supply range is 5.0 at least | ||||
| RS485 | Power save mode with RS485 MODBUS protocol | ||||
| XX m | XX m is the maxim range can be detected, the default length is 1 meter | ||||
| KUS | 600 | RS485 | 3m | ||
