Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
ได้รับการรับรอง:
certificate of explosion-proof, CE
Model Number:

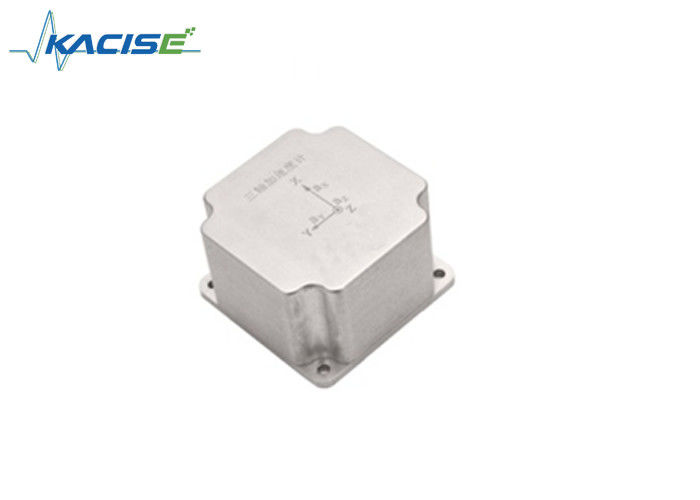

K-3JSJ-100
☆Digital RS422 output
☆Wide measuring range, nonlinear correction
☆Whole temperature range compensation
☆impact resistance
☆petroleum drilling machine
☆seismic detection
| Type | K-3JSJ-100 | ||
| Electric character | |||
| Input voltage | 10~30 VDC | ||
| Input current | ≤ 70 mA | ||
| Output Mode | RS 422 V | ||
| Baud Rate | 115200 bps | ||
| Output Data Rate | 200 Hz | ||
| Output Data format | 16-bit twos complement | ||
| Performance index | |||
| Axial direction | X | Y | Z |
| Range | ±2 g | ||
| Bandwidth | ≥50 Hz | ||
| Resolution (°/s) | 0.002 g | ||
| Nonlinear (%FS) | ≤ 0.5% Fs | ||
| Bias | ≤ 0.01g | ||
| Start-up time (ms) | ≤1s | ||
| Environmental characteristics | |||
| Temperature (°C) | -40℃~+70℃ | ||
| Storage Temperature | -40℃~+125℃ | ||
| Resistant to shock | 4000g | ||
| Physical Characteristics | |||
| Weight (g) | 150 g | ||
| Dimensions | 55×55×35 mm | ||
Note: Range can choose ±2～±70g；
Bandwidth can choose ≤400 Hz
