Place of Origin:
CHINA
ชื่อแบรนด์:
KACISE
ได้รับการรับรอง:
CE
Model Number:
KUS-M56
วิดีโอ
วิดีโอ

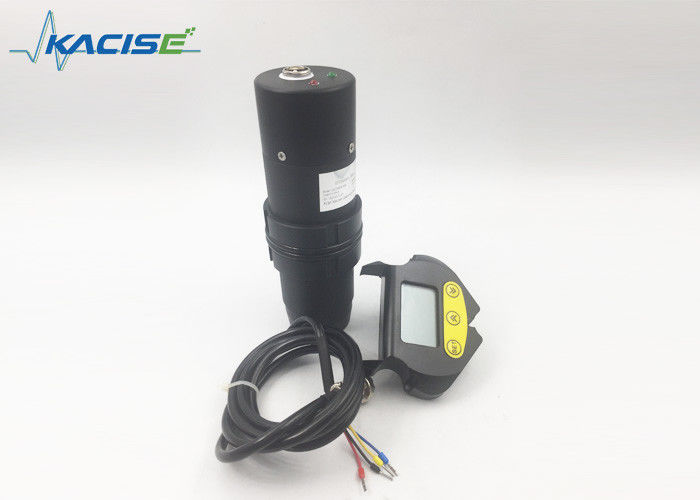

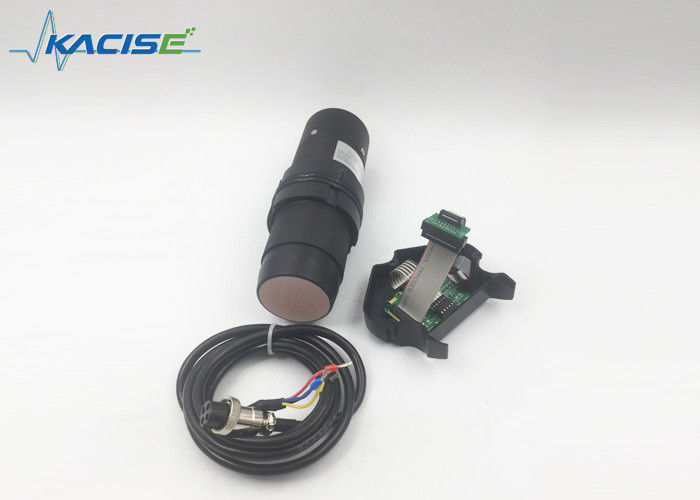

LED Display Digital Rs485 Rs232 Ultrasonic Distance Level Sensor
1,Features
Non-contact
Short response time
Digital tube display
Various output optional: switch, analog, or RS485
2,Introduction
3,Principle
Transmitting ultrasonic transducer emits ultrasonic pulses propagated to the measured media through communication media, through reflection and then return to the receiving transducer through the acoustic medium, the measured ultrasonic pulse propagates from the transmitter to the receiver in the acoustic medium of time. Then according to the speed of sound in the acoustic medium, it can be considered from the transducer to the media surface distance. To determine the liquid level. Therefore, we can calculate the distance from the probe to the reflecting surface D = C * t / 2 (divided by 2 is because the sound waves from the transmitter to the receiver is actually a round, D is the distance, C is the speed of sound, t is the time).
4,Dimensions
5,Parameters
| Range | 0.1~0.5m,0.15~1m,0.3~3m,0.4~5m,0.5~6m |
| Resolution | 3mm or 0.1%(which is bigger) |
| Response time | < 200ms |
| Display | LED |
| Emission angle | 20° |
| Analog output | 4～20mA/500Ω LOADING |
| Switch output | Relay(optional) |
| RS232/485 | MODBUS protocol or customized protocol (optional) |
| Power supply | Standard 24VDC (±15%) |
| Ambient temperature | -20～+60℃ |
| Protection Class | IP65 (IP66 is optional) |
| Installation | M56*2 |
| Note: Only one output can be chose among the three kinds of outputs. | |
