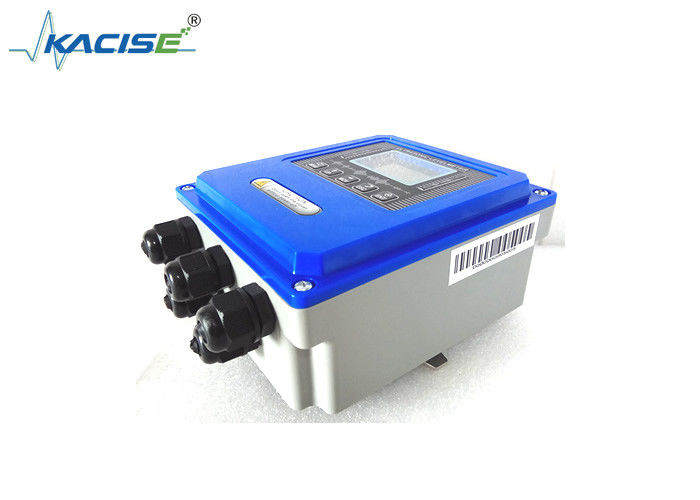

Wall Type Ultrasonic Flowmeter With Non Contact Clamp On Sensor For Liquid Flow Measure
Introduction
The KUFS2000 series ultrasonic flow meter can be installed on the wall or in instrument box, suitable for pipe sizes from DN25mm to DN6000mm.
Features
High accuracy
1%
Wide range of flow rate and pipe diameter
Suitable for the pipe with DN15 to DN6000
High reliability
Working life is up to 10 years
Robust design
Differential signal driver and receiver, immune to low frequency transformer and TV signal and transmission
Huge storage function
Support 512 days and 128 months and 10 years accumulated flow result, auto save 64 times power on and off time and flow rate. Auto save 32 days work status of the meter
Remote transmission and net work transmission
RS485 interface support Mod-bus protocol and easy to support GPRS or Zigbee networking
Easy to used for calorimeter
Can be used as calorimeter after the temperature sensor is installation
| Accuracy | ±1% |
| Velocity Range | 0~±10m/s, Bi-directional measurement |
| Pipe Size | DN15~DN6000 |
| Temperature | - 30~160℃ |
| Type of Liquid | Single liquid can transmit sound wave. such as water, sea water, sewage, oil, chemicals , alcohol, etc |
| Pipe Material | Carbon steel, stainless steel 304, stainless steel 316. Flange standard GB/T9119-2000, GB/T81-94 |
| Signal Output |
1 way 4-20mA output(impedance 0~1K, accuracy 0.1%) 1 way OCT pulse output( Pulse width 6 ~ 1000ms) 1 way relay output |
| Signal Input | 3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor. |
| Interface | RS485, support MODBUS |
| Data Storage | SD card regularly store the pre-set results (optional) |
| Power Supply | DC8~36V or AC85~264V |
Sensor selection
Sensor selection depend on the application field parameters such as the diameter of the pipe the fix method
the kind of the flow, please refer to the fix method choice chapter for details.
