Place of Origin:
China
ชื่อแบรนด์:
KACISE
ได้รับการรับรอง:
CE
Model Number:
KCZ-201

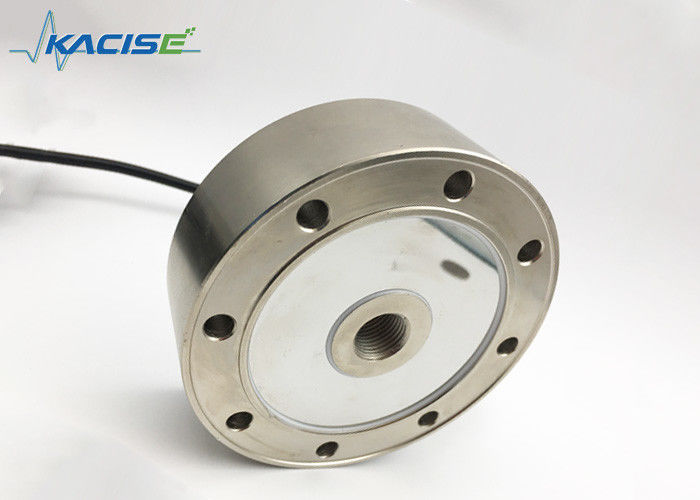

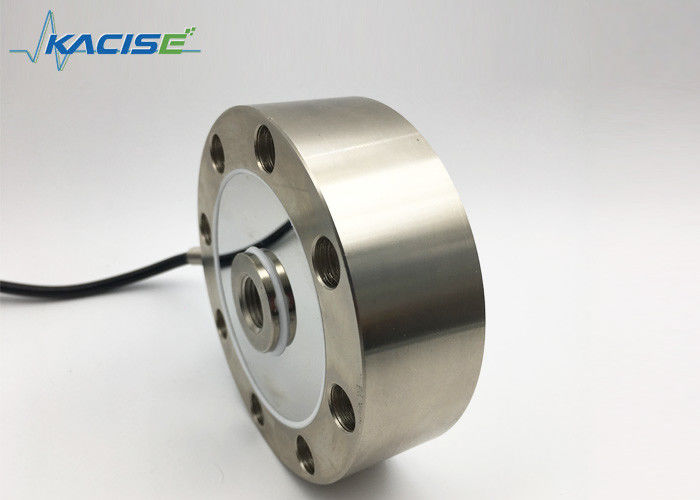

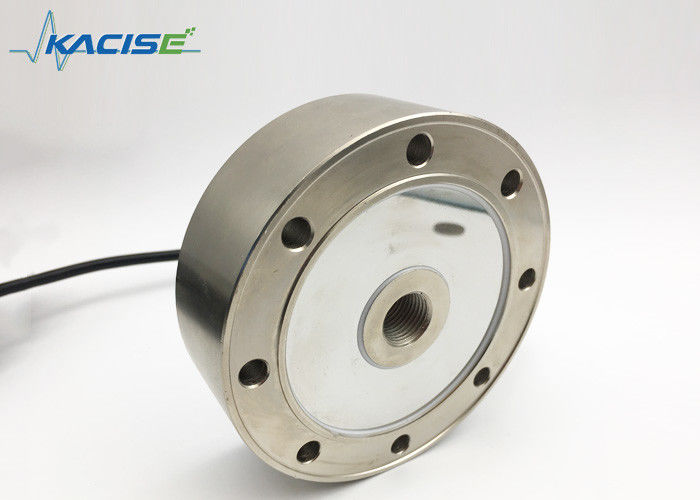

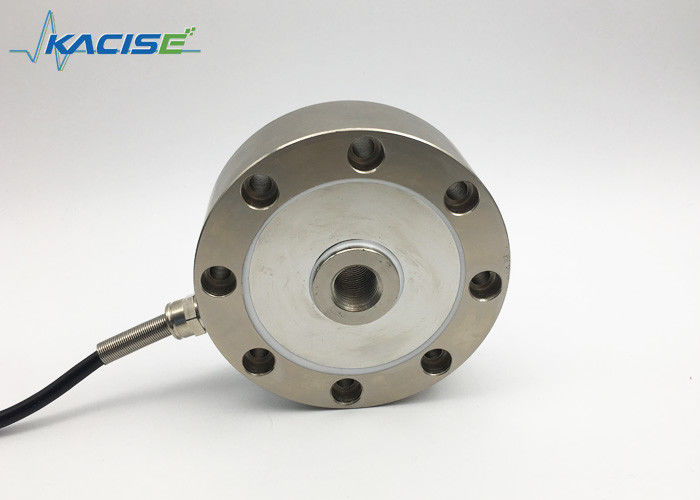

KCZ-201 Spoke load cell
1.Features and Applications
Low profile with small deflection .Made of stainless steel Suitable for automotive press fit, automated assembly, 3CS products testing, new energy product accembly, medical testing, robotics, mold assembly and other industrial testing and controlling system.
2.Technical Specifications
| Capacity | 50, 100, 200, 300, 500kg |
| Rated output | 2.0±0.1%mV/V |
| Zero balance | ±2%F.S. |
| Non-linearity | 0.03%F.S |
| Hysteresis | 0.03%F.S |
| Repeatability | 0.03%F.S |
| Creep (30min) | 0.03%F.S |
| Temp.effect on output | 0.03%F.S/10℃ |
| Temp.effect on zero | 0.03%F.S/10℃ |
| Input impedance | 780±20ohm |
| Output impedance | 700±10ohm |
| Insulation | ≥5000M ohm/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60℃ |
| Operation temp range | -20~80℃ |
| Safe overload | 150%F.S |
| Ultimate overload | 200%F.S |
| Cable size | Φ5x4000mm |
| IP class | IP69 |
| Capacity | 50, 100, 200, 300, 500kg |
| Rated output | 2.0±0.1%mV/V |
| Zero balance | ±2%F.S. |
3.Dimensions and Connection
4.Mounting dimension
| Cap (t) | A | B | C | D | E | F | G | H | J | K | M |
| 0.11~1.76 | 133.4 | 76.2 | 25.4 | 15.4 | 30.7 | 30.2 | 57.7 | 14.2 | 13 | 20.6 | M12 |
| 2.2 | 136.7 | 76.2 | 25.4 | 18.4 | 36.8 | 36.6 | 55.6 | 16.6 | 13 | 12.5 | M12 |
| 4.4 | 171.5 | 95.3 | 38.1 | 21.4 | 43.9 | 432.9 | 73.8 | 22.9 | 20.5 | 22.2 | M20 |
