Place of Origin:
Shaanxi, China (Mainland)
ชื่อแบรนด์:
KACISE
ได้รับการรับรอง:
CE,ISO
Model Number:
KWS-900
KWS-900 online residual chlorine Sensor user manual
Introduction

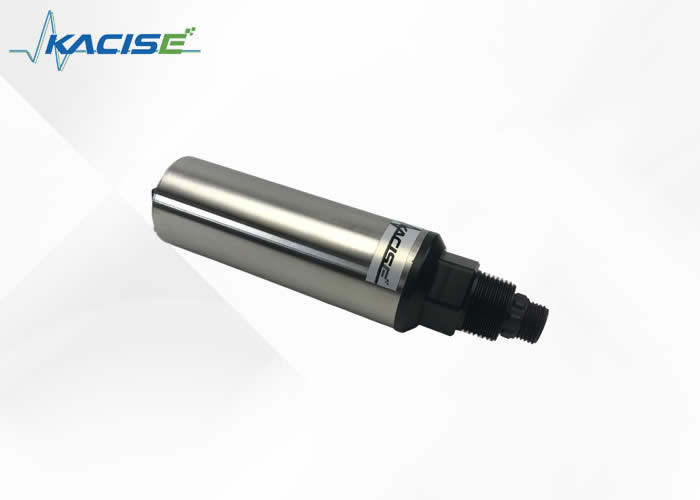

Kacise applies fiber technology to the turbidity sensor to make the sensor has better repeatability and stability, not susceptible to ambient light coordination. The sensor's automatic cleaning brush effectively eliminates air bubbles and reduces the effects of contamination on the measurement. Long-term online use, longer maintenance intervals and better stability.
Feature
Technical Specifications
| product | Fiber turbidity sensor | Self-cleaning turbidity sensor |
| principle | 90° scattered light | |
| Measuring range | 0-1000NTU | |
| Resolution | 0.1NTU | |
| accurate | 0.3NTU | |
| Protection level | IP68 | |
| Deepest depth | Underwater 60 meters | underwater 10 meters |
| temperature range | 0 ~ 50℃ | |
| Output | Support RS-485, MODBUS protocol | |
| Power supply | DC 5~12V, current <50mA | DC 5~12V, current <50mA (when not cleaned) |
| size | Φ22mm*120mm | Φ33mm*156mm |
| Probe cable length | 10 m, customizable 5 m, 15 m and 30 m cable | |
| product material | POM | |
| Self-cleaning system | exist | No |
| Optical window | optical fiber | |
Applications
Kacise Sensing applies fiber technology to the turbidity sensor to make the sensor
Better repeatability and stability, not susceptible to ambient light. coordination
The sensor's automatic cleaning brush effectively eliminates air bubbles and reduces the effects of contamination on the measurement.
Long-term online use, longer maintenance intervals and better stability.
Feature
Digital sensor, RS-485 output, support MODBUS, with automatic cleaning brush, prevent pollution, eliminate air bubbles, strong anti-interference ability, no ambient light and chromaticity, 90° scattered light principle, better fiber technology repeatability.
Company Information
Xi'an Kacise is certified by ISO 9001-2008, GJB 9001B-2009, CE, intrinsic safety explosion-proof and isolated safety explosion-proof, etc. which assure our products are conform to the international standards.
We have been specializing in manufacturing pressure, level and flow measuring instruments and related products for 10 years. We have experienced technical and management personnel, through the efforts of our entire staff, we have become a professional measuring instrument manufacturer and solution provider. And we are continuously trying to improve product quality.
Currently, Kacise sensor is already exported to America, Spain, Australia, Chile and 20 other countries and regions, and received many favorable feedbacks. Our overseas distributers are also increasing. We regards “reasonable prices, efficient production time and good after-sales service” as our tenet, and hope to cooperate with more customers for mutual development.
