Place of Origin:
China (Mainland)
ชื่อแบรนด์:
Kacise
Model Number:
K-JSJ-400

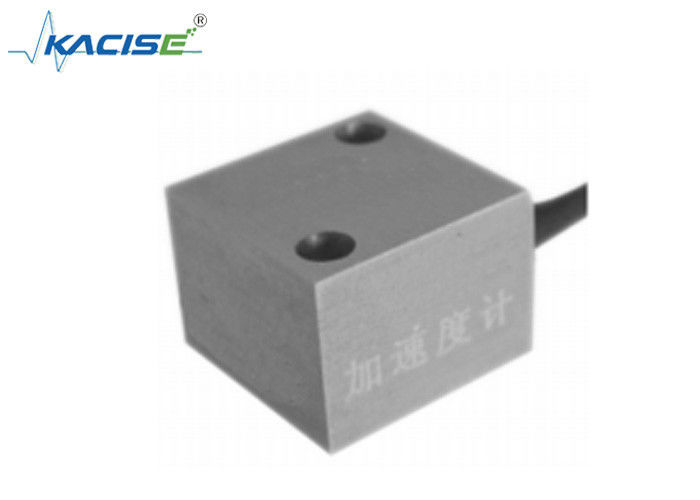

High Reliability High g value and Bandwidth Uniaxial Accelerometer Sensor Module
1. Product Description
An instrument for measuring acceleration, typically that of an automobile, ship, aircraft, or spacecraft, or that involved in the vibration of a machine, building, or other structure.It has functions of analog voltage output, small size, light weight, wide measuring range, impact resistance, vibration performance.
Accelerometer, also known as Acceleration Sensor, is used to measure the force of the accelerated motion. Usually it is represented with the relative ratio of the acceleration of gravity(G). The accelerometers combined with the industry-leading iMEMS technology have the characteristic of high stability, small size, low weight, instantaneous startup, etc. They can be used vibration measurement and static acclivitous angle measurement.
2.Parameter
| Type | K-JSJ-400 |
| Electric character | |
| Input voltage | 10±0.1 VDC |
| Input current | ≤10mA |
| Output Mode | ±1 V |
| Performance index | |
| Axial direction | Z |
| Range | ±2000 g |
| Bandwidth | ≤ 5000 Hz |
|
Sensitivity |
100±30 mV / g |
| Resolution (°/s) | ≤ 0.002 g |
| Nonlinear (%FS) | ≤ 1% Fs |
| Bias | ±0.2 V |
| Start-up time (ms) | ≤1 s |
| Environmental characteristics | |
| Temperature (°C) | -40℃~+70℃ |
| Storage Temperature | -40℃~+125℃ |
| Resistant to shock | 10000g |
| Physical Characteristics | |
| Weight (g) | 45g |

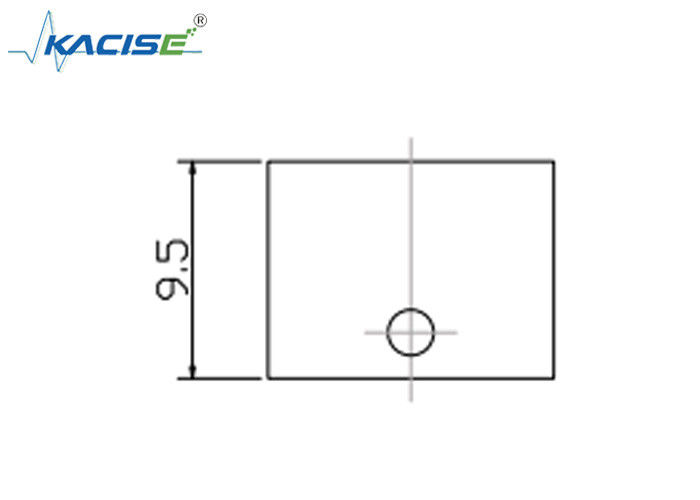

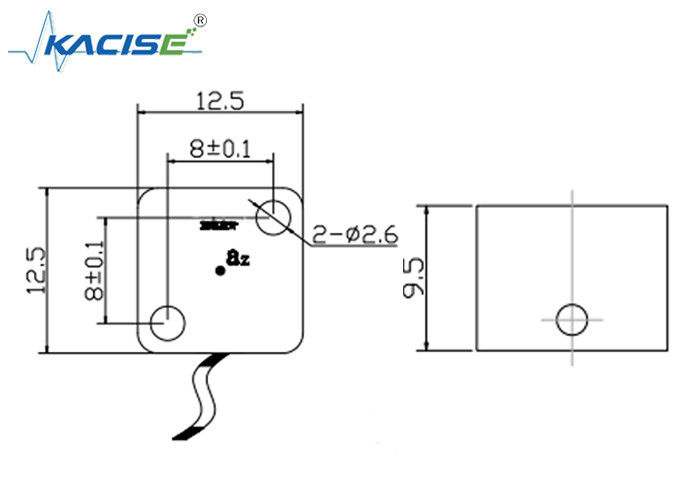

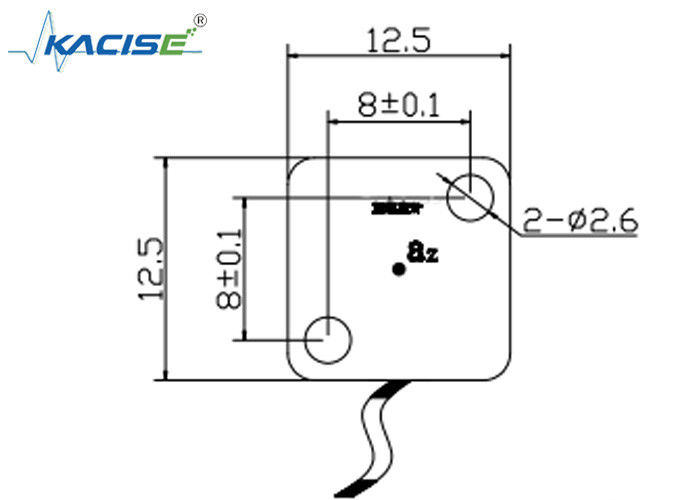

| Dimensions | 12.5×12.5×9.5 mm |
3.Feature
Analog voltage output
High g value and Bandwidth
Small size, light weight
piezoelectric accelerometer
impact resistance, vibration performance
4.Application Field
Measure the overload value g
Linear acceleration measurement
