Place of Origin:
Shaanxi, China (Mainland)
ชื่อแบรนด์:
KACISE
Model Number:
GX-ROB100
วิดีโอ
วิดีโอ

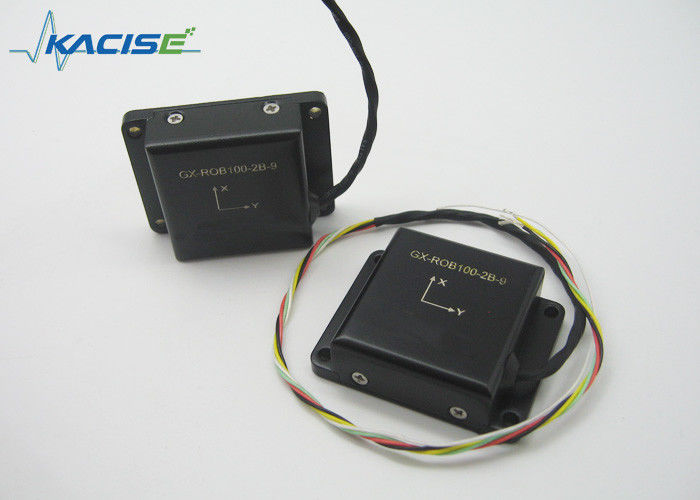

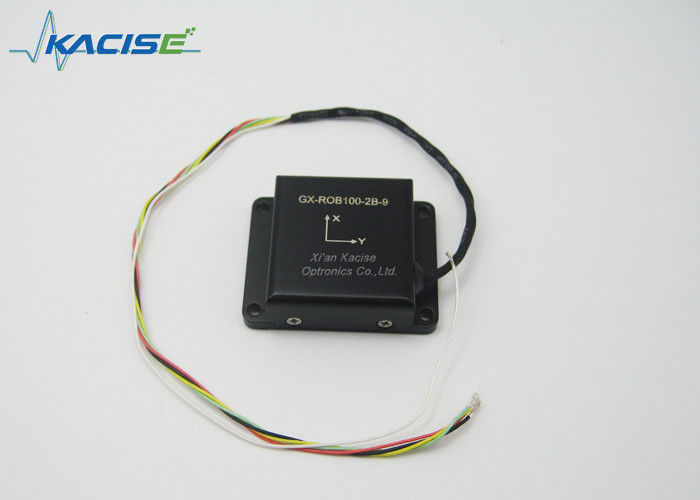

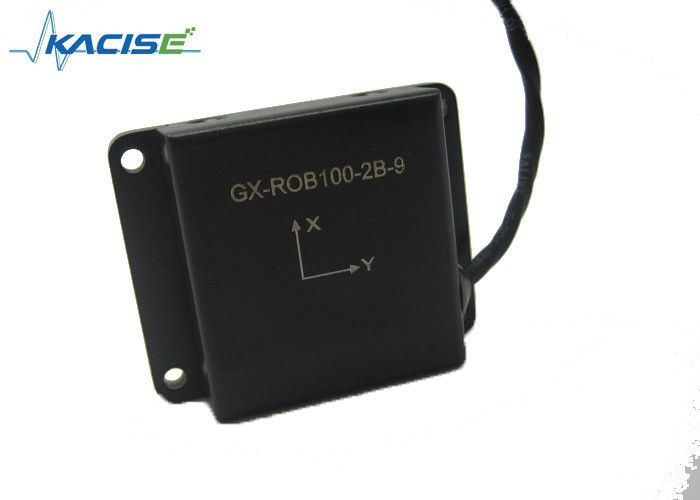

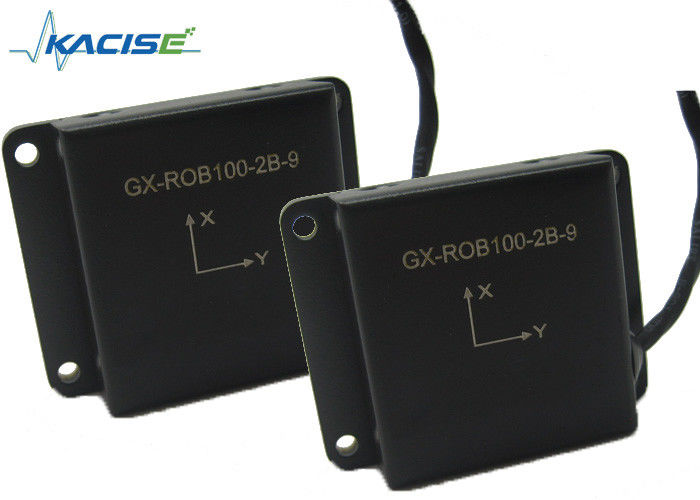

MEMS Gyroscope GX-ROB100 Biaxial inclination Sensor / Biaxial Inclinometer Gyroscopic
Feature
Introduction
Using micro-electromechanical systems (Micro Electro-Mechanical System, MEMS) technology, which combines angular rate and linear acceleration measurement as a whole, for the roll angle, pitch angle, three-dimensional and three-dimensional acceleration angular rate measurements. Attitude angle and angular rate deviation through Kalman filter algorithm to estimate and correct.
Parameter
| Technical parameters | performance indicators |
| Power Requirements | |
| Input voltage (Vdc) | 7.5 ~ 32Vdc |
| Performance | Dip |
| Measuring range (°) | ± 15 ~ ± 90 |
| Bias | ≤ 0.2 |
| Bias stability | ≤ 0.05 |
| Bias Repeatability | ≤ 0.05 |
| Start time (s) | <0.5s |
| Bandwidth | 8-28Hz |
| Resolution(°) | ≤ 0.03 |
| Nonlinearity (% FS) | <0.05% of FS |
| Data refresh rate | 50ms |
| Inter face | RS422 interface |
| Working Temperature | (℃) -40 ℃ ~ +85 ℃ |
| Storage Temperature | (℃) -55 ℃ ~ +100 ℃ |
| Resistance Acceleration(g) | 20000 |
| Weight (g) | <150 |
| Volume (mm3) | 48 * 36 * 15 |
Products should be installed to ensure that X (Y) axis and the measurement reference axis coincides, installation error should be less than 5 '.
Application
1). Angle measuring instruments,
2). Level measurement platform,
3).Platform level control,
4). Measuring instruments and heavy mechanical stability,
5). Acceleration and motion measurement,
6). Automotive control, inertial navigation,
7). Seismic monitoring and other measurement systems
Company strength
1. Through the ISO9001: 2008 quality system certification, access to a number of patent certificates and software copyrights
2. And Xiamen University, Chinese Academy of Sciences Institute of Acoustics, 715, Ha Engineering underwater acoustic college and many other colleges and universities,Scientific research unit cooperation
3. Products in the Northwest Industrial Group, Hainan Airlines Co., Ltd., are widely used
4. China's largest sensor, flowmeter production base
Application
Our Advantage
1. 100% real photos--Detailed images, detailed description
2. 7*24 hours online--Efficient service, Professional answers
3. After the receipt of the goods if the quality problems can be returned(Not artificial damage, Never used)
4. OEM is available; small quantities, mixed bulk orders are also welcome;
5. Payment: L/C, T/T, Paypal , Western Union, MoneyGram;
6. Delivery way: UPS, DHL, TNT, FEDEX, EMS, CHINA POST.
7. The sale of products within one year warranty and life time maintenance.
