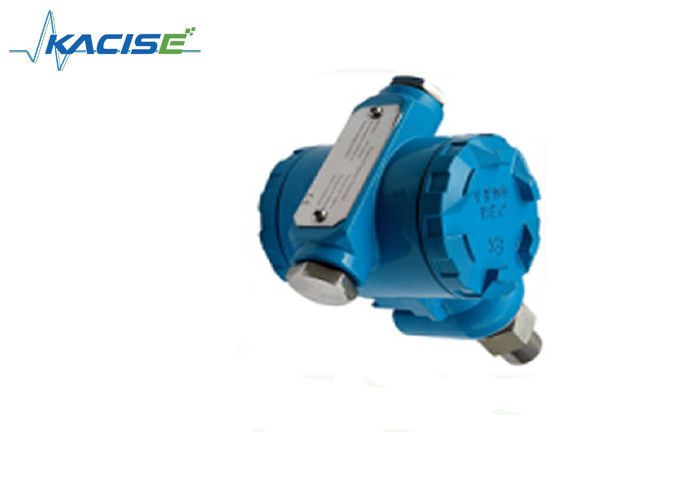

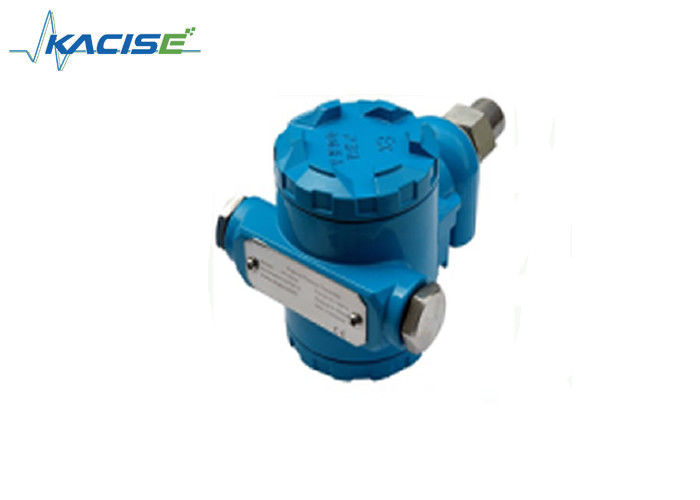

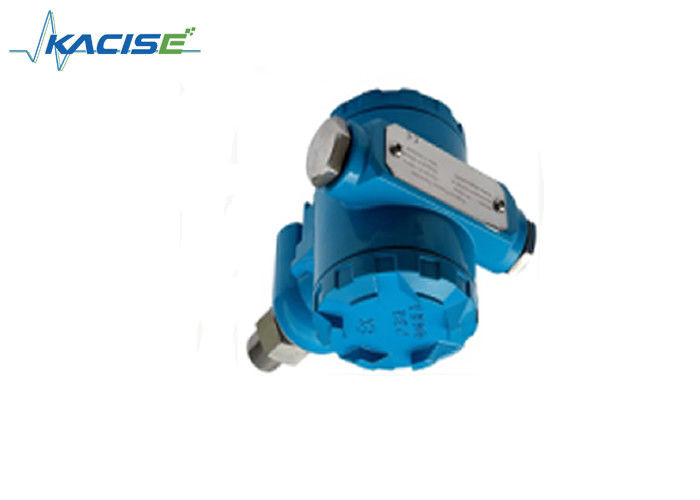

GXPS605 Series Pressure Data Logger Storage Pressure Transmitter

Application

• Fire-fighting detection
• Experiment pressure monitoring
• Chemical metallurgical

Feature

• Diffused-silicon core
• Digital record 10000 pieces massage
• USB/RS485 output
• Battery power, low consumption
• Man-machine interface

Introduction

Smart Pressure memory is an intelligent, high-precision, high reliability, high stability of

the product. GXPS605A is designed for fire monitoring pipeline pressure, monitoring the

pressure changes in status of the fire pipe in 24 hours a day. Can record the scene’s

pressure value, as well as the corresponding time

Through the PC interface to set the record cycle as well as the time of calibration

Battery-powered, the longest working hours up to six months. The GXPS605B memory of

intelligent pressure increase the LCD display on the basis of the GXPS605A, mainly applied to

the field or power supply is not convenient occasion, to facilitate the implementation of the

monitoring records and displays the pressure value of the monitoring process.

Electronic interface and signals definition

Parameter

Ordering information

GX-Type-Range-Output-Power-Pressure port-Electric connection-Cable length-Package

1. Type: PS605A=USB Output, PS605B=RS485 Output,
2. Range: 0~2MPa…100MPa = the upper limitation of the range
3. Output:: U=USB, RS4=RS485
4. Power: D1=9VDC Square battery, D2=3.6VDC Primary Li battery
5. Pressure port : M=M20×1.5, G2=G1/2, N2=NPT1/2
6. Electric connection: U=USB standard outlet , J=fixed connecting terminal
7. Cable length: XXm=XX meter 1-150m
8. Package: Bb, Foam
